Motorola TETRA MTH800 - Removing and Installing the Back Housing; To Remove the Back Housing from the Unit

MAINTENANCE MTH800 TETRA Handportable Terminal / Basic Service Manual 6 - 9
1. Slide the tooth-shaped tip into location.
2. Snap the tip into location.

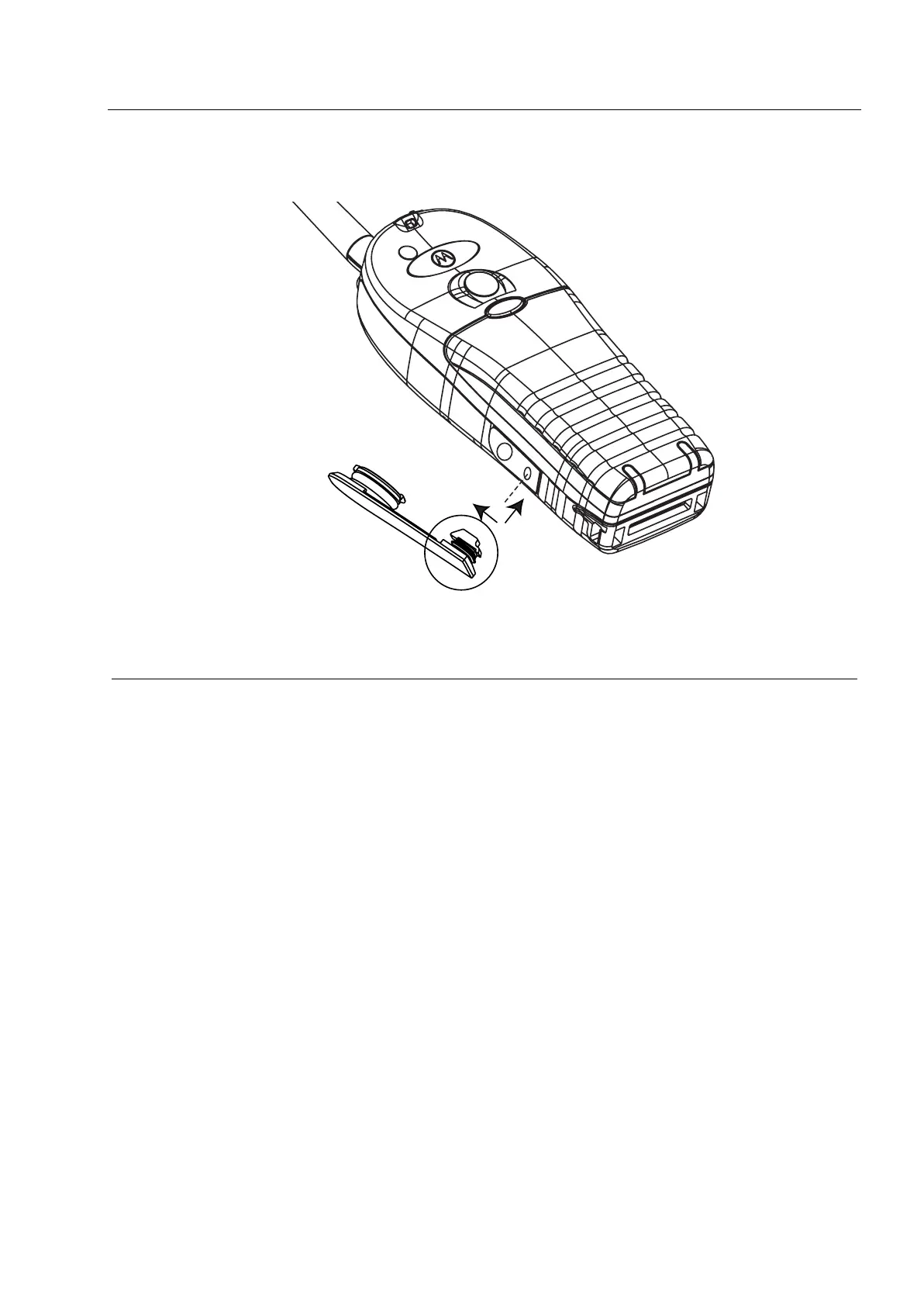

Figure 6 Audio Assembly Cap Removal and Installation
Removing and Installing the Back Housing
Recommended tools: T-8 Torx bit, Torx driver, mini flat-tip screwdriver
To remove the back housing from the unit
(See Figure 7)
1. Remove the antenna.
2. Remove the battery door and the battery.
3. Place the unit facing down on the clean work area.
4. Using the screwdriver remove the oval label at the top of the unit (Logo label)
and the Tamper Evident label to gain access to all six screws fastening the
back housing. Clean the adhesive remains of the labels using alcohol.
5. Using the Torx driver with the T-8 Torx bit, unscrew the six screws fastening
the back housing. Remove the six washers.
6. Carefully remove the back housing from the unit.
1. Slide
2. Snap
