Disassembly V360
Removing and Replacing the Flip Assembly
1. Remove the battery cover, battery, SIM, antenna, rear housing, and
transceiver board assembly as described in the procedures.
2. Flex the right side of the front housing assembly to allow the flip assembly
hinge to separate from the knuckle (see Figure 9).
050345o

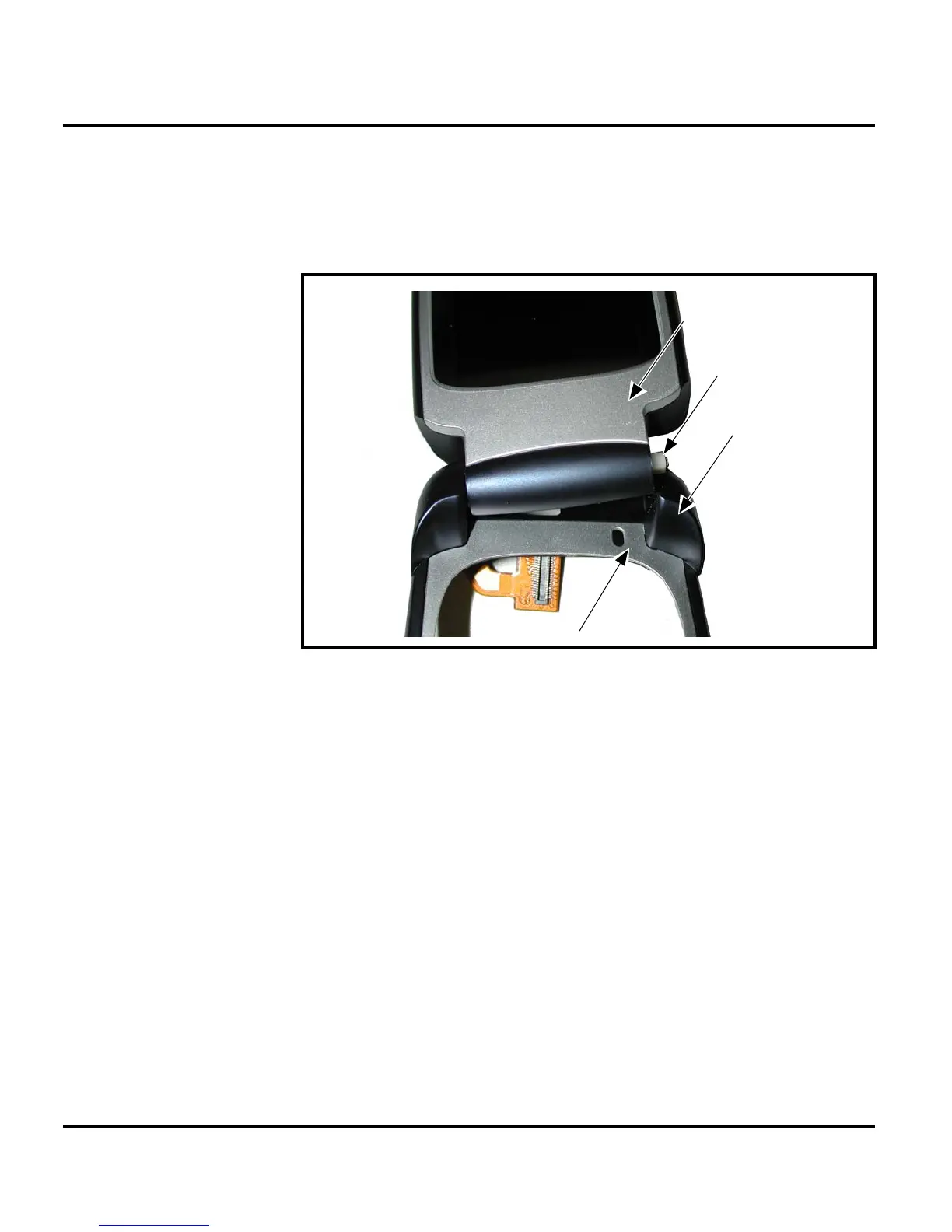

Figure 9. Removing the Flip Assembly
Flip Assembly
Flip hinge
Knuckle
Front Housing
