Motorola V975 Service Manual

Motorola Confidential Proprietary
Manual Test ProceduresLevel 3 Service Manual
2-13
Draft 1.0
Display Test Procedures
This section will describe the proper test procedures to
determine the functionality of the color display.
In order to successfully send test commands to the phone
under test, the phone needs to be in suspend mode.
Follow the listed procedure to place the phone in sus-
pend mode.
Click AT+MODE then SUSPEND
(Serial Only)
Click SUSPEND (USB Only)
Display Backlight Test
Click “FL Off” to disable backlight
Click “FL On-Full” to enable backlight
Verification
Verify that the backlights respond for each issued com-
mand.
LEDS and Keypad Backlight
Display Color Test
Select Eight Color
Box and click “Set”
Verification
Verify that the color pattern on the phone’s display
matches the color box in figure 23. Also verify edges
(uniform/smooth).

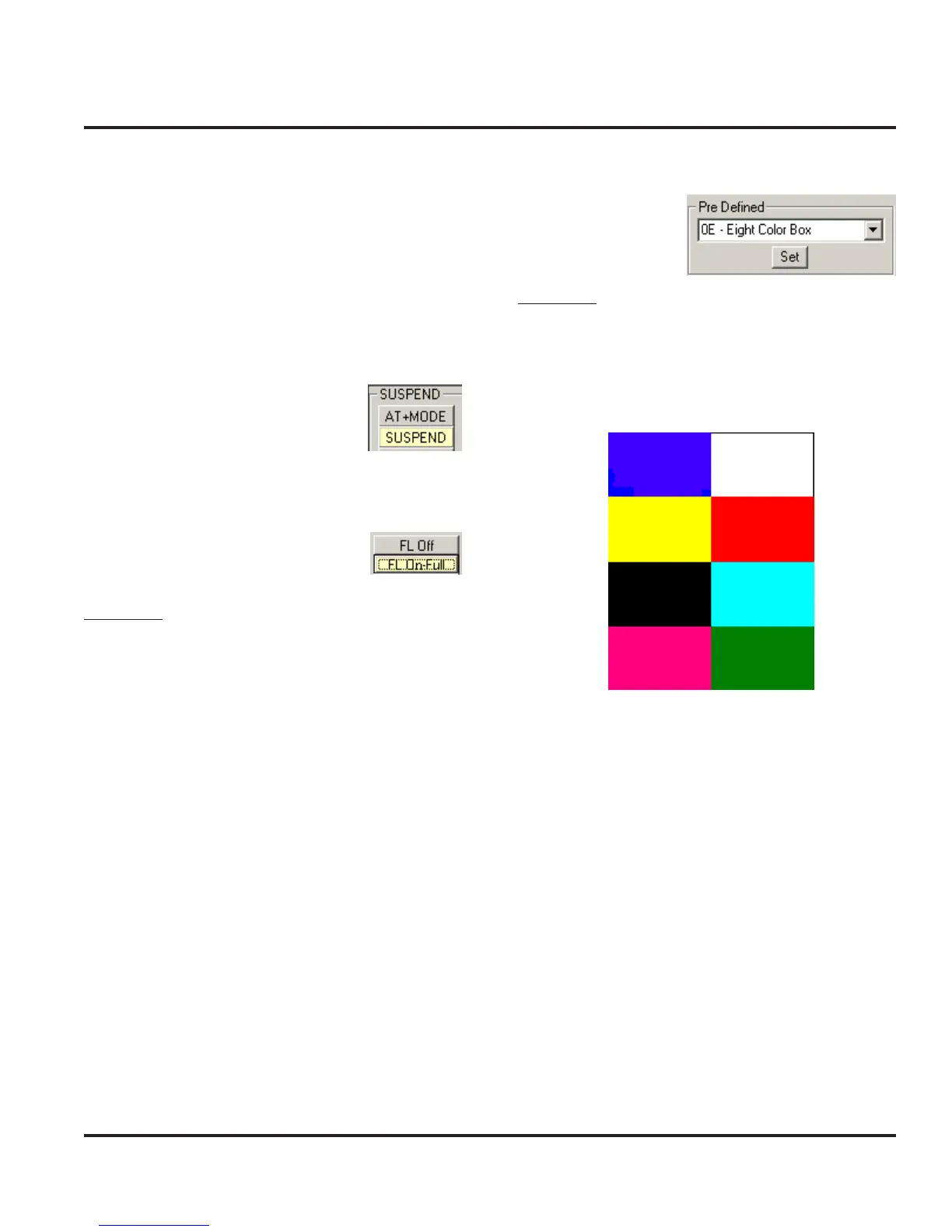

Figure 20. Eight Color Box Pattern
