Movincool CLIMATE PRO 18 - Fan Motor

Operation Section
38

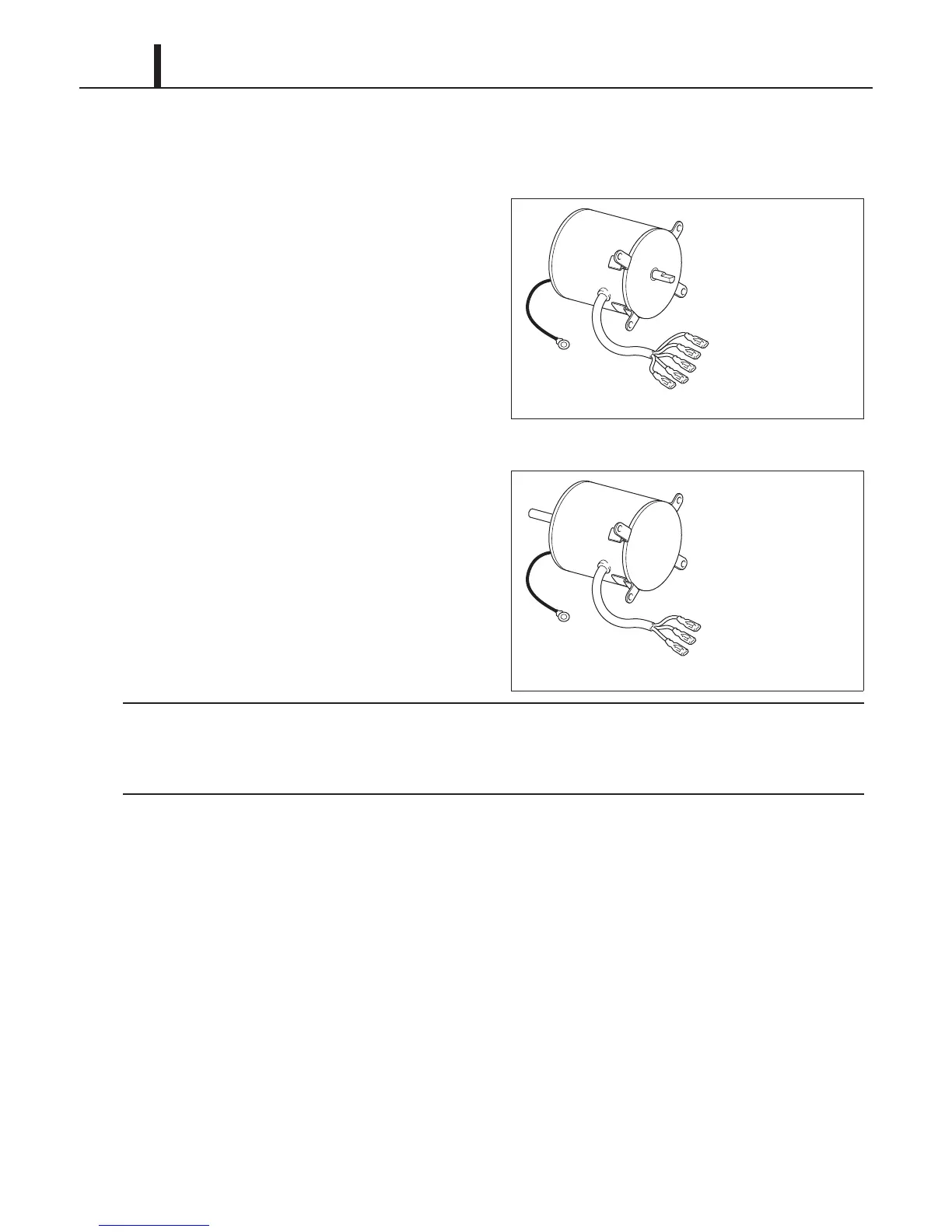

5.4 Fan Motor
(1) Indoor fan motor
• The indoor fan motor is a 1 phase, induction
type 3 speed motor.
Specifications:
- Rated Voltage: 115 V, 60 Hz
- Rated Output: Hi - 115 W, Mid - 44.4 W, Lo -
15.4 W
(2) Outdoor fan motor
• The outdoor fan motor is a 1 phase, induction
type 1 speed motor.
Specifications:
- Rated Voltage: 115 V, 60 Hz
- Rated Output: 127 W
< NOTE >
An internal overload relay is used to protect the fan motor. This relay is built into the fan motor and
interrupts the flow of current when there is an over current situation, or if abnormally high
temperature builds up in the fan motor.
ILL00866-00
CF1-1 (White)
CF1-2 (White/Brown)
RL03-NC (H) (Black)
RL03-NO (M) (Red)
RL04-NO (L) (Blue)
Ground
(Green/Yellow)
ILL00867-00
CF2-1 (White)
CF2-2 (White/Brown)
Ground
(Green/Yellow)
RL09-NO (Black)
