Movincool CLIMATE PRO 18 - Unit Disassembly

Repair Section
70
9. DISASSEMBLY
WARNING
• Disconnect power supply from the unit before performing any service. Beware that some
residual voltage may remain in the unit immediately after the power is disconnected.

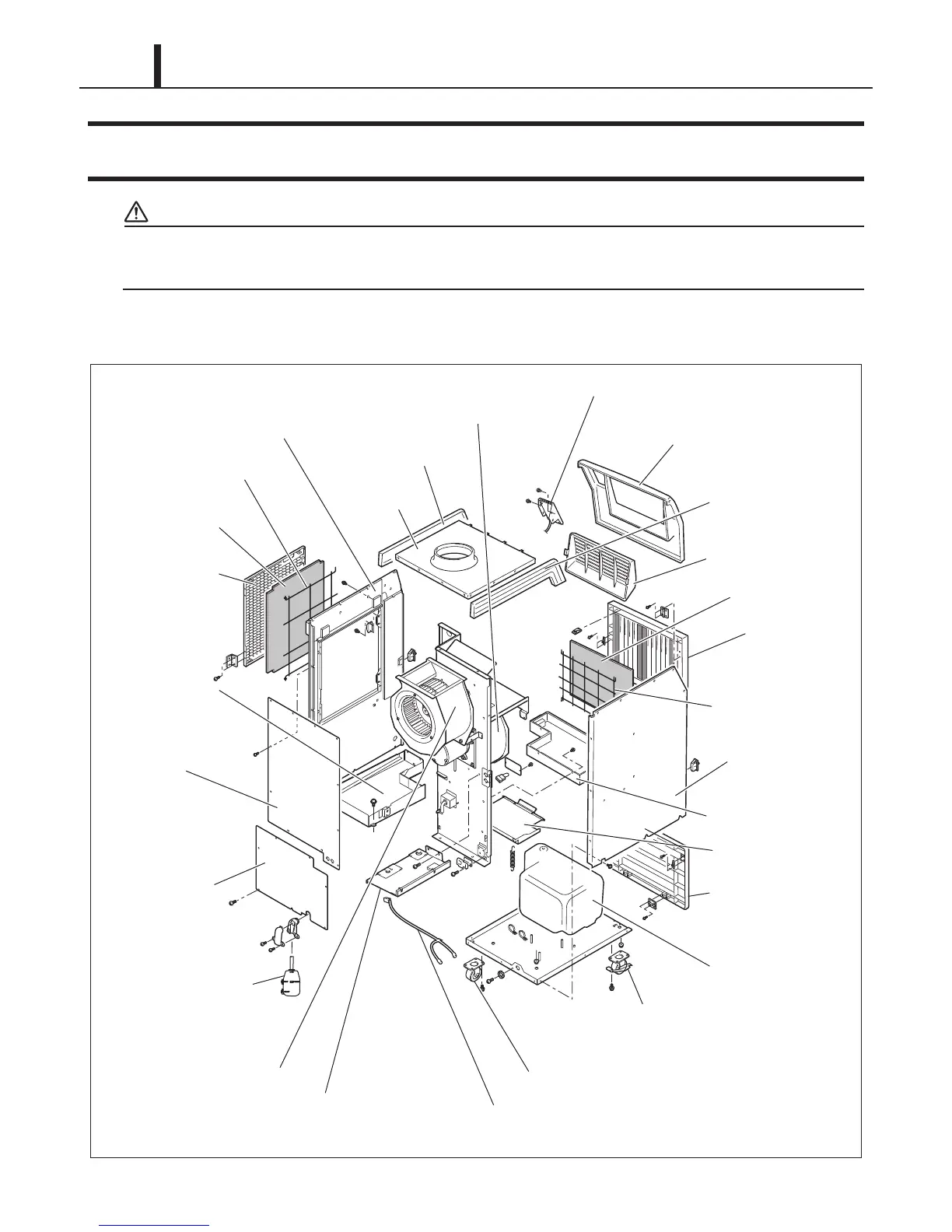

9.1 Unit Parts Construction
ILL00891-00
Left Panel
Front Cater
Rear Caster
Power Cord
Indoor Drain Pan
Outdoor Drain Pan
Drain Tank Cover
Divider Panel for
Outdoor Heat
Exchanger
Drain Tank
Air Outlet Grill
Right Filter Panel
Wire Frame
Top Panel
Right Handle
Upper Front Panel
Control Panel
Drain Tank Base Plate
Service Panel
Drain Switch Wire
Right Panel
Front Filter Panel
Air Filter
Rear Panel
Left Handle
Wire Frame
Blower Assembly
(Indoor Heat Exchanger)
Air Filter
Blower Assembly
(Outdoor Heat Exchanger)
