Repair Section
80

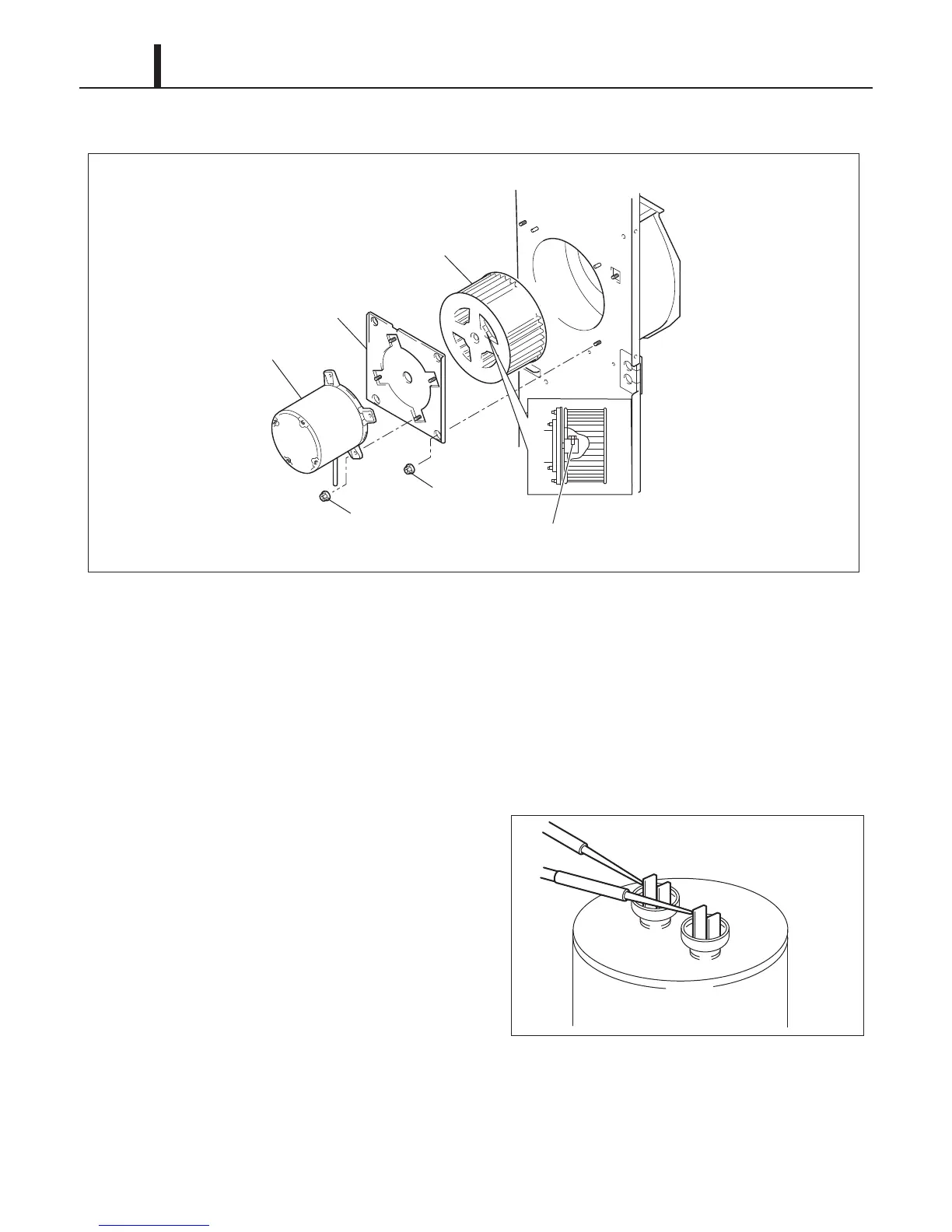

(2) Removal of indoor fan and motor
1) Remove four (4) nuts from the motor stay and take out the motor stay together with the indoor
fan and motor.
2) Loosen the set screw using a hex key. Then remove the indoor fan.
3) Remove four (4) nuts from the motor stay and remove the indoor fan motor.
9.5 Inspection of Capacitor (for Fan Motor and Compressor)
(1) Ohmmeter method
• Set the ohm-meter to the 10M range. Place the
two probes against the two terminals of the
capacitor. At first, the ohm-meter should
indicate small value, then the reading should
gradually increase towards infinity. This
indicates that the capacitor is charging. If the
reading indicates infinity right away (open) or
the ohm-meter fails to move from 0. (shorted),
replace the capacitor.
ILL00909-00
Indoor Fan Motor
Indoor Fan
Motor Stay
Nuts (4)
Nuts (4)
Set Screw
I001808
