Repair Section
79

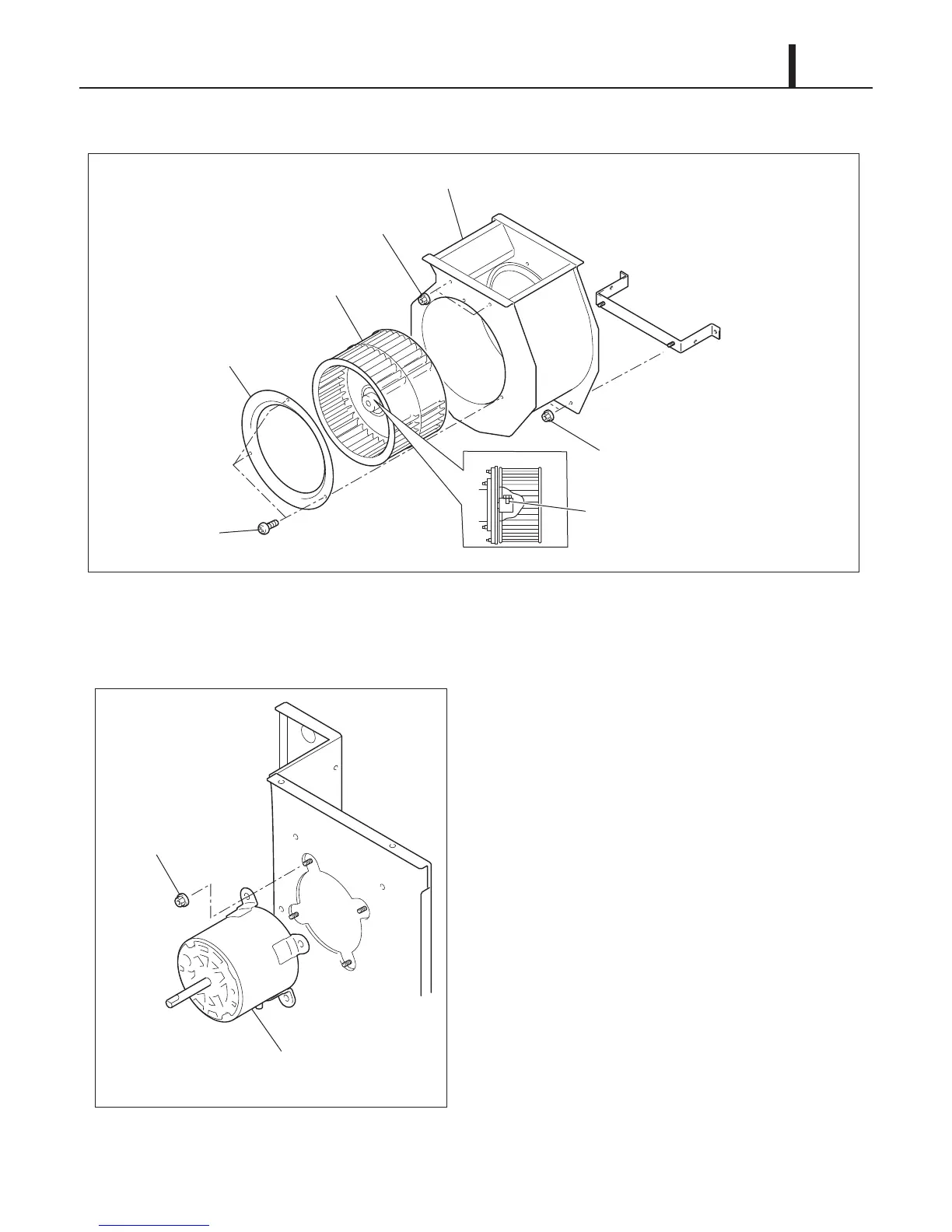

(1) Removal of outdoor fan and motor
1) Remove three (3) screws and take out the ring.
2) Loosen the set screw using a hex key. Then remove the outdoor fan.
3) Remove four (4) nuts and remove the outdoor fan casing.
4) Remove four (4) nuts and remove the outdoor fan motor.
ILL00907-00
Ring
Outdoor Fan Casing
Screws (3)
Outdoor Fan
Nuts (2)
Nuts (2)
Set Screw
ILL00908-00
Outdoor Fan Motor
Nuts (4)
