- 3 -

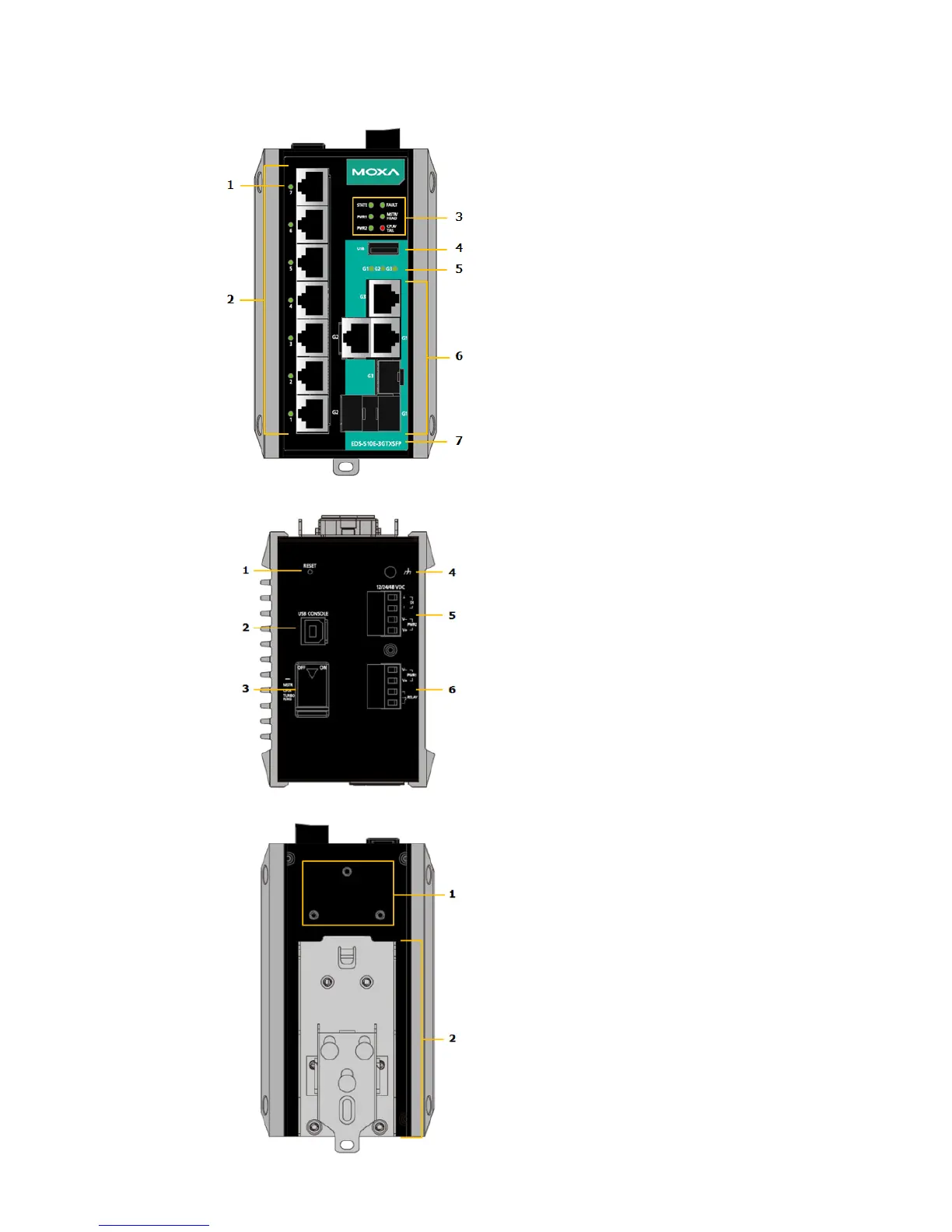

Panel Views of EDS-510E
Front Panel
Top Panel
Rear Panel
Front Panel
1.
1 to 7 port status LED
2.
1 to 7: 10/100BaseT(X) port
3.
System status LED:
STATE LED indicator
PWR1 LED indicator
PWR2 LED indicator
FAULT LED indicator
MSTR/HEAD LED indicator
CPLR/TAIL LED indicator
4.
USB storage port
5.
G1 to G3 port status LED
6.
G1 to G3:
10/100/1000BaseT(X) or
100/1000BaseSFP combo port
7.
Model Name
Top Panel
1.
Reset button
2.
USB console port
3.
DIP switches for Turbo Ring,
Ring Master, and Ring Coupler
4.
Grounding screw
5.
4-pin terminal block for digital
input and power input 2
6.
4-pin terminal block for relay
output and power input 1
Rear Panel
1.
Screw holes for wall mounting
kit
2.
DIN-Rail mounting kit
