USB Console Connection
The EDS-510E has one USB console port (type B connector), located on
the top panel. Use the USB cable (provided in the product package) to
connect the EDS-510E's console port to your PC's USB port and install the
USB driver (available in the software CD) on the PC. You may then use a
console terminal program, such as Moxa PComm Terminal Emulator, to
access the EDS-510E’s console configuration utility.

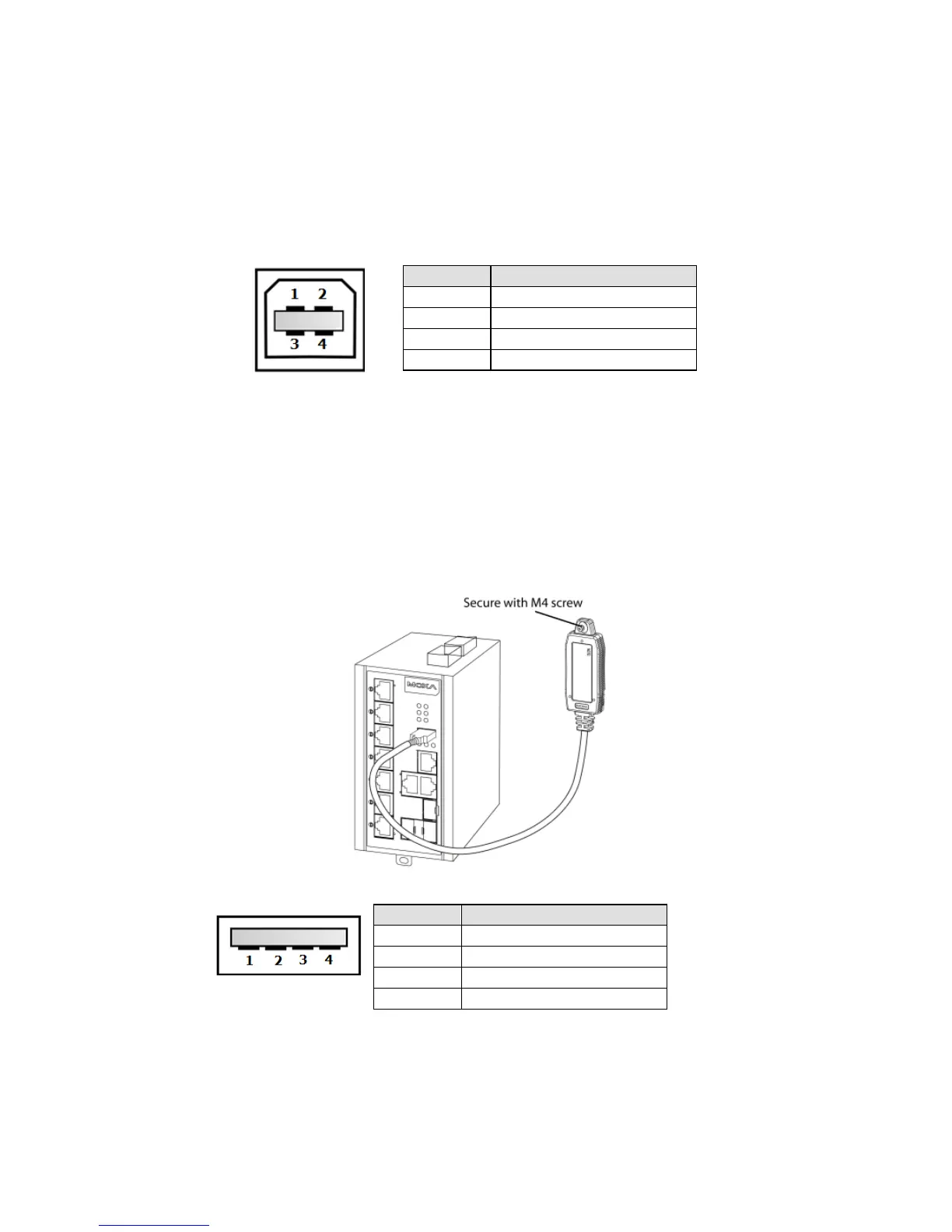

USB Console Port (Type B Connector) Pinouts
Pin
Description
1
D– (Data -)
2
VCC (+5V)
3
D+ (Data+)
4
GND (Ground)
USB Storage Connection
The EDS-510E has one USB storage port (type A connector) on the front
panel. Use Moxa ABC-02-USB-T automatic backup configurator to
connect the EDS-510E's USB storage port for configuration backup,
firmware upgrade or system log file backup.
ABC-02-USB Installation
Plug the ABC-02-USB into the USB storage port of the Moxa EDS-510E.
Securing the ABC-02-USB on the wall with an M4 screw is suggested.
USB Storage Port (Type A Connector) Pinouts
Pin
Description
1
VCC (+5V)
2
D– (Data -)
3
D+ (Data+)
4
GND (Ground)
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) ports located on the EDS-510E’s front panel are
used to connect to Ethernet-enabled devices. Most users configure these
ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are
adjusted automatically depending on the type of Ethernet cable used
