Panel Views of EDS-G500E Series

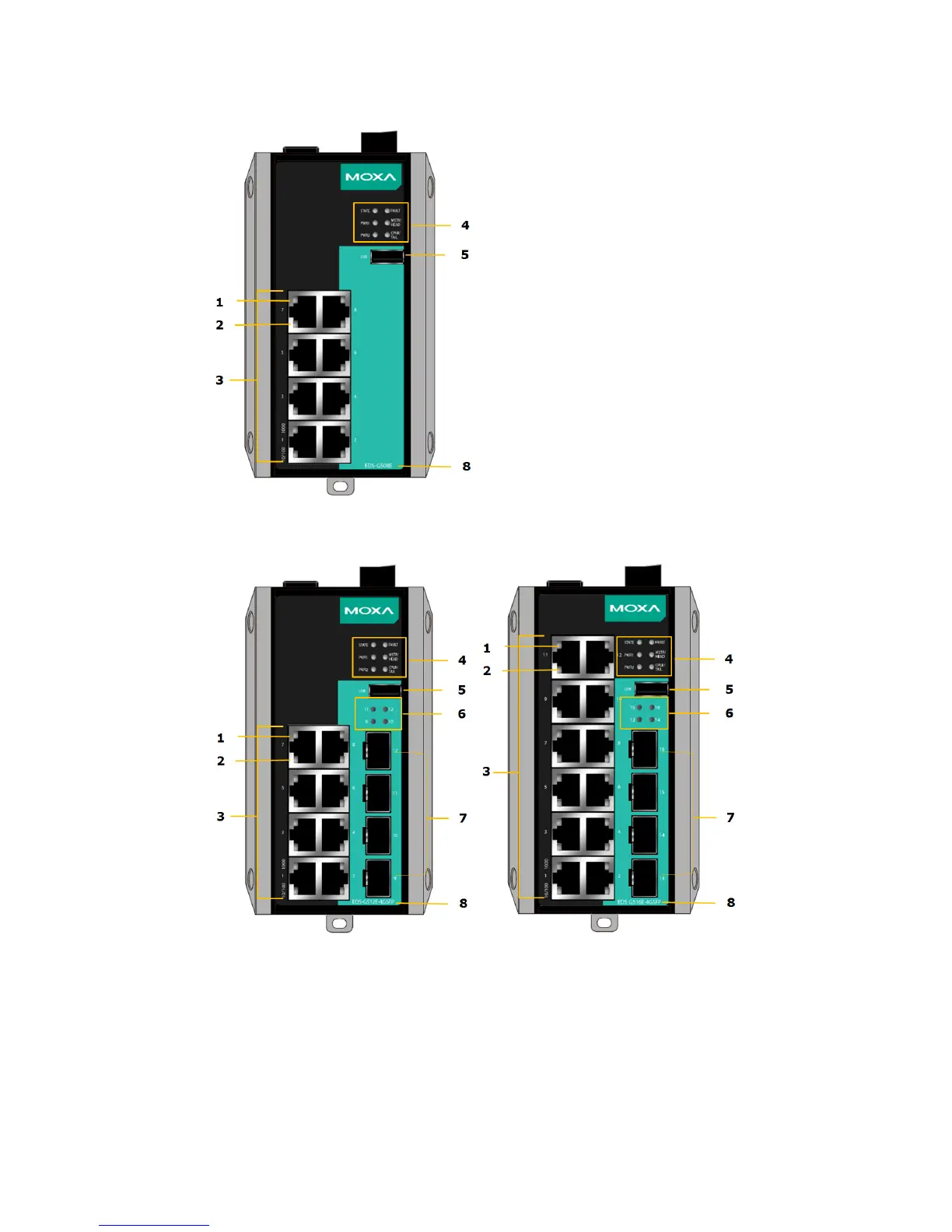

Front Panel
EDS-G508E
EDS-G512E-4GSFP
Front Panel
1.
1000BaseT(X) LED indicator
2.
10/100BaseT(X) LED indicator
3.
10/100/1000BaseT(X) ports
EDS-G508E: 1 to 8
EDS-G512E-4GSFP: 1 to 8
EDS-G516E-4GSFP: 1 to 12
4.
System status LED:
• STATE LED indicator
• PWR1 LED indicator
• PWR2 LED indicator
• FAULT LED indicator
• MSTR/HEAD LED indicator
• CPLR/TAIL LED indicator
5.
USB storage port
6.
SFP port LED indicator
EDS-G512E-4GSFP: 9 to 12
EDS-G516E-4GSFP: 13 to 16
7.
100/1000BaseSFP slots
8.
Model Name
EDS-G516E-4GSFP

Moxa Technologies EtherDevice EDS-G500E Series Specifications

General

Brand	Moxa Technologies
Model	EtherDevice EDS-G500E Series
Category	Switch
Language	English
