Moxa Technologies EtherDevice EDS-G500E Series User Manual

- 6 -
DIN-Rail Mounting
The metal DIN-rail kit is fixed to the back panel of the EDS-G500E series
when you take it out of the box. Mount the EDS-G500E series on
corrosion-free mounting rails that meet the EN 60715 standard.

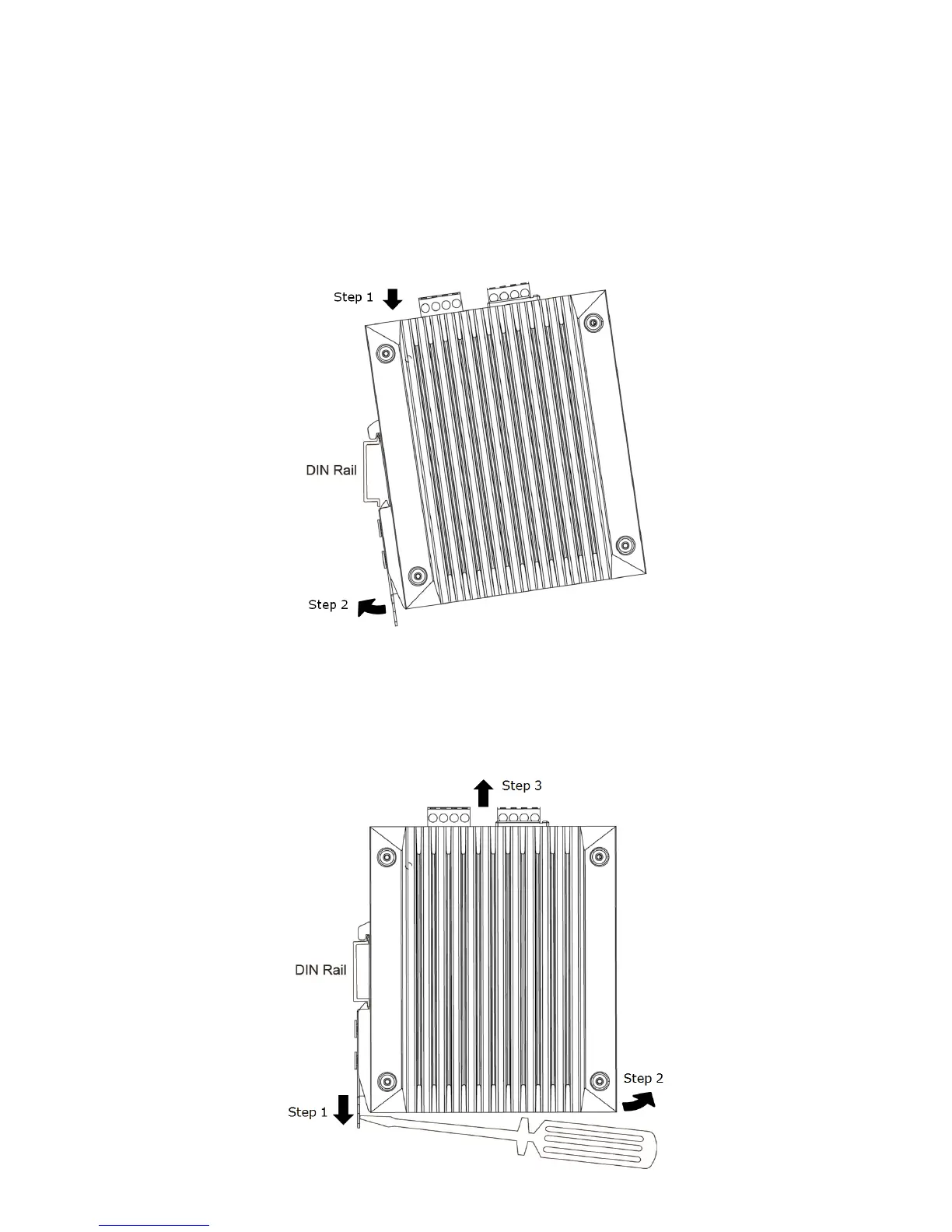

Installation
STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.
STEP 2—Press the EDS-G500E series towards the DIN rail until it snaps
into place.
Removal
STEP 1—Pull down the latch on the mounting kit with a screwdriver.
STEP 2 & 3—Slightly pull the EDS-G500E series forward and lift up to
remove it from the DIN rail.
