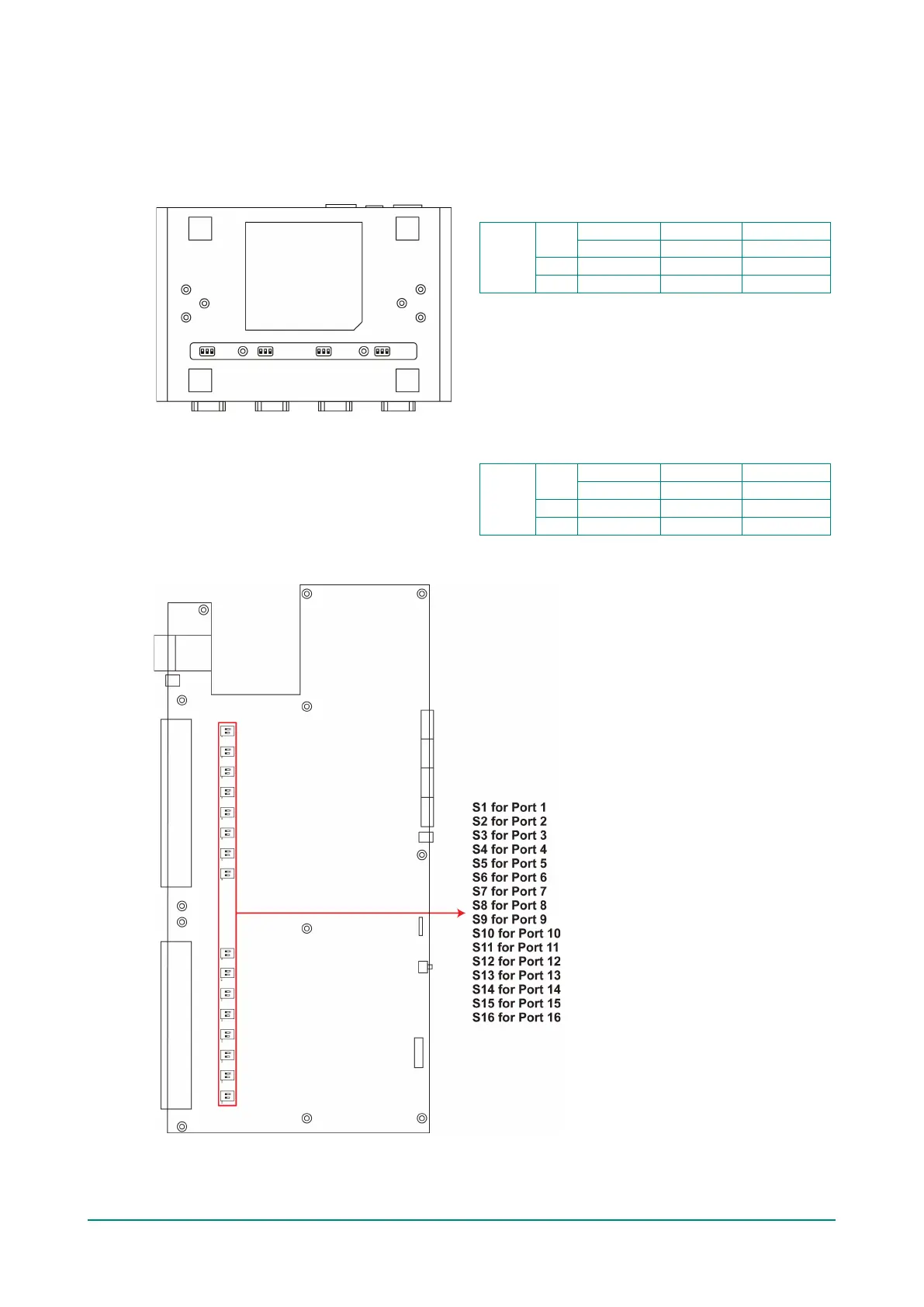

NPort 5450 Models (DIP Switches)
To set the pull high/low resistors to 150 KΩ, make sure both of the assigned DIP switches are in the
OFF position. This is the default setting.
To set the pull high/low resistors to 1 KΩ, make sure both of the assigned DIP switches are in the ON
position.
Pull high/low resistors for the RS-485 Port
Default
SW
1
2
3
Pull High
Pull Low
Terminator
ON
1 KΩ
1 KΩ
120 Ω
OFF
150 KΩ
150 KΩ
–
NPort 5630/5650 Series (DIP Switches)
To set the pull high/low resistors to 150 KΩ,
make sure both of the assigned DIP switches are
in the OFF position. This is the default setting.
To set the pull high/low resistors to 1 KΩ,
make sure both of the assigned DIP switches are
in the ON position.
Pull high/low resistors for the RS-485 Port
Default
SW
1
2
3
Pull High
Pull Low
Terminator
ON
1 KΩ
1 KΩ
120 Ω
OFF
150 KΩ
150 KΩ
–

Moxa Technologies NPort 5130A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
