Moxa Technologies NPort 5210-T User Manual
4
of 1
of 1 rating
194 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
NPor
t 50
00 Se
ri
es
User M
anu
al
147
9.

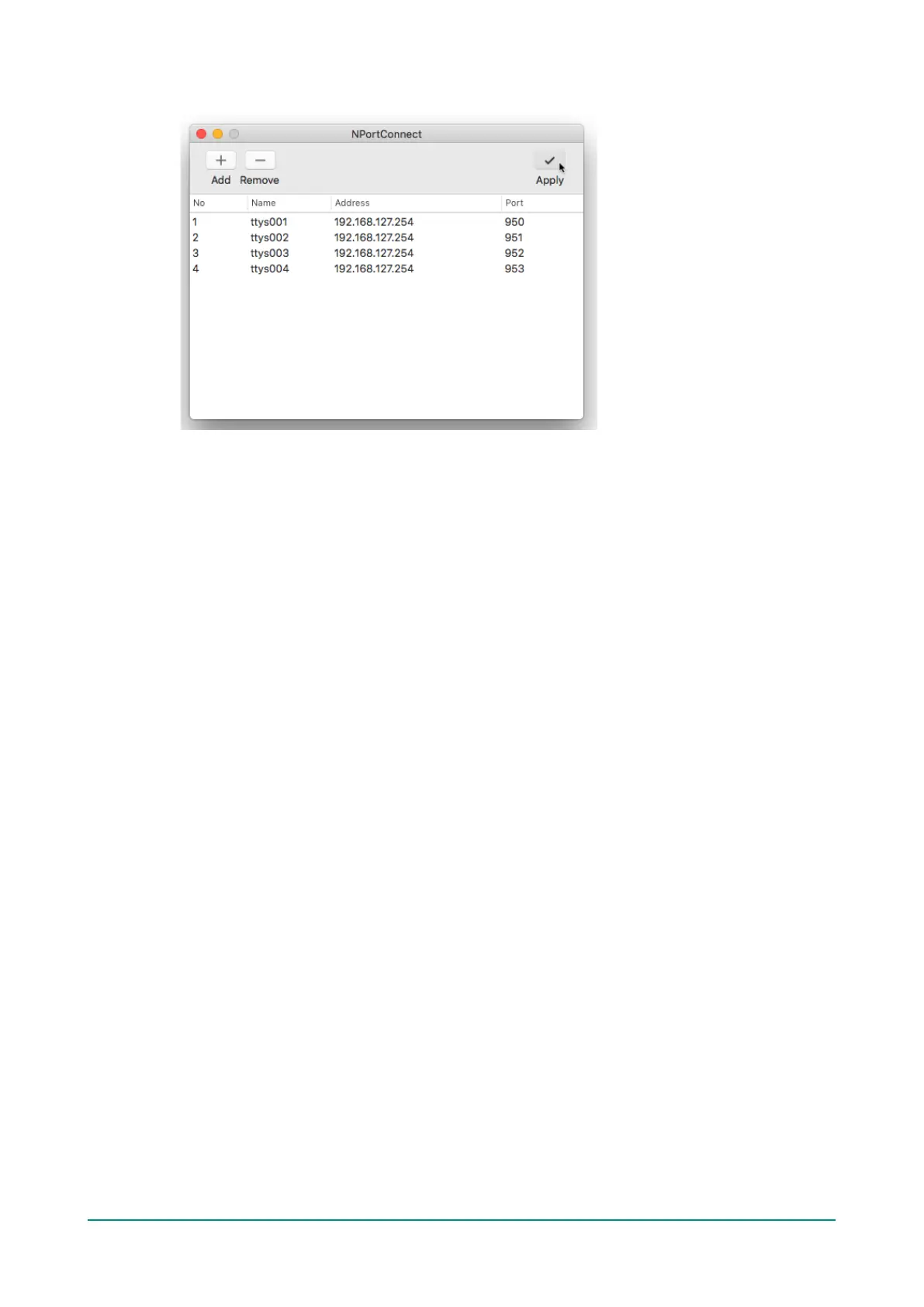

When
every
thing is set, clic
k
Appl
y
to save the configurati
on.
U
ninstalling
the
Driv
er
Run the follow
ing command to uninstall dr
iver:
$ sudo bash /usr/local/share/NPortConnect/uninstall.sh
146
148
Table of Contents
Table of Contents
3
About this Manual
6
Getting Started
7
Installing Your Nport Device Server
7
Wiring Requirements
7
Connecting the Power
8
Grounding the Nport Device Server
8
Connecting to the Network
9
Connecting to a Serial Device
9
LED Indicators
9
Beeper Definition
11
RS-485 Port's Adjustable Pull High/Low Resistor
11
Configuration by Windows Utility
11
Installing Nport Administrator
12
Searching for Device Servers over a LAN
12
Adjusting General Settings
13
Configuring Device Port Operation Mode
14
Configuring Serial Communication Parameters
16
Mapping COM Port to Device (Only Required When Operation Mode Is Set to Real COM or RFC2217)
17
Configuration by Web Console
21
Opening Your Browser
21
Quick Setup (Excluding the Nport 5100, 5200, and IA5000 Series)
24
Export/Import
26
Basic Settings
28
Network Settings
31
Serial Settings
37
Operating Settings
40
Accessible IP Settings
42
Firmware Upgrading Compatibility Check
43
Account Management
44
Notification Message
44
User Account
45
Password and Login Policy
46
Auto Warning Settings
47
Monitor
52
System Log Settings
54
Change Password
55
Load Factory Default
56
Configuration by Telnet Console
56
Configuration by Serial Console
60
Serial Console (19200, N, 8, 1)
60
Testing Your Nport
62
Cybersecurity Considerations
63
Updating Firmware
63
Turn off Unused Service and Ports
63
Turn off Moxa Service after Installation
63
Turn on Services that Are Necessary
63
Limited IP Access
64
Account and Password
64
System Log
64
Testing the Security Environment
64
Choosing the Proper Operation Mode
66
Overview
66
Real COM Mode
66
RFC2217 Mode
67
TCP Server Mode
67
TCP Client Mode
68
UDP Mode
68
Pair Connection Mode
68
Ethernet Modem Mode
68
Reverse Telnet Mode
69
PPP Mode
69
Disabled Mode
69
Advanced Operation Mode Settings
70
Overview
70
List of Parameters
70
When to Make Adjustments
71
Using Pair Connection Modes
71
Parameter Summary
71
Connection Management Parameters
71
Data Packing Parameters
73
Other Parameters
74
Web Console
75
Configuring Nport Administrator
100
Overview
100
Installing Nport Administrator
100
Configuration
103
Broadcast Search
103
Unlock Password Protection
104
Configuring Nport
106
Upgrading the Firmware
107
Export Configuration
109
Import Configuration
110
Monitor
112
Port Monitor
116
COM Mapping
117
On-Line COM Mapping
117
Off-Line COM Mapping
122
COM Grouping
123
Creating a COM Group
123
Deleting a COM Group
125
Adding a Port to a COM Group
126
Removing a Port from a COM Group
127
Modify Ports in a COM Group
128
IP Address Report
132
Nport CE Driver Manager for Windows CE
134
Overview
134
Installing Nport CE Driver Manager
134
Using Nport CE Driver Manager
135
Linux Real TTY Drivers
138
Basic Procedures
138
Hardware Setup
138
Installing Linux Real TTY Driver Files
138
Mapping TTY Ports
139
Mapping Tty Ports Automatically
139
Mapping Tty Ports Manually
139
Removing Mapped TTY Ports
139
Removing Linux Driver Files
140
Macos TTY Drivers
141
Basic Procedures
141
Hardware Setup
141
Installing Macos TTY Driver Files
141
Mapping Macos TTY Port
144
Uninstalling the Driver
147
Linux Arm Drivers
148
Introduction
148
Porting to the Moxa UC-Series-Arm-Based Computer
148
Build Binaries on a General Arm Platform
148
Cross-Compiler and the Real TTY Driver
149
Moxa Cross-Compiling Interactive Script
150
Manually Build the Real TTY Driver with a Cross-Compiler
150
Deploy Cross-Compiled Binary to Target
153
Porting to Raspberry Pi os
153
Porting to the Yocto Project on Raspberry Pi
154
Prerequisite
154
Create a Moxa Layer for the Yocto Project
155
Install a Moxa Layer into the Yocto Project
159
Deploy the Yocto Image in Raspberry Pi
159
Start the Real TTY Driver in Raspberry Pi
159
Set the Default Tty Mapping to the Real TTY Configuration
160
(Optional): Use the SSL Secure Mode for the Nport 6000 Series
160
Troubleshooting
160
IP Serial LIB
161
Overview
161
What Is IP Serial Library
161
Why Use IP Serial Library
161
How to Install IP Serial Library
161
IP Serial LIB Function Groups
162
Example Program
162
Android API Instructions
163
Overview
163
How to Start Mxnportapi
164
Mxnportapi Function Groups
165
Example Program
165
Introduction to LCM Display
166
Basic Operation
166
Detailed Menu Options
166
Pinouts and Cable Wiring
169
Port Pinout Diagrams
169
Ethernet Port Pinouts
169
Serial Port Pinouts
169
Cable Wiring Diagrams
172
Ethernet Cables
172
Serial Cables
172
Adjustable Pull High/Low Resistors for the RS-485 Port
180
Well-Known Port Numbers
188
SNMP Agents with MIB II & RS-232/422/485 Like Groups
190
Auto IP Report Protocol
192
Compliance Notice
194
