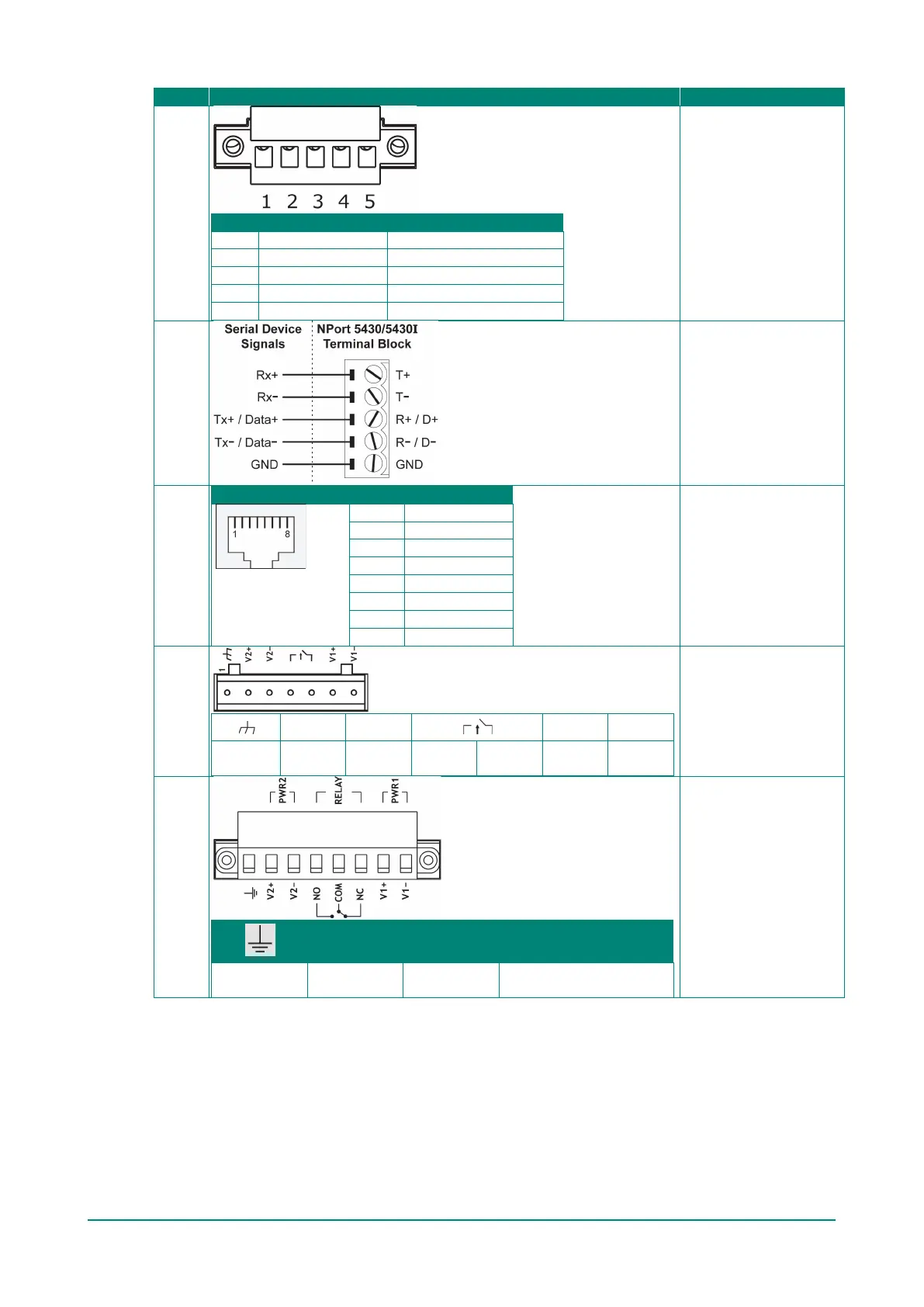

Pin Assignment
Applicable Products
Terminal Block RS
-422/ 485
Port Pinouts
Pin
2-wire RS-485
RS-422, 4-wire RS-485
1
–
TxD+(B)
2
–
TxD-(A)
3
Data+(B)
RxD+(B)
4
Data-(A)
RxD-(A)
5
GND
GND
NPort 5230A, NPort
IA5150, NPort
IA5150A
Terminal Block RS
-
422/485 Pinouts
NPort 5430/5430I
Console Port Pinouts
RJ45 Connector
Pin
RS-232
1
DSR
2
RTS
3
GND
4
TxD
5
RxD
6
DCD
7
CTS
8
DTR
Applies only to DT
models.
Power Input and Relay Output Pinouts
V2+ V2- V1+ V1-
Shielded
Ground
DC Power
input 1
DC Power
input 1
Relay
output
Relay
output
DC Power
input 2
DC Power
input 2
NPort IA5150/5250
Power Input and Relay Output Pinouts
PWR1 PWR2 RELAY
Shielded
Ground
DC Power
Input
DC Power
Input
Normal Open/Close, Relay
output
NPort IA5000A
