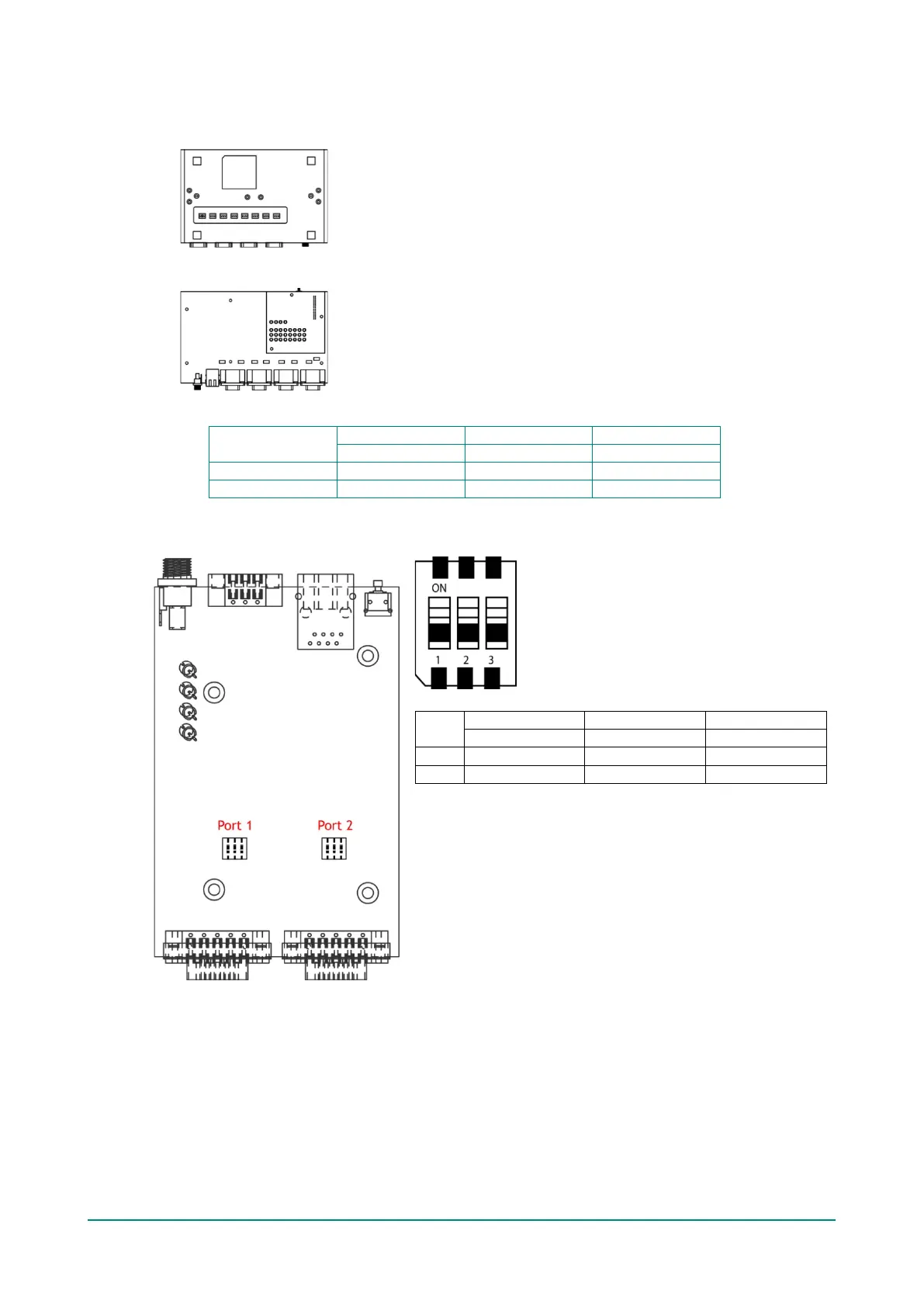

NPort 5000 Series User Manual
183
NPort 5650-8-DT/DTL Series (DIP Switches)
NPort 5650-8-DT: Use the DIP switches on the bottom panel to configure each device port’s pull
high/low resistors. You will need to unscrew the DIP switch cover to access the DIP switches.
NPort 5650-8-DTL: Remove the top cover to access the DIP switches used to configure each device
port’s pull high/low resistors (note that SW4 is reserved for future use).
The pull high/low resistor values for each device port are set as follows:
Default
SW
1
2
3
Pull High
Pull Low
Terminator
ON
1 KW
1 KW
120 W
OFF
150 KW
150 KW
NPort 5230A/5250A (DIP Switches)
SW
1
2
3
Pull-high resistor
Pull-low resistor
Terminator
ON
1 KΩ
1 KΩ
120 Ω
OFF
150 KΩ*
150 KΩ*
–*
* Default
