NPort 5000 Series User Manual
18

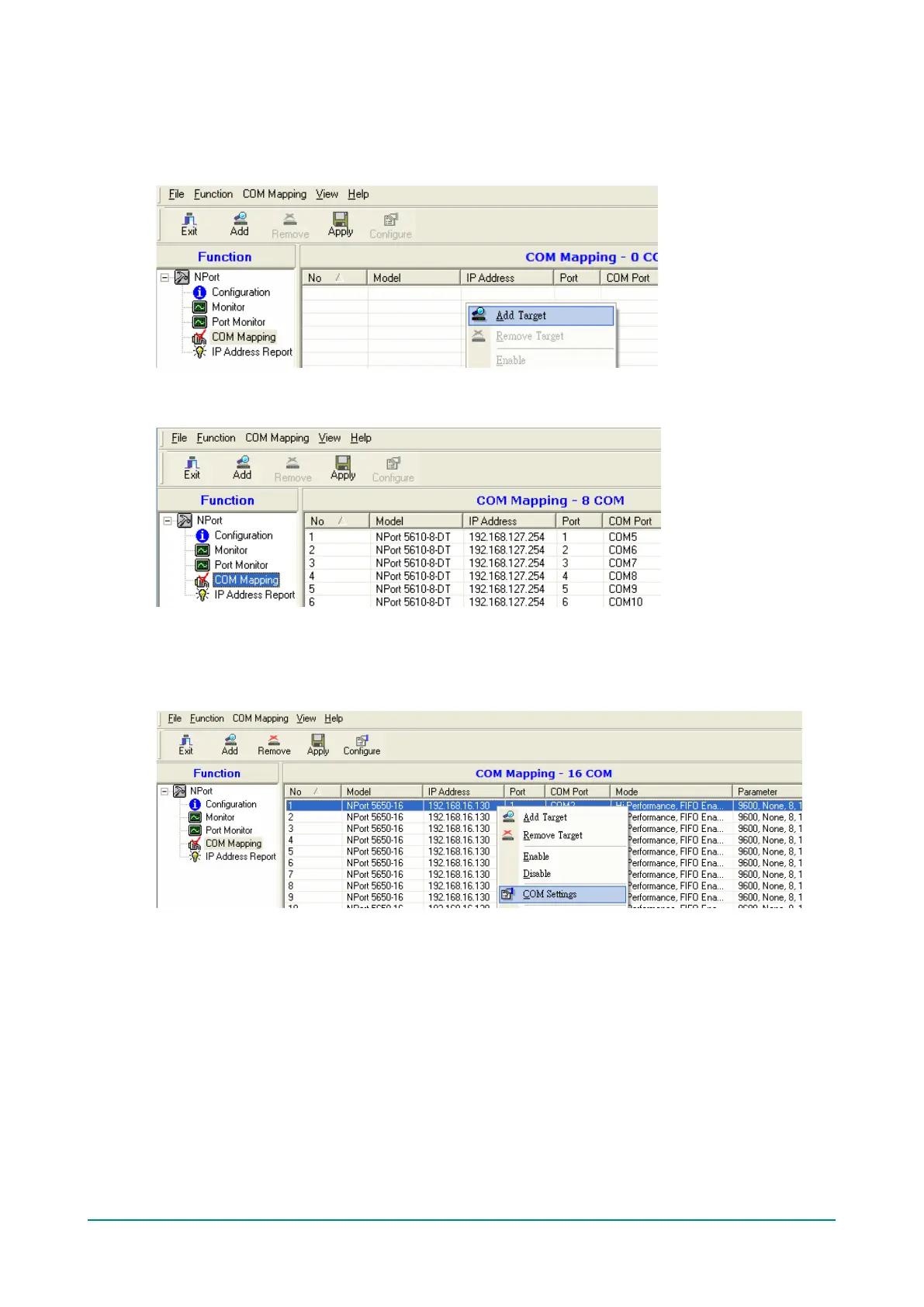

Specifying the Target Device Server
In NPort Administrator, click COM Mapping in the Function panel to open the COM Mapping window.
Right-click on an empty line in the COM Mapping window. Select Add Target in the pop-up menu to assign
your device server as the mapping target.
A list of NPort device servers that have been found by NPort Administrator will appear. Select your device
server and click Finish.
Assigning COM Port Number to Device Port
The COM Mapping screen shows a list of available device ports on the network. Right-click the target
device port and select COM Settings in the pop-up menu.

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
