Moxa Technologies NPort 5250A User Manual

NPort 5000 Series User Manual
131

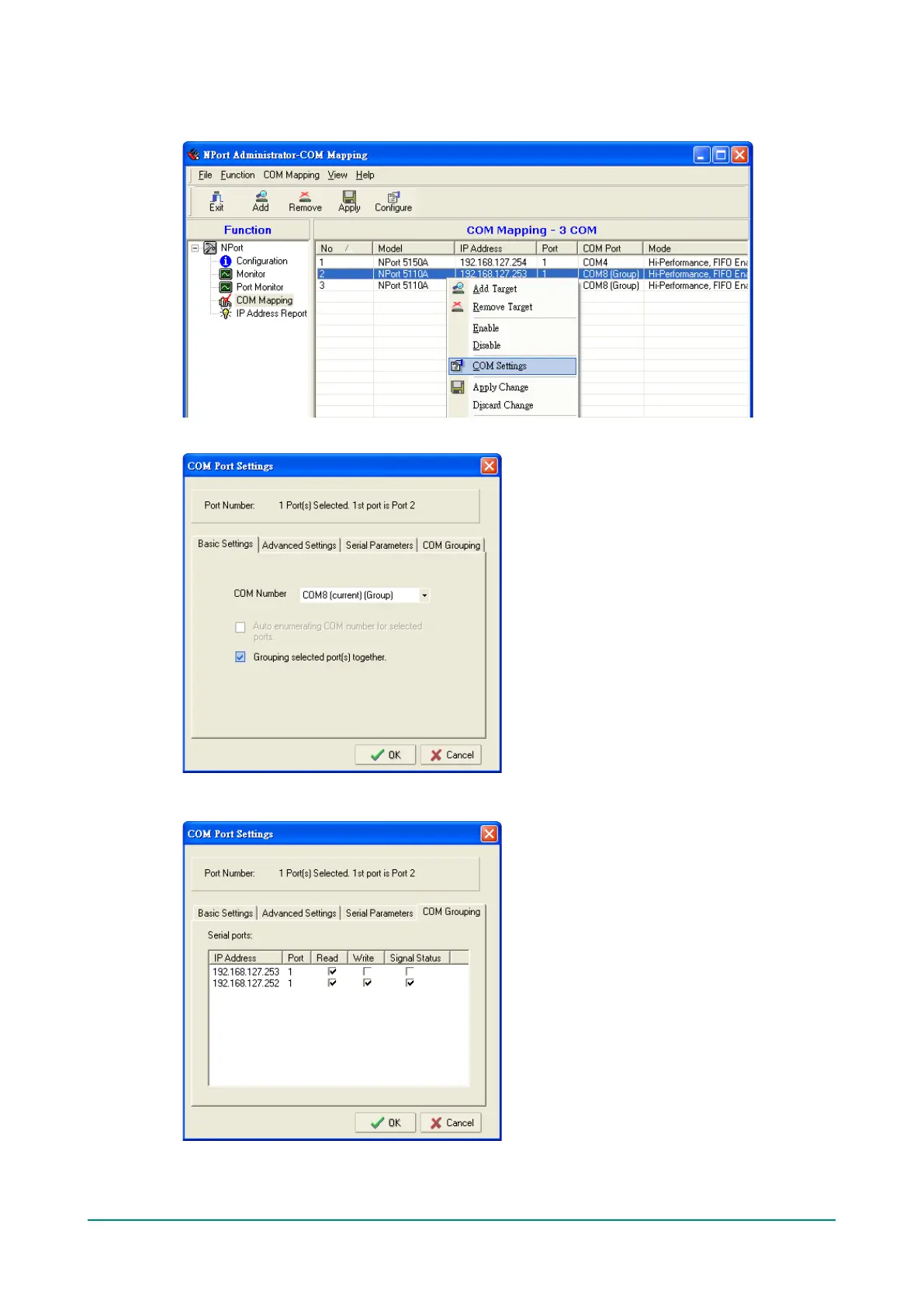

Changing the Serial Port Specified as Signal Port for the COM Group
1. Select a serial port in the Group and then right-click and select COM Settings.
2. Check the Grouping selected port(s) together check box.
3. On COM Grouping page, you can specify one serial port whose signals will be taken into account by
the COM Group and change the Read/Write status for each serial port.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
