NPort 6000 Series Getting Started
Panel, DIN-Rail, and Rack-Mounting
Wall or Cabinet Mounting

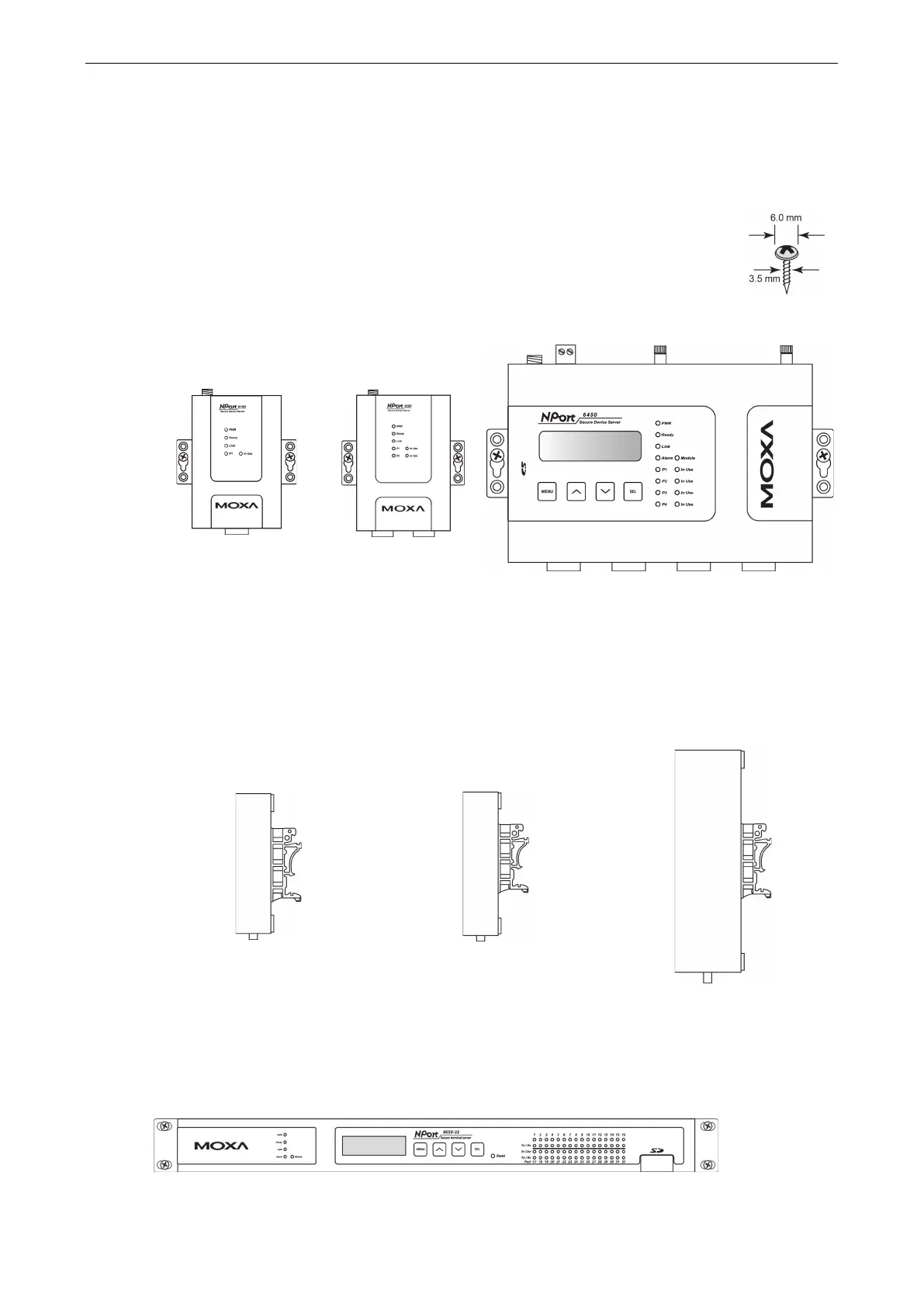

The NPort 6150, 6250, and 6450 device servers have built
-
in “ears” for attaching the device
server to a wall or the inside of a cabinet. We suggest using two screws per ear to attach the
device servers to a wall or the inside of a cabinet. The heads of the screws should be less than
6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the
figure at the right.
NPort 6150 NPort 6250 NPort 6450
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the NPort 6150, 6250, and 6450 to a DIN-rail.
When snapping the attachments to the DIN-rail, make sure that the stiff metal springs are at the top.
NPort 6150 NPort 6250 NPort 6450
Rack-Mounting
Use four screws to attach the NPort 6610/6650 to a standard rack.
NPort 6610/6650
