3 Main description

3 MAIN DESCRIPTION

The adjustable multispindle head you have purchased is composed as follows:

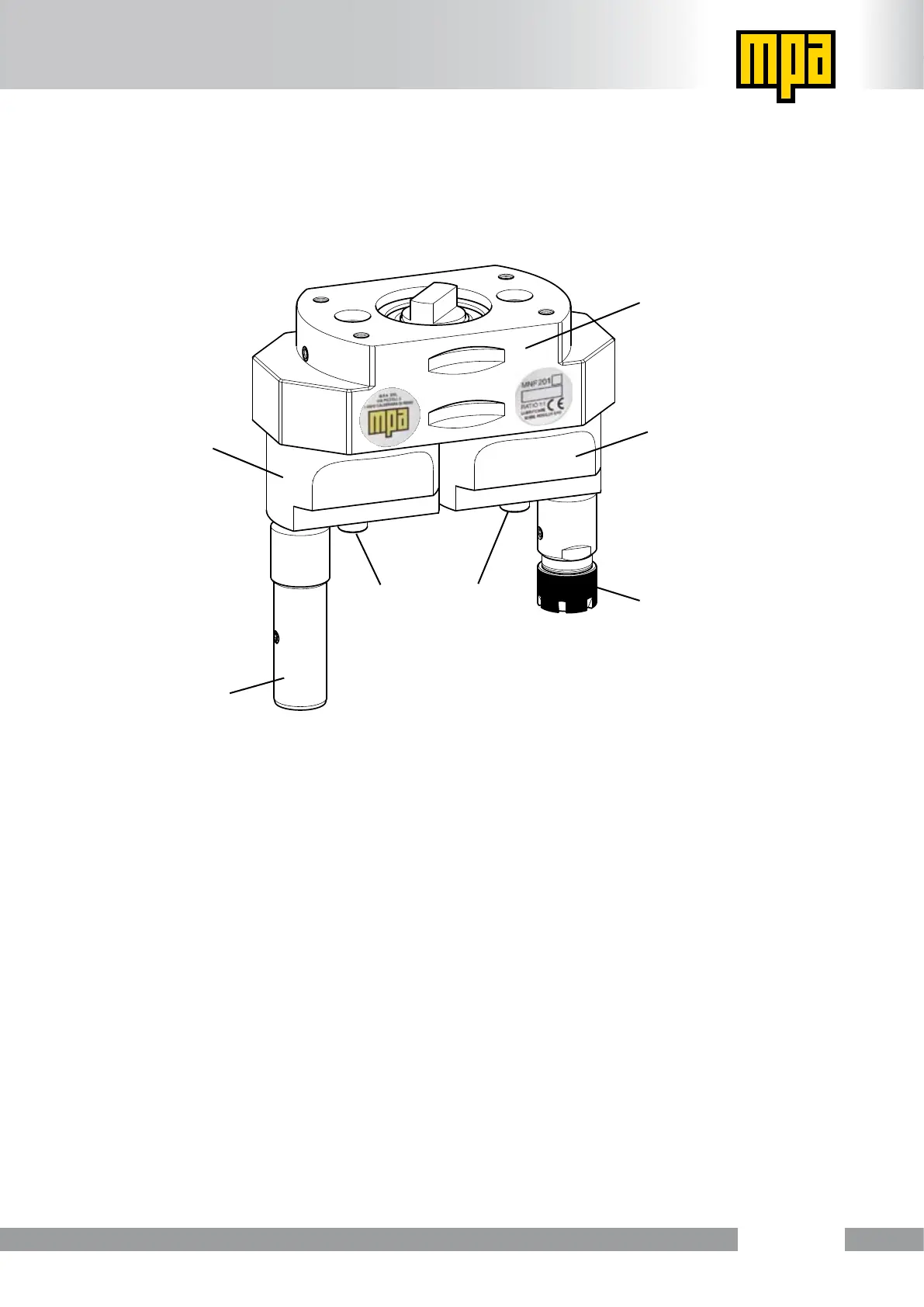

Fig. 2

ADJUSTABLE

SPINDLE

FASTENING SCREW

HEAD MAIN

BODY

ADJUSTABLE

SPINDLE UNIT

ADJUSTABLE

SPINDLE UNIT

VERSION WITH

ER COLLET

DIN 6499 shape B

VERSION WITH

SPINDLE

DIN 55058

3-1 Intended use

• The MPA heads have been designed and manufactured to drill, tap, chamfer and mill

(for 900 series), metal, plastic and wood materials. Any other use is to be considered

improper and relieves MPA from all liabilities.

3-2 Improper use

• The MPA heads are not suitable for tapping by means of interpolation.

Any different use to those indicated in point 3-1 of this manual, is to be considered improper

and, therefore, unauthorised, and relieves MPA from every liability for damages to persons

or things.
