ADJUSTABLE MULTISPINDLE HEADS
7 Installation
7 INSTALLATION
• While installing the head to the machine and, generally, each time that it’s necessary to
work on MPA head, make sure that the machine is inactive and that no possibility exists
to power up the head, while you are carrying out service operation.
• Before starting to install the head, ensure that the weight and overall dimensions of the
head, complete with its accessories, are compatible with the technical features of the
machine on which it will be used.
The operation must be carried out in compliance with the security Standard in force.
Ensure that the machine on which the adjustable multispindle head will be installed is equipped
with accident-prevention protections compliant with the Machinery Directive 2006/42/EC (ex
98/37/EC).
• The head is secured and connected to the tool machine by means of a dedicated flange
1 (Fig. 4).

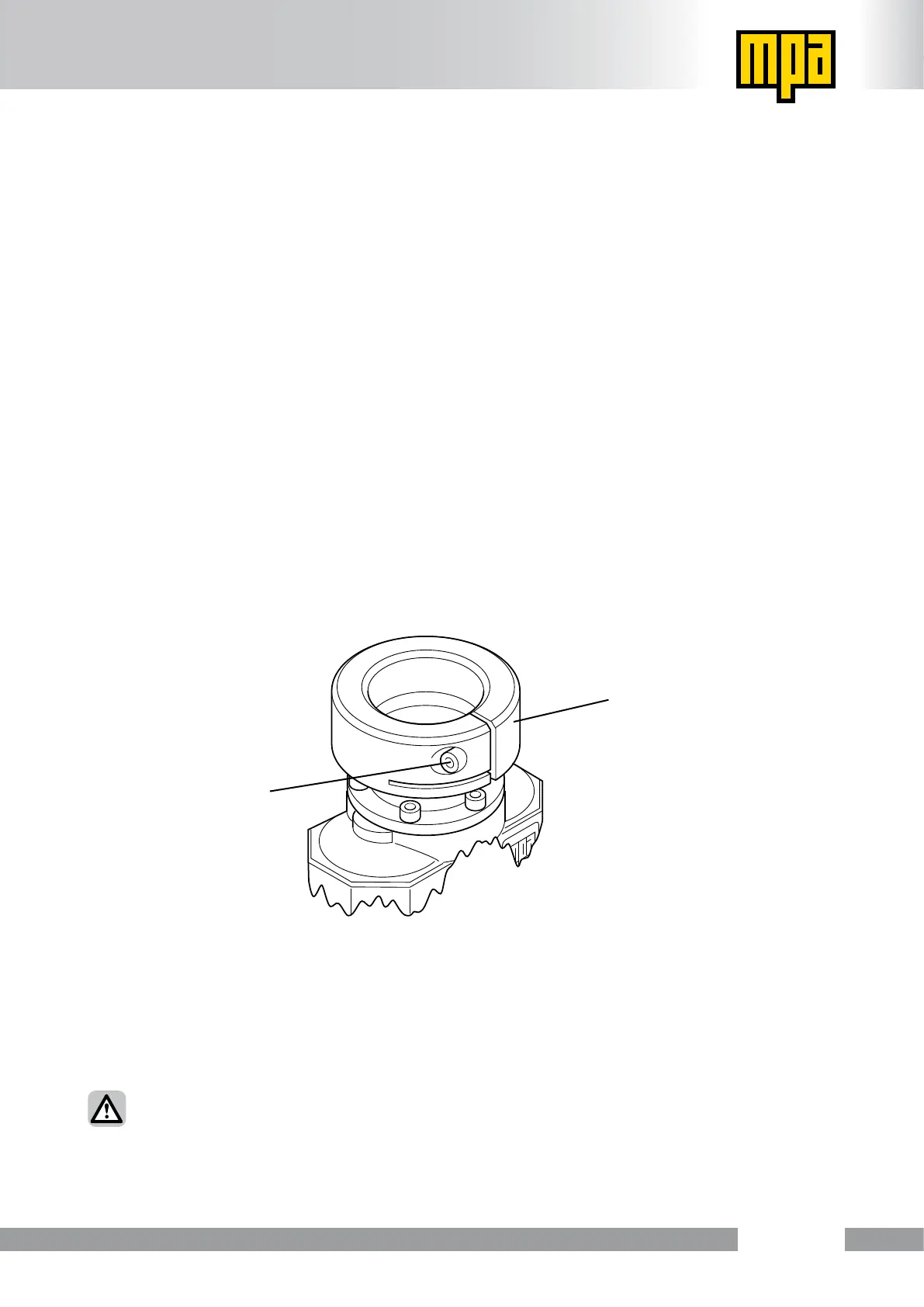

Fig. 4
• To take the head off the tool machine, loosen the screw
2 of the connecting flange (see
Fig. 4). Carrying out this operation, make sure to support the weight of the head: no safety
locking device has been fitted and it the head could fall off, with consequent material
damage and personal injury.
DANGER Before starting the tool machine make sure that all screws securing the head
to the machine are firmly tightened.
1
2
