ADJUSTABLE MULTISPINDLE HEADS
8 Adjustment
8 ADJUSTMENT

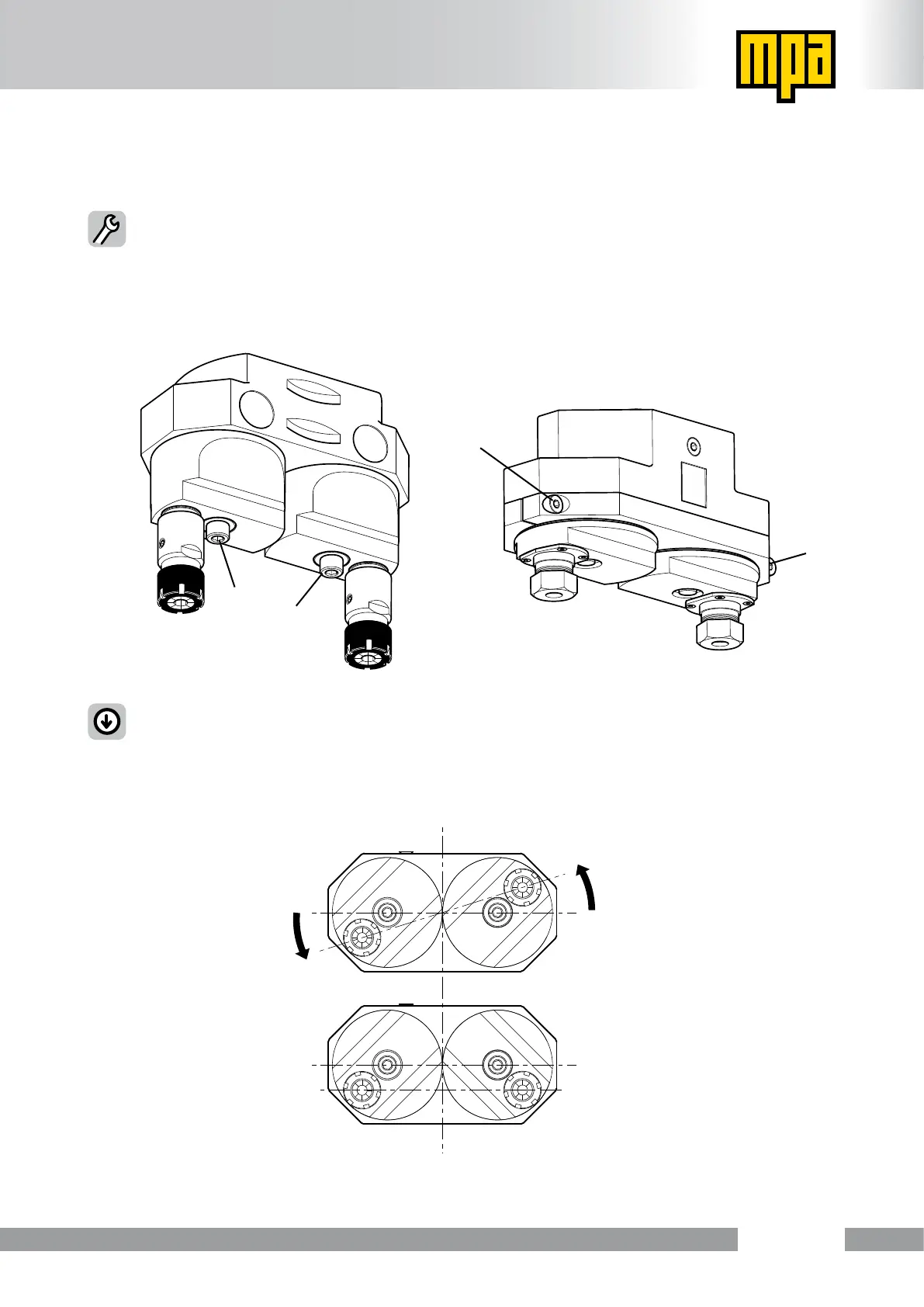

ADJUSTMENT To set the distance between spindles, loosen the screw 1 (Fig. 6) of each
spindle unit and rotate them in the same direction, until the wanted distance is
obtained.
Fig. 6
IMPORTANT In order to balance the forces during working, the positioning of the spindles
must be followed as shown in Fig. 7.
Fig. 7
1
1
1
1
ok
NO!
