ADJUSTABLE MULTISPINDLE HEADS
9 Assembly tools and adjusting
9-2 Tools adjustment and clamping
ADJUSTMENT All adjustable heads with ER collet have the
possibility, in regards to the drilling operations, to
adjust axially the tool, using screw 1 (Fig. 9).

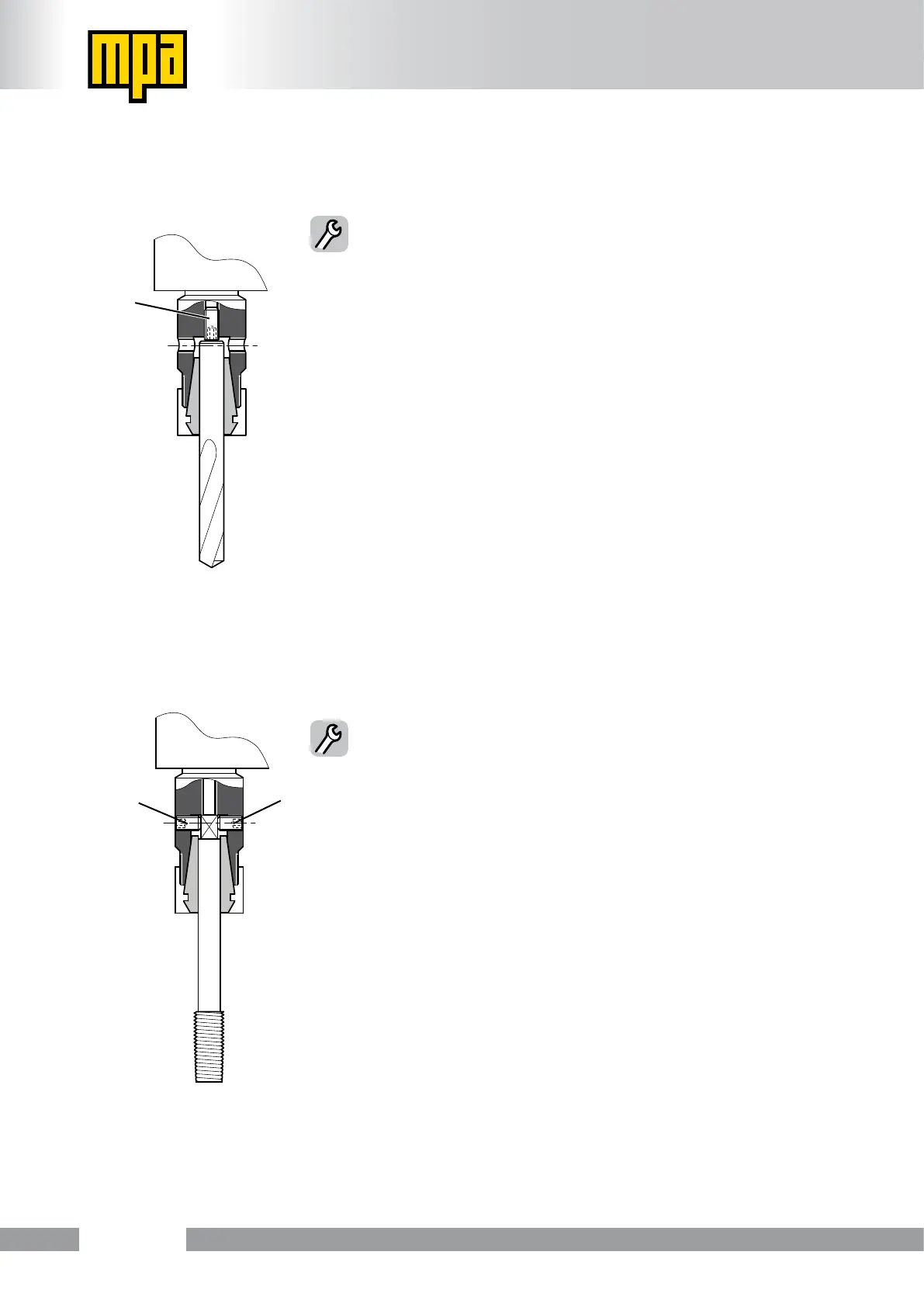

Fig. 9
ADJUSTMENT All adjustable heads with ER collet have screws 2
(Fig. 10) on the spindle that must be used to lock
the square of the tap (Fig. 10).
Fig. 10
1
2
2
