UT1811 - 1010 - UK01
Page 25/32
ADJUSTABLE MULTISPINDLE HEADS
9 Assembly tools and adjusting
9 ASSEMBLY TOOLS AND ADJUSTING
9-1 ER collet DIN 6499 shape B

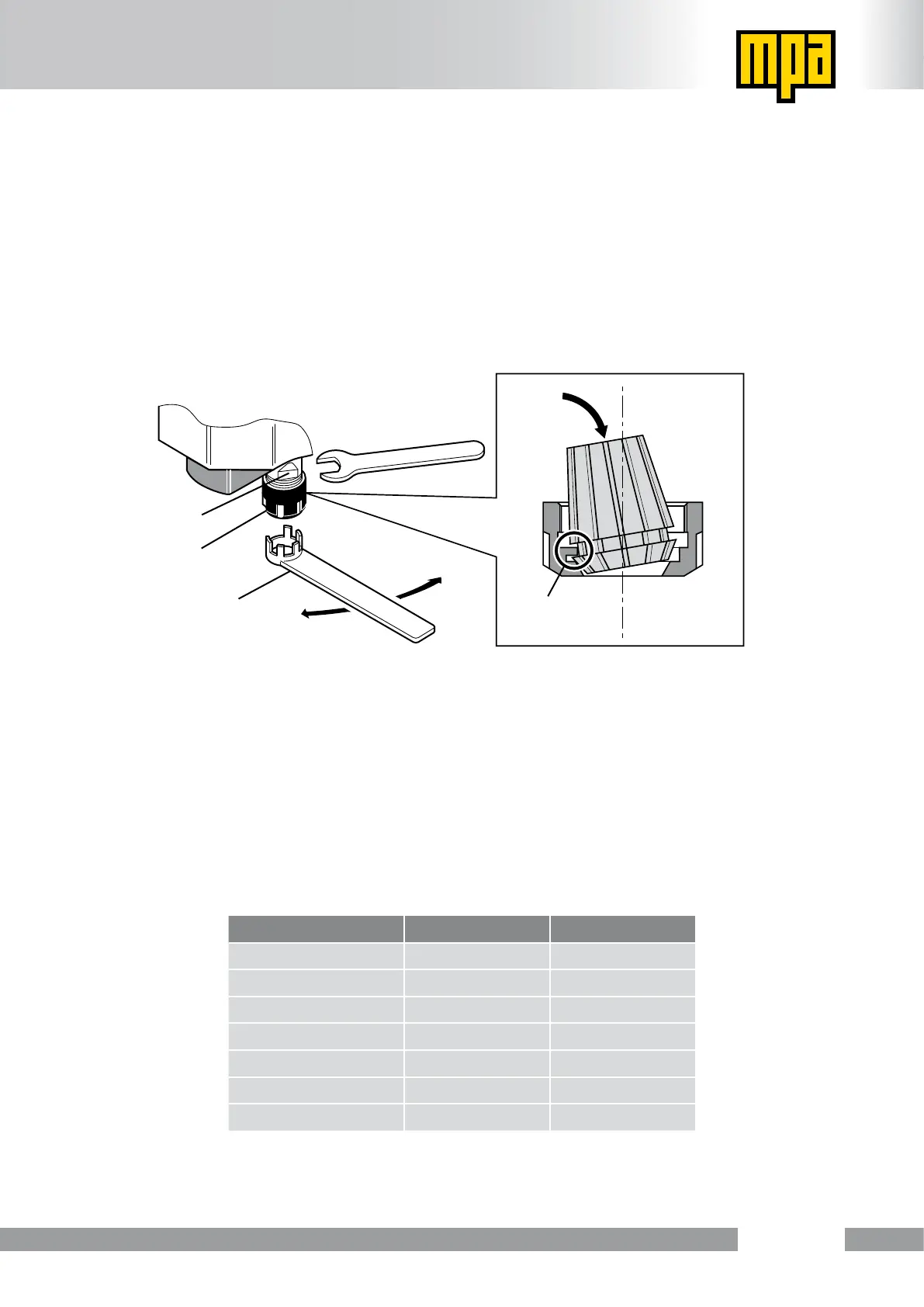

If the head chosen has the spindles for ER collet DIN 6499 shape B, insert manually the
collet inside the nut, being careful to hook the extractor correctly 1 (Fig. 8).
Fig. 8
The tool must be clamped keeping the spindle still, using an open-wrench inserted in the
spindle key flat 2 (Fig 8) and clamping the nut 3 with a proper wrench 4 (Fig. 8).
The type of nut varies depending on the head type on which the spindle is assembled.
Table 2 shows the recommended values for the clamping torque in relation to the various
types of nuts.
Table 2
Nut type Code Torque (Nm)
ER 8-M 414510.008 5
ER 11-M 414513.011 16
ER 16-M 414519.016 24
ER 20-M 414524.020 28
ER 25-M 414530.025 32
ER 20-UM 414825.020
80
ER 25-UM 414832.025
104
1
Clamp
4
Unclamp
2
3
