3 Product description
1710014218/00 EN
The device can be equipped with a maximum of two reed-type switches
(normally open contact or change-over contact). The reed-type switches are
connected electrically via the terminal box.

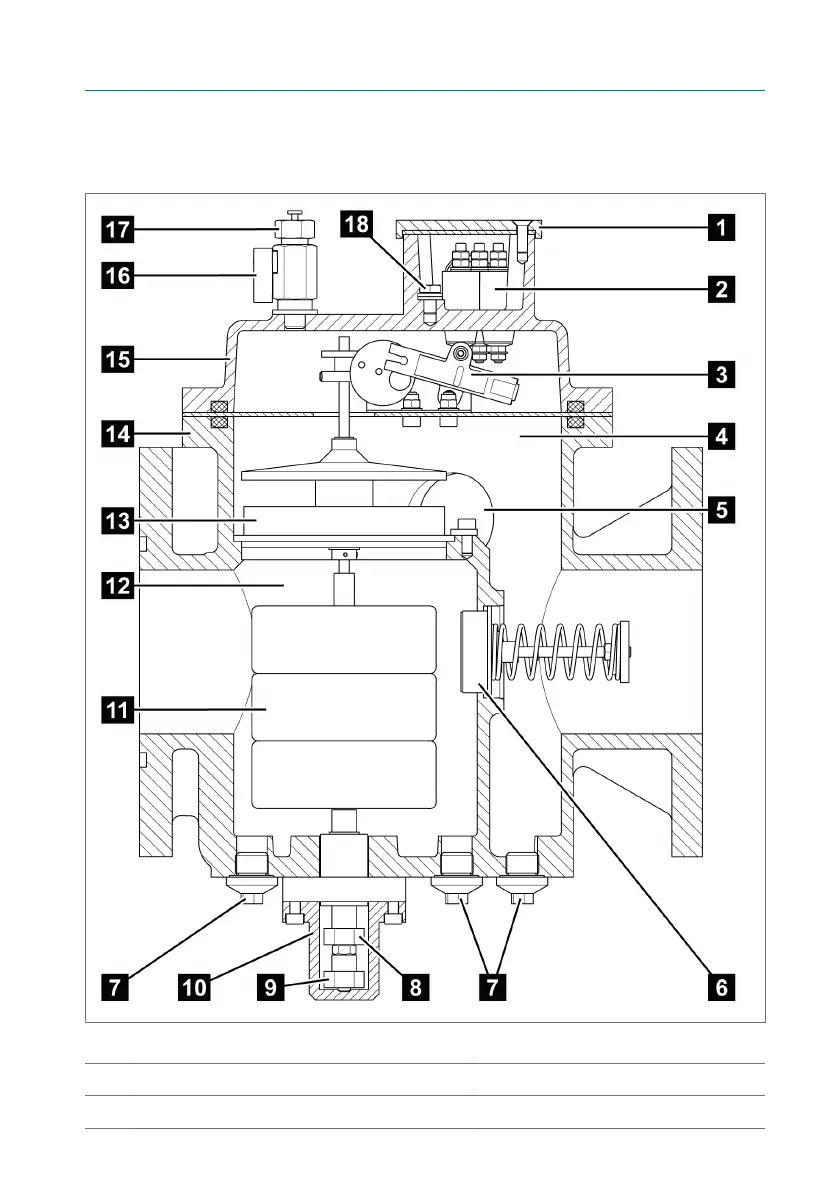

Figure1: Design
1 Terminal box cover 2 Terminals
3 Reed-type switches 4 Conservator-side chamber
