MR CEDASPE DAROC EDS-R Series User Manual

5 Mounting
24 10014218/00 EN
– The gasket material must be suitable for use at the intended ambient
temperatures and operating temperatures.
– The gasket material must be suitable for the relative humidity prevalent
on site.
– When mounted, elastomer gaskets must fill a maximum of 80% of the
sealing groove. The remaining 20% is needed for the volumes of ex-
pansion.
5.3 Preparation for mounting
1. NOTICE! To ensure that the device functions correctly, align the shutter
valve to the pipe such that the arrow printed on the cover of the device
points in the direction of the conservator tank.

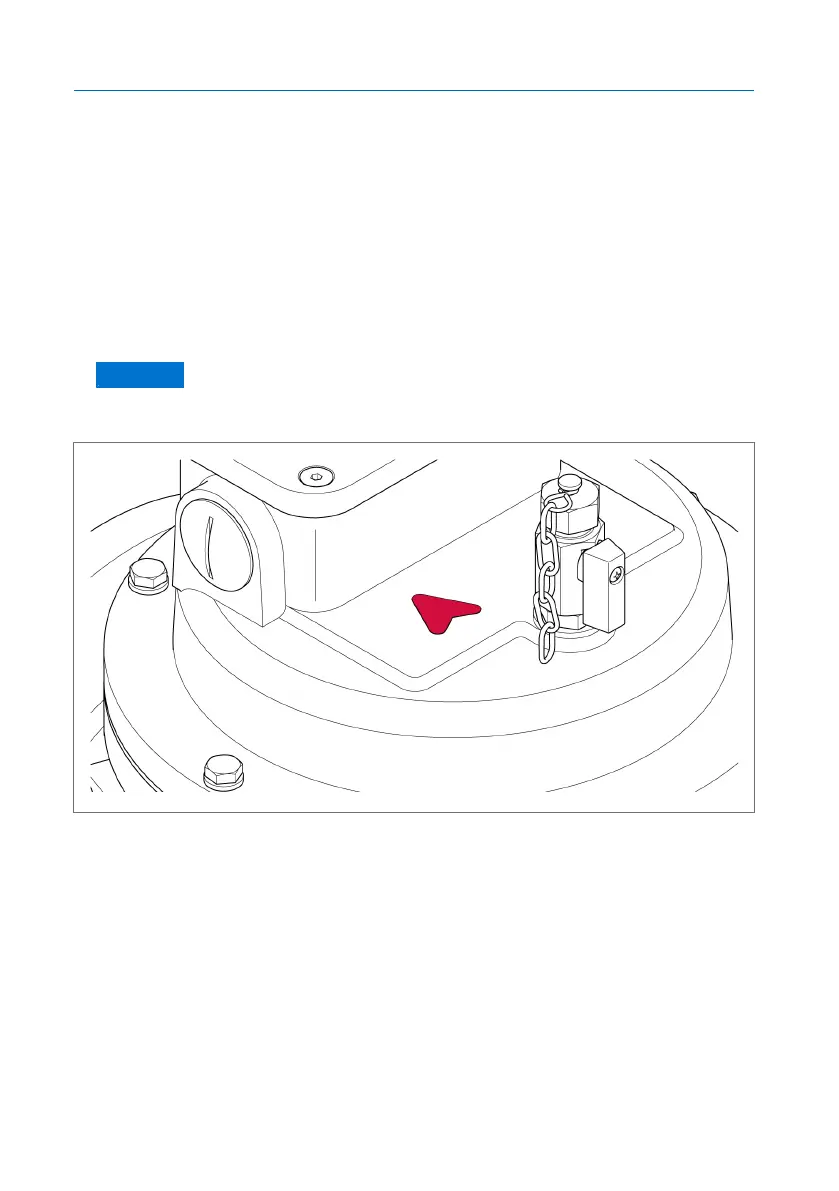

Figure4: Arrow in the direction of the conservator tank
2. The pipe from the shutter valve to the oil conservator must be routed with
a consistent incline of at least 1.2° to ensure the switching gases can es-
cape freely. The shutter valve is intended for a horizontal operating posi-
