tion. A positive inclination of up to 5° from the horizontal is permitted in the
direction toward the conservator. An inclination of up to 5° from the verti-
cal to either side is permitted.

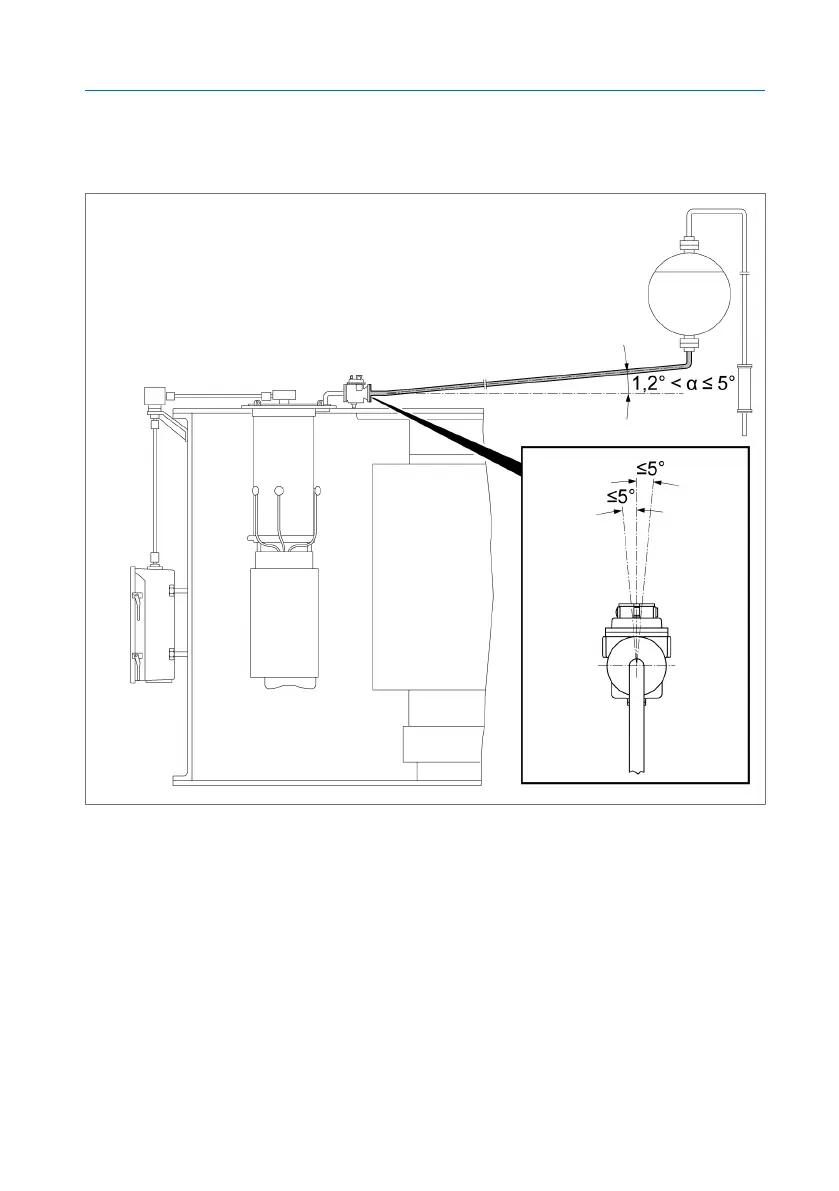

Figure5: Necessary incline of the pipe and permitted inclination of the shutter valve
