5 Mounting

3310014218/00 EN

7. Guide the cable through the cable gland and connect the ring cable lugs

to the terminals as follows.

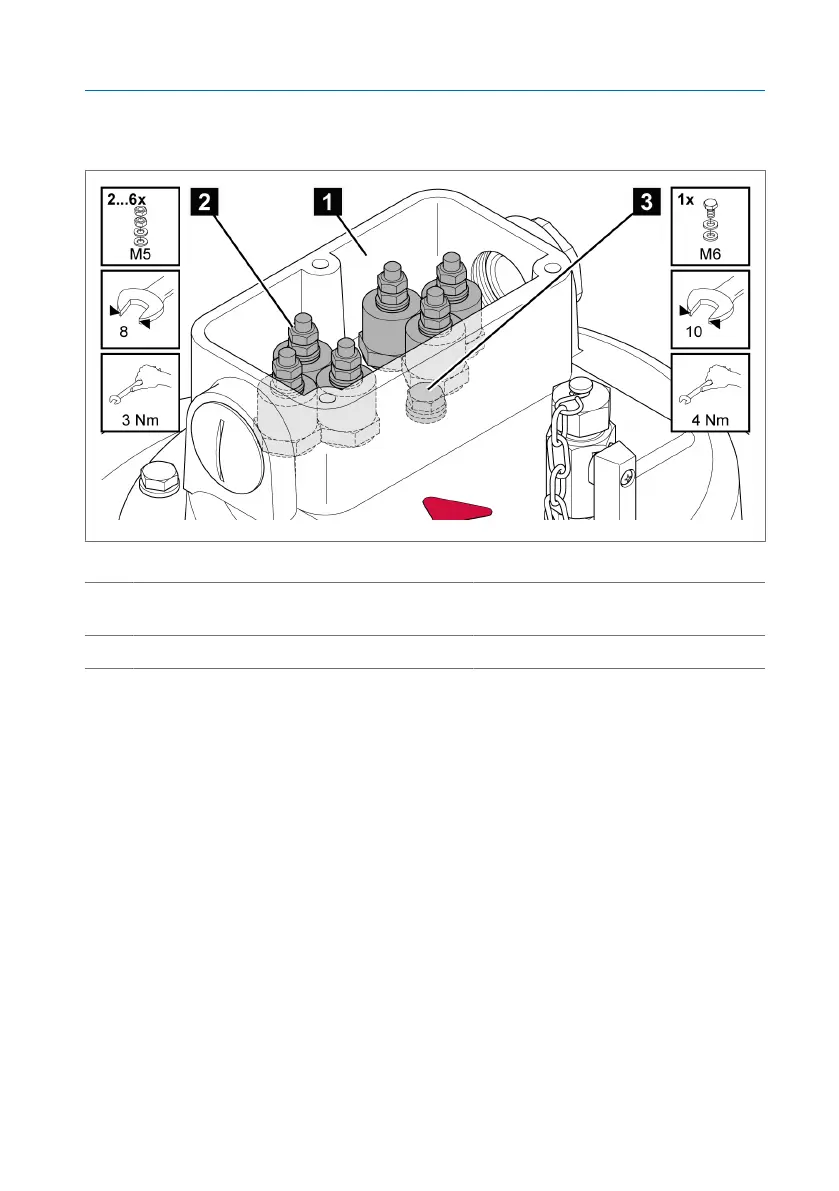

Figure13: Terminal box

1 Terminal box 2 Reed-type switch connections, 2…

6 x M5

3 M6 grounding screw

8. Loosen the nuts on the reed-type switch connections.

9. Place the ring cable lugs between the two washers and secure them by

tightening the nuts.

10. Ground the device via grounding cable with ring cable lug. To do so,

loosen the grounding screw.

11. Place the ring cable lug on the grounding screw between the two wash-

ers and tighten the grounding screw.

12. Tighten the cable gland.

13. Position the cover on the terminal box and tighten the 3screws (hex-

wrench 4mm).
