5.3.1.1 Attaching the Compact Standard pointer thermometer
You can use the following screws to attach the pointer thermometer:
▪ M8 hexagon screws or cylinder screws.
▪ Use a screw length that is appropriate based on the installation situation.
To attach the pointer thermometer to the transformer, proceed as follows:
1. Drill two holes, with a distance of 140mm (5.51") and a diameter of 9mm
(0.35"), into a suitable bracket on the outside of the transformer, on the
control cabinet mounting plate or on another suitable structure.

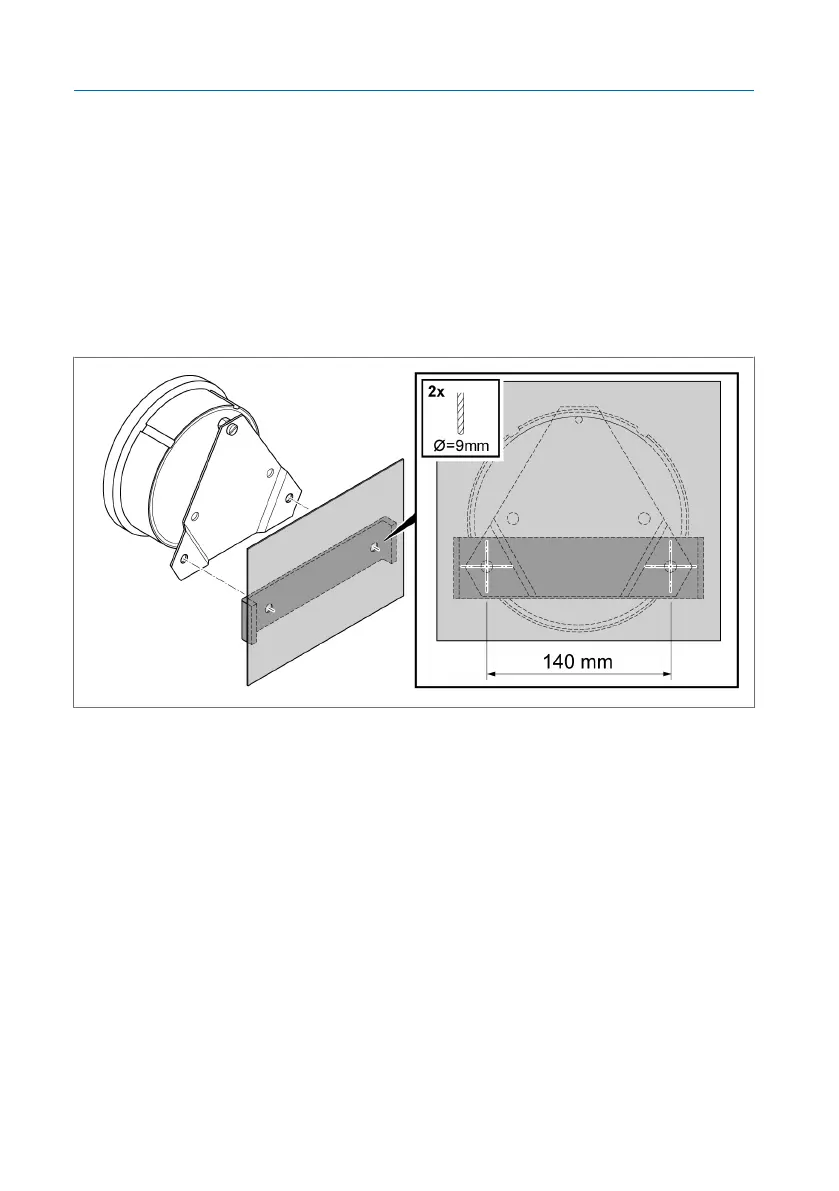

Figure11: Holes
