5 Installation and commissioning
33BA5831400-00 EN
2. Attach the pointer thermometer with vibration-damping plate to the trans-
former.

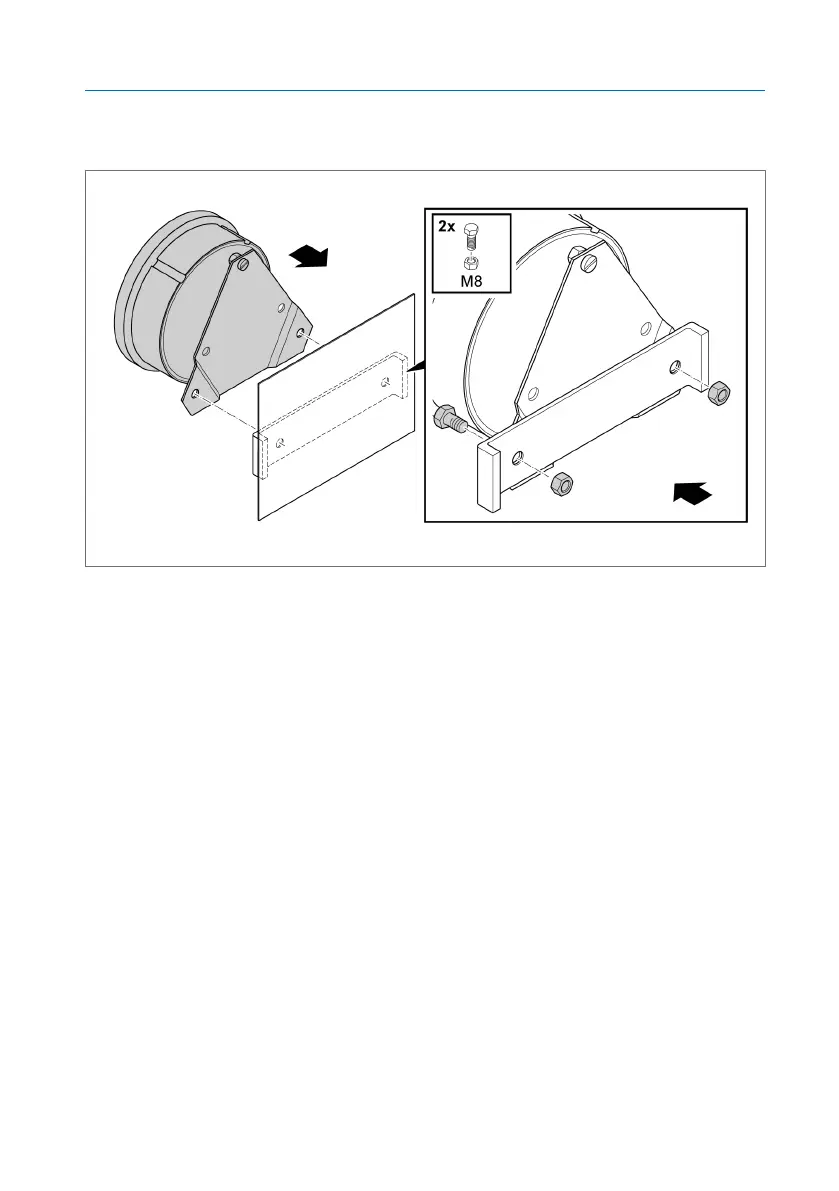

Figure12: Attaching the pointer thermometer with vibration-damping plate
5.3.1.2 Attaching the Compact RM pointer thermometer
You can use the following screws to attach the pointer thermometer:
▪ M12 hexagon screws or cylinder screws (as an alternative, also 7/16-14
UNC).
▪ Use a screw length that is appropriate based on the installation situation.
