MR MESSKO MT-ST Compact User Manual

5 Installation and commissioning
34 BA5831400-00 EN

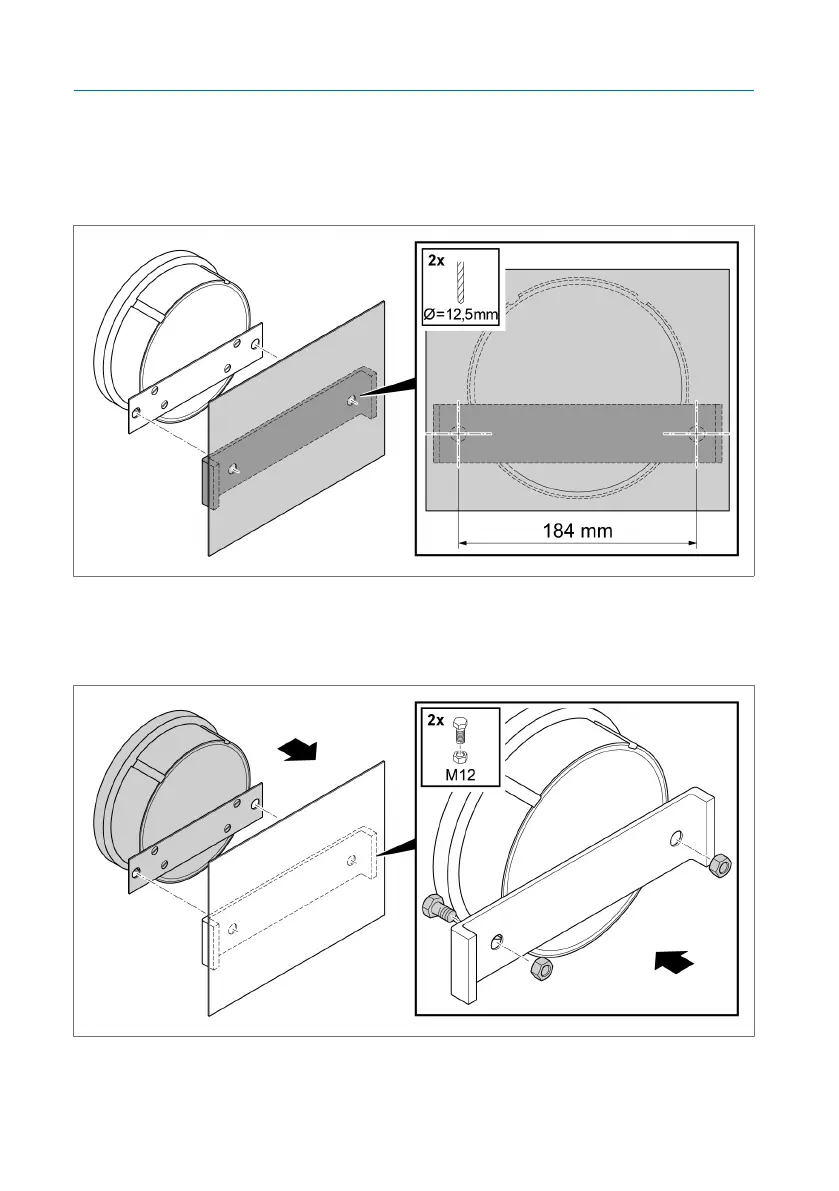

To attach the pointer thermometer to the transformer, proceed as follows:
1. Drill two holes, with a distance of 184mm (7.24") and a diameter of
12.5mm (0.49"), in a suitable bracket on the outside of the transformer,
on the control cabinet mounting plate or on another suitable structure.
Figure13: Holes
2. Attach the pointer thermometer with mounting plate to the transformer.
Figure14: Attaching the pointer thermometer with mounting plate
