DOCUMENT NO.
CHANGE NO.

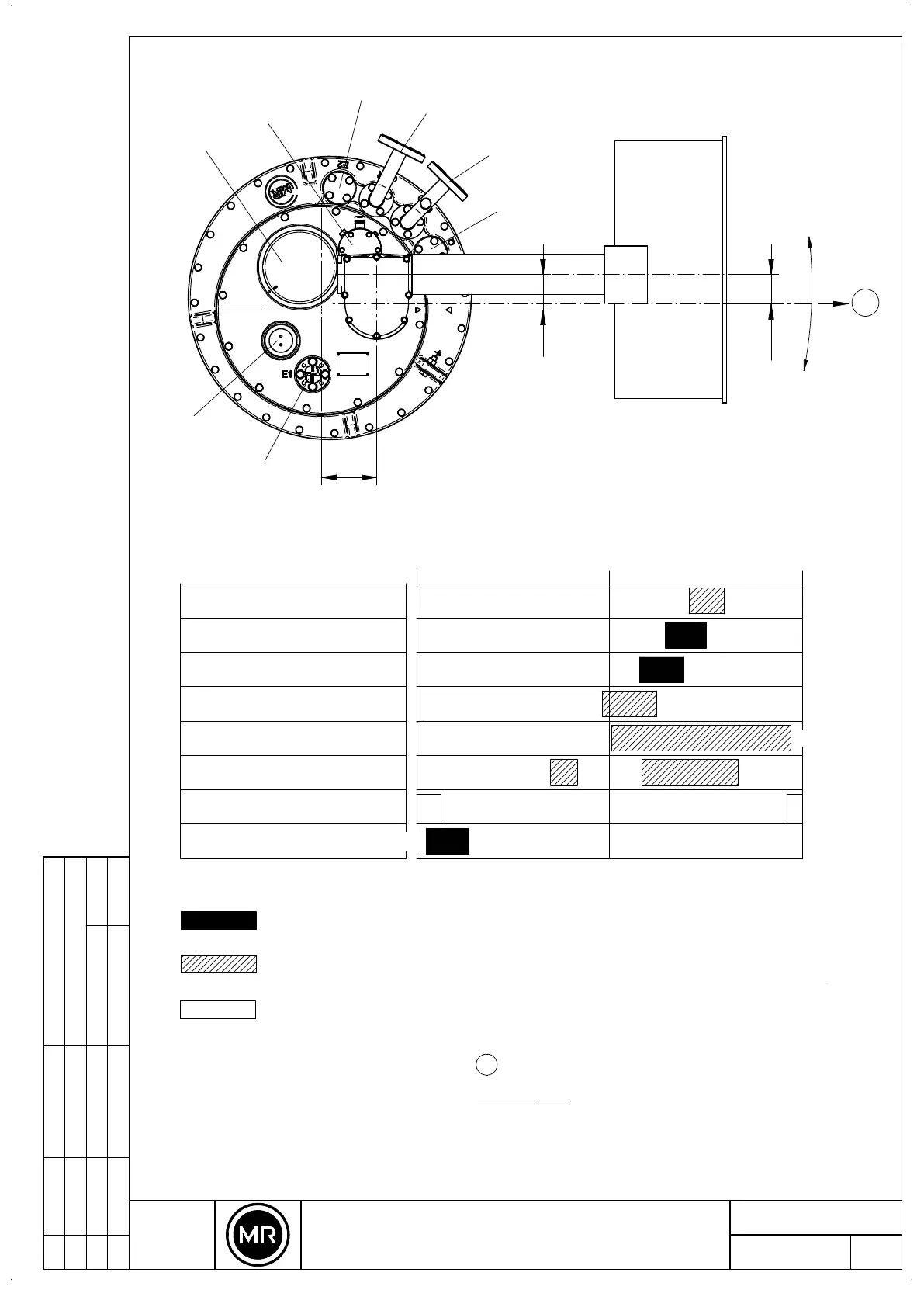

- HEAD DESIGN FOR SDS-
ON-LOAD TAP-CHANGER VACUTAP® VVS®
SWIVELLING RANGE FOR UPPER GEAR UNIT, SHAFT ON LEFT SIDE
-
1
1
101168500E /
STREMPEL
06.06.2018
STREMPEL
06.06.2018 SED 5986336 001 00
1:5
1087254
SCALE
07.06.2018
PRODASTSCHUK
STAND.
DFTR.
CHKD.
SHEET
DATE NAME
MATERIAL NUMBER
SERIAL NUMBER
DIMENSION
IN mm
EXCEPT AS
NOTED
© MASCHINENFABRIK REINHAUSEN GMBH 2018
THE REPRODUCTION, DISTRIBUTION AND UTILIZATION OF THIS DOCUMENT AS WELL AS THE COMMUNICATION OF ITS CONTENTS TO OTHERS WITHOUT EXPRESS AUTHORIZATION IS
PROHIBITED. OFFENDERS WILL BE HELD LIABLE FOR THE PAYMENT OF DAMAGES. ALL RIGHTS RESERVED IN THE EVENT OF THE GRANT OF A PATENT, UTILITY MODEL OR DESIGN.
A2
LIMITATION OF THE SWIVEL RANGE THROUGH PIPE CONNECTIONS R AND S AND AIR-VENT VALVE E1
LIMITATION OF THE SWIVEL RANGE THROUGH OPTIONAL EXISTING PIPE CONNECTIONS Q , E2
AND PRESSURE RELIEF DEVICE DV AND TEMPERATURE SENSOR T
SWIVEL RANGE POSSIBLE, BUT THE INSPECTION WINDOW SG IS NOT VISIBLE
SWIVELLING RANGE
THE ON-LOAD TAP-CHANGER CAN BE TURNED AROUND ITS AXLE AND THE UPPER
GEAR UNIT SWIVELLED CONTINUOUSLY TO ALLOW FOR EASY ADAPTION TO THE
TRANSFORMER.
THE POSSIBLE SWIVELLING RANGES OF THE UPPER GEAR UNIT ARE SHOWN ABOVE.
M
- MARK ( DRIVE SIDE )
-
+
E1
DV
SG
T
Q
S
R
E2
M
130
82
68,5
0°
-7°
44°
28°
69°
52°
90°
30°
120°
-30°
165°
-131°
-171°
2°
169°
-157°
-55°
74°
107°
-180° 0° +180°
PIPE CONNECTION E2
PIPE CONNECTION R
PIPE CONNECTION S
PIPE CONNECTION Q
PRESSURE RELIEF DEVICE DV
TEMPERATURE SENSOR T
INSPECTION WINDOW SG
AIR-VENT VALVE E1
