MRW Vib-Control 04 - Connection Variant 1; Connection Variant 2

To Next Page

To Previous Page

MRW Vib-Control 04

27. Oktober 2014

23 v. 34

Installation

and commissioning

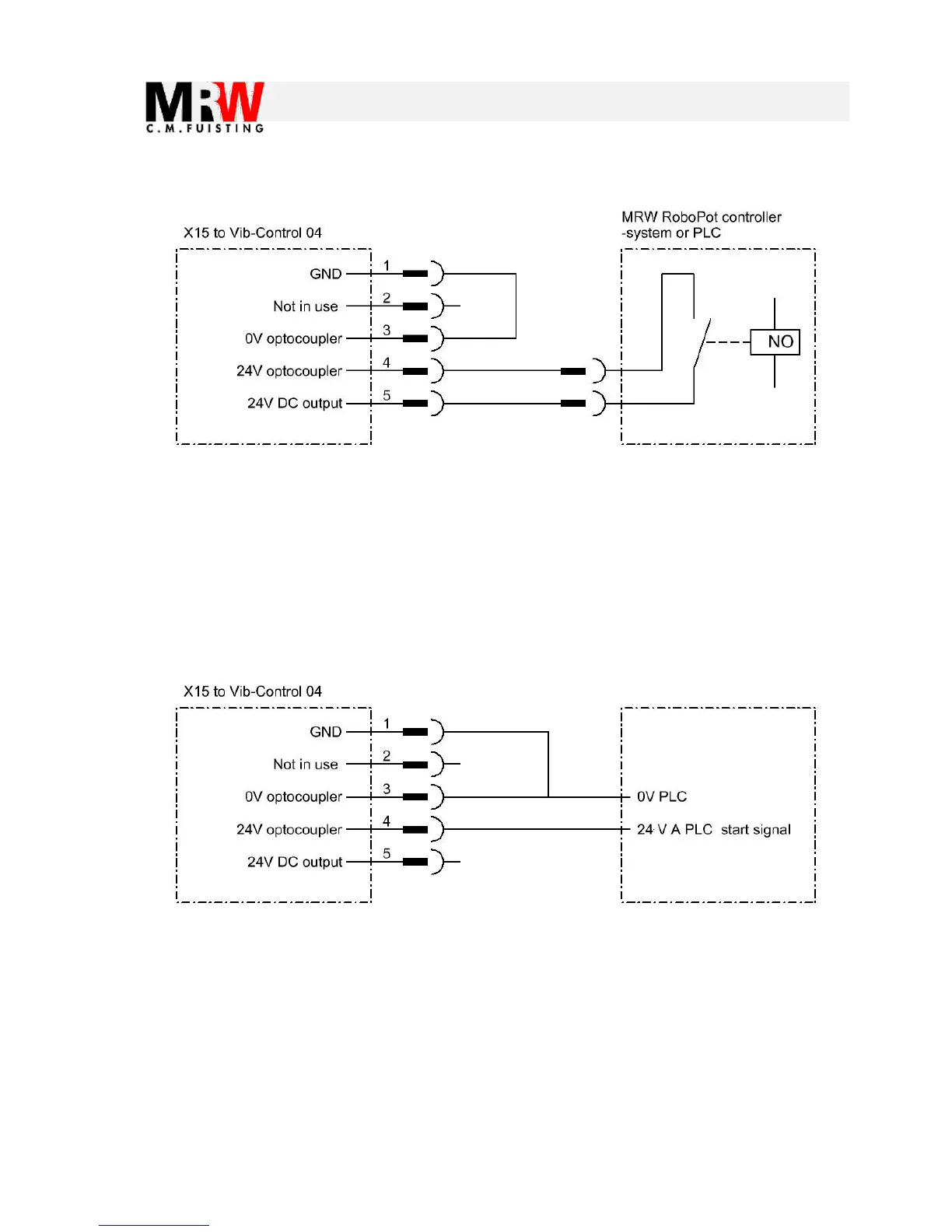

5.3.1 Connection variant 1

A normally open relay is used here to control the Vib-Control 04

with its own potential.

If using the MRW RoboPot System, this connection is prepared and

a ready-made cable is provided in the accessories.

5.3.2 Connection variant 2

Here, the 24 V potential of the PLC is used to control the Vib-

Control 04.

A potential equalisation of the 0V optocoupler to GND is necessary
