MSA 9010 LCD - Page 62

Control Unit Models 9010 LCD and 9020 LCD
62
Appendix
MSA
GB
9010/20 LCD
Sensor data sheet
Series 47 K-ST and PRP
Part No.:
as per ordering information

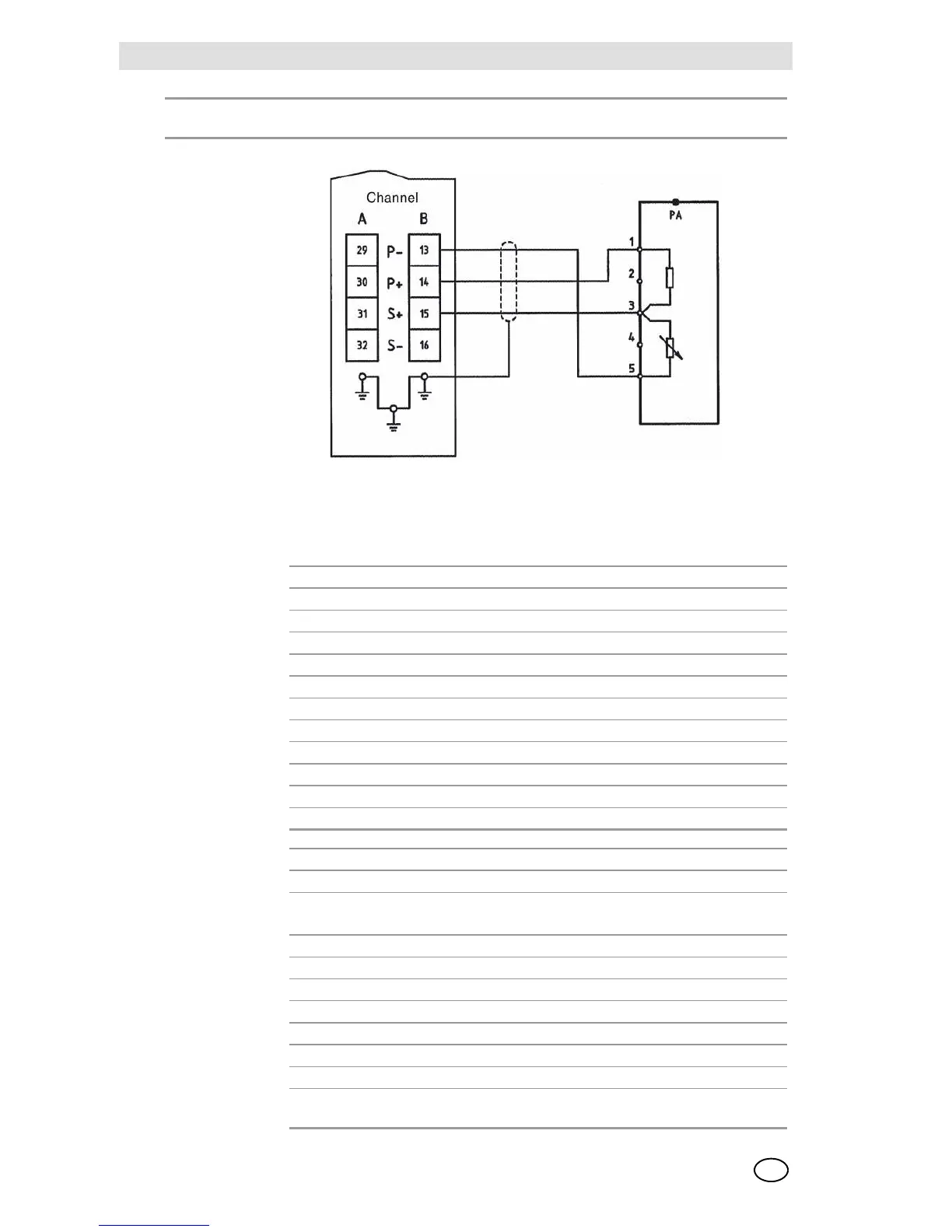

Terminal Block 9010/9020 Series 47 K Standard & PRP
Caution: Before connecting the measuring head bridge current, check hardware
and software settings.
On the 9010/9020 LCD, the cable shield is applied on one side.
Sensor type: Catalytic/passive/constant current supply [3 wire passive]
Connection data: Bridge current: 310 mA
Maximum rated current: 350 mA
Maximum rated voltage: 3.0 V
Power requirement: 1.0 W [excluding cable lengths]
Connection cable: 3-lead, 80% shielded
Maximum loop resistance: 36 Ohm
Maximum cable length: 1,000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8...13.5 mm
Permitted lead cross-section: 1.0-2.5 mm
2
Cable insertion: e-housing; d-housing
Terminal box: EExd 2 x 3/4“ NPT Part No.: 10046464
Terminal box: EExe 2 x M25 x 1,5 Part No.: 10048198
Conditions for
use:
Assembly: Wall-mounted
Protection: IP 42 [Gehäuse] nach DIN 400 50
Explosion protection: Ex II 2G EEx d IICT4 [-40 °C bis +90°C]
Ex II 2G EEx d IICT6 [-40 °C bis +40°C]
Approvals: INERIS 03 ATEX 0208
Temperature: -20 °C to +40 °C
Humidity: 5 – 95 % relative humidity; non-condensing
Pressure: 47 K-ST: 900-1,100 hPa, 47K-PRP: 1,000 +/- 50 hPa
Weight: 720 g
Dimensions W x D x H: 80 mm x 55 mm x 125 mm
Housing material: Stainless steel
Further details in the Operating and Maintenance Instructions
[Part No.: 10052472]
