9010/20 LCD Sensor data sheet Serie 47 K-HT Part No.: 10048199

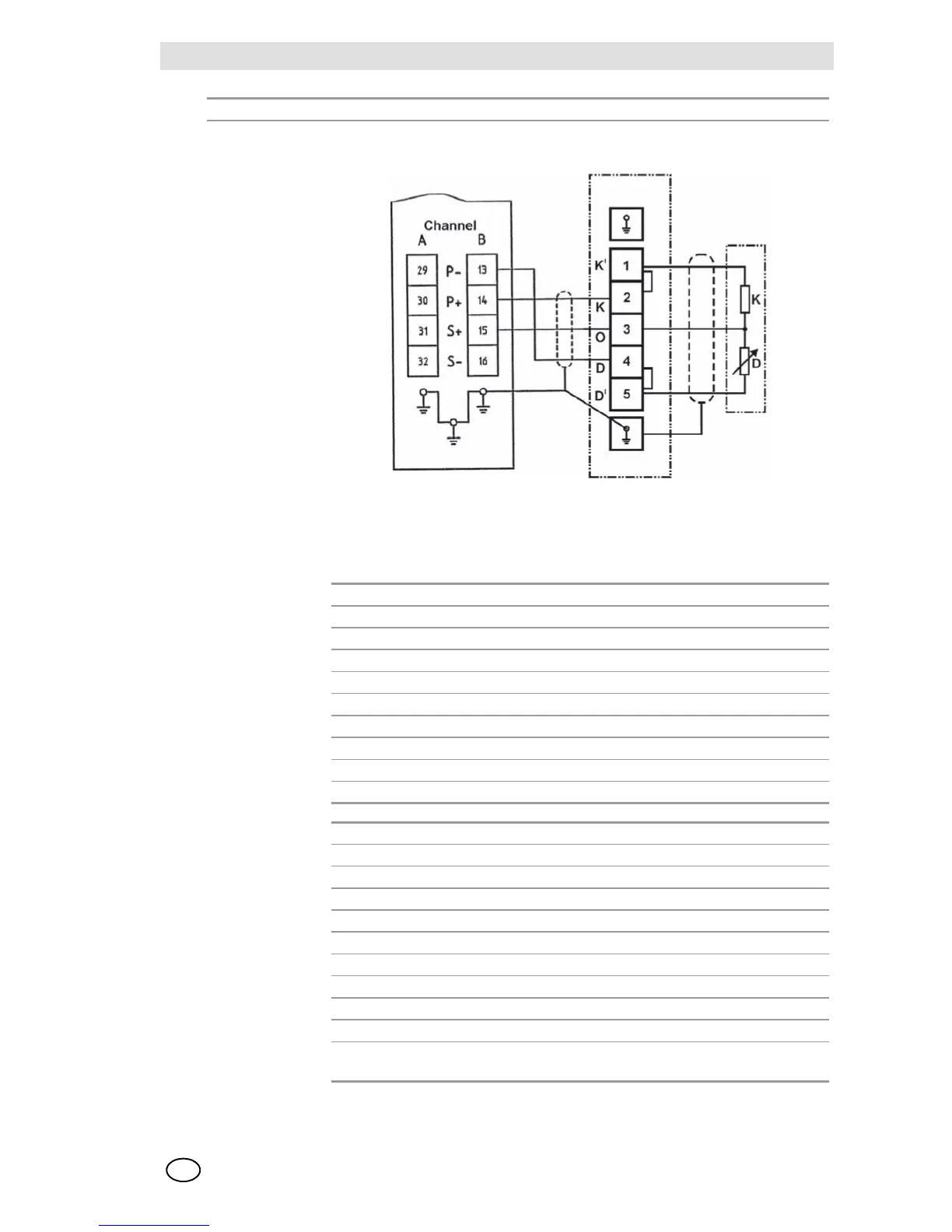

Terminal Block
9010/9020 Series 47 K-HT
Caution: Before connecting the measuring head bridge current, check hardware
and software settings.
On the 9010/9020 LCD, the cable shield is applied on one side.
Sensor type: Catalytic/passive/constant current supply [3 wire passive]
Connection data: Bridge current: 280 mA
Maximum rated current: 350 mA
Maximum rated voltage: 3.0 V
Power requirement: 1.0 W [excluding cable lengths]
Connection cable: 3-lead, 80% shielded
Maximum loop resistance: 32 Ohm
Maximum cable length: 1,000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 5,4 mm
Permitted lead cross-section: 1.0 – 2.5 mm
2
Terminal box: HT11 [100 °C] Part No.: D0715154
Conditions for
use:
Assembly: Wall-mounted
Protection:
Explosion protection: Ex II 2G EEx d IIC T3 [-40 °C to +160 °C]
Approvals: INERIS 03 ATEX 0208
Temperature: -40 °C to +160 °C
Humidity: 5 – 95 % rel. humidity; non-condensing
Pressure: 800 – 1,200 hPa
Weight/sensor: 230 g
Dimensions, dia. x H: 36 mm x 56 mm
Housing material: Stainless steel
Further details in the Operating and Maintenance Instructions
[Part No.: 10052472]
