Control Unit Models 9010 LCD and 9020 LCD
64
Appendix
MSA
GB
9010/20 LCD Sensor data sheet D-8201 Part No.: D0715643

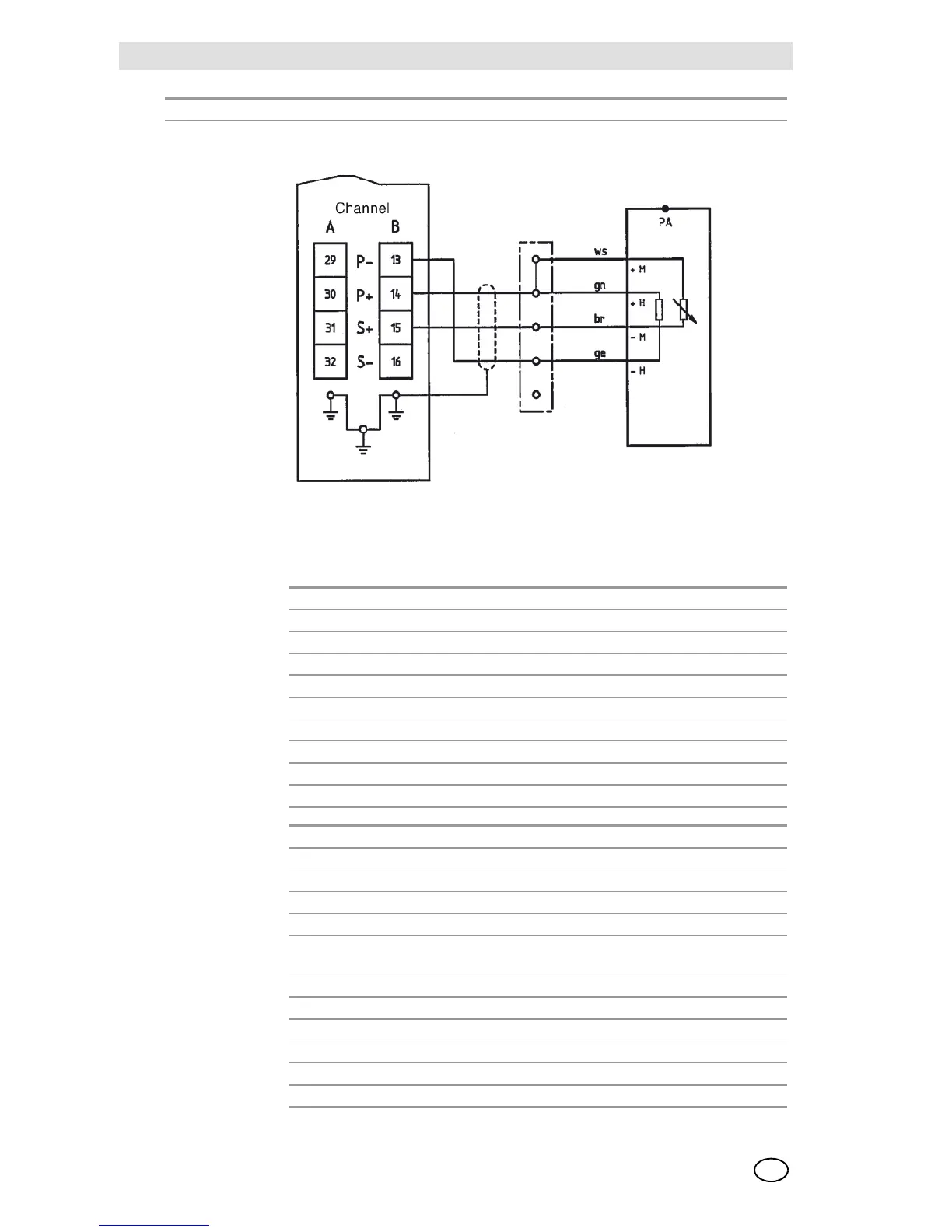

Terminal Block
9010/9020 Sensor Type D-8201
Caution: Before connecting the measuring head bridge current, check hardware
and software settings.
On the 9010/9020 LCD, the cable shield is applied on one side.
Sensor type: [3 wire semiconductor]/passive/linear/constant current supply
Connection data: Bridge current: 118 mA ± 2 mA
Maximum rated current: 150 mA
Maximum rated voltage: 10 V
Power requirement: approx. 0.6 W [excluding cable lengths]
Connection cable: 3-lead, 80 % shielded
Maximum loop resistance: 36 Ohm
Maximum cable length: 1,200 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8.5 mm
Lead cross-section: 1.5 mm
2
Terminal box: HT11 [100 °C] Part No.: D0715154
Conditions for
use:
Assembly: Wall-mounted
Protection: IP 42 to DIN 400 50
Explosion protection: Ex II 2G EEx d IIC T4/T6
Approvals: PTB 01 ATEX 1152 X N1
Temperature: -40 °C to +100 °C
Humidity: 10 – 95% relative humidity/
40 °C; non-condensing
Pressure: 900 – 1,100 hPa
Weight: 0.72 kg
Dimensions W x D x H: 50 mm x 40 mm x 50 mm
Housing material: Stainless Steel [DIN 1.4305, V2A]
Heat-up time: 60 s
Response time: 20…90 s, depending on material and measuring range
