Appendix
Control Unit Models 9010 LCD and 9020 LCD
79
GB

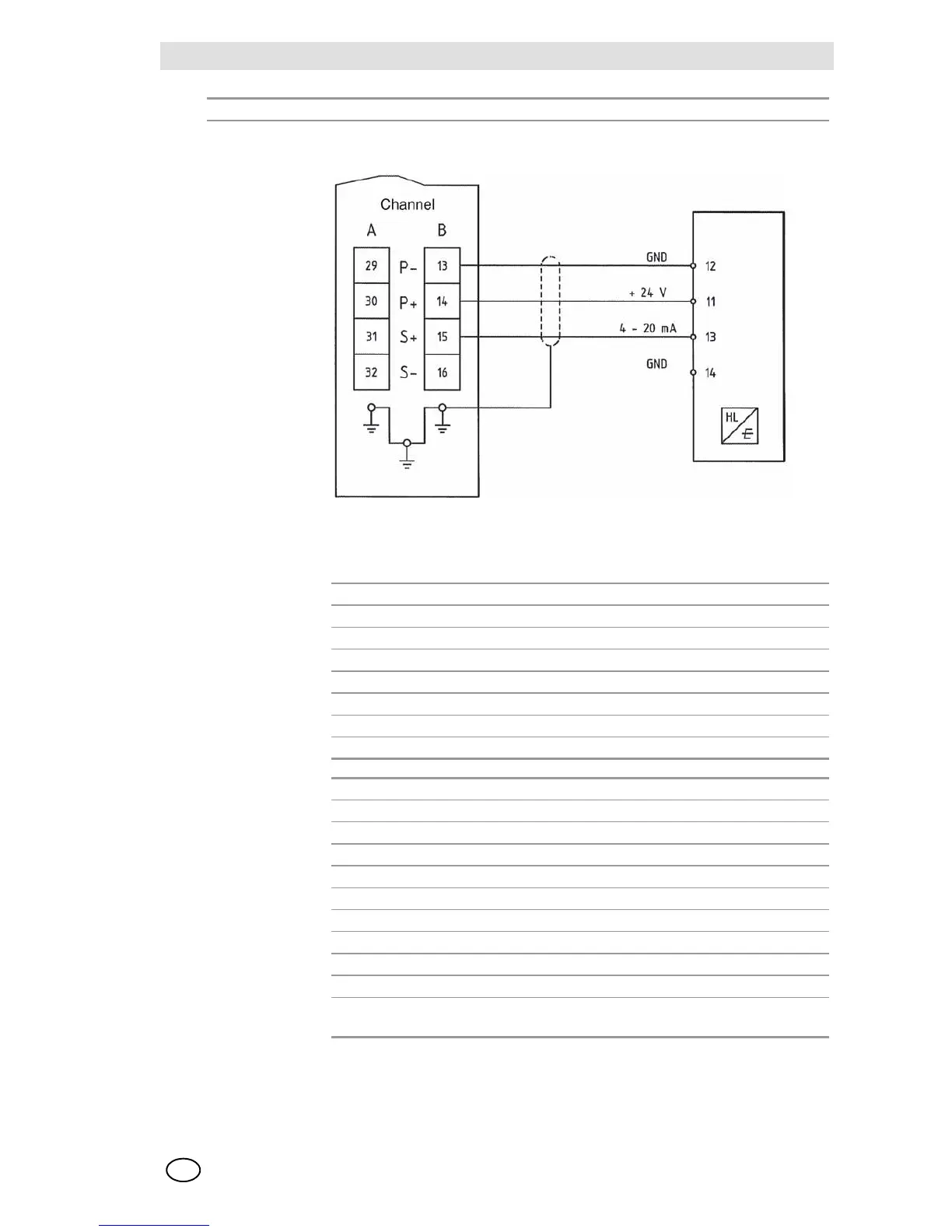

9010/20 LCD Sensor data sheet DF-8603/[DF-8601] Part No.: 10044123
Terminal Block
9010/9020 Sensor Type DF-8603
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: semiconductor/active/3-wire/4–20 mA/current source
Connection data: Supply Voltage: 16–32 V DC
Maximum current draw: 120 mA
Connection cable: 3-lead, 80 % shielded
Maximum resistance: 200 Ohm
Maximum cable length: 1.000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 6 – 12 mm
Permitted lead cross-section: 0.5 – 2.5 mm
2
Cable entry: M20 x 1.5
Conditions for
use:
Assembly: Wall-mounted
Protection: IP 54 to EN 60529
Explosion protection: Ex II 2G EEx d m e ib IIC T6
Approvals: DMT 99 ATEX E021X
Temperature: -20 °C to +40 °C
Humidity: 20–95 % relative humidity; non-condensing
Pressure: 900 – 1,100 hPa
Weight: approx. 1.5 kg
Dimensions W x D x H: 150 mm x 88 mm x 158 mm
Housing material: Cast aluminium [polyester-coated]
Further details in the Operating and Maintenance Instructions
[Part No. 100 12 792]
