Control Unit Models 9010 LCD and 9020 LCD
78
Appendix
MSA
GB
9010/20 LCD Sensor data sheet DF-8401 Part No.: D0745720

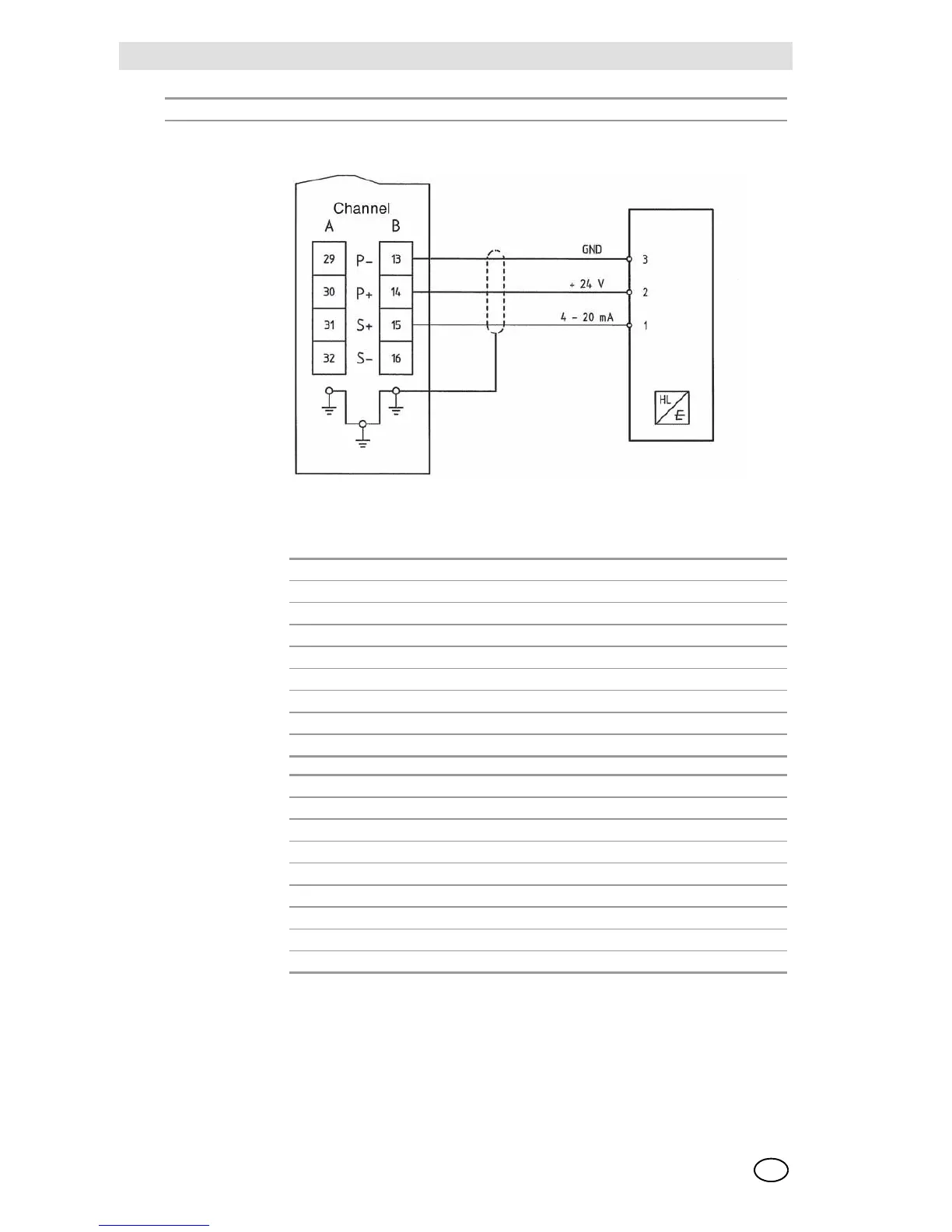

Terminal Block
9010/9020 Sensor Type DF-8401
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: semiconcuctor/active/3-wire/4–20 mA/current source
Connection data: Supply voltage: 16 – 32 V DC
Maximum current draw: 200 mA [switch-on current 400 mA, brief]
Power requirement: 5 W [excluding cable lengths]
Connection cable: 3-lead, 80 % shielded
Maximum resistance: 400 Ohm
Maximum cable length: 1.000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 – 12 mm
Permitted lead cross-section: 0.75 – 2.5 mm
2
Cable entry: M20 X 1,5
Conditions for
use:
Assembly: Wall-mounted
Protection: IP 54 to EN 60529
Explosion protection: None
Approvals: None
Temperature: –20 °C to +40 °C
Humidity: 5 – 90 % relative humidity; non-condensing
Pressure: 900 – 1,100 hPa
Weight: approx. 1.1 kg
Dimensions W x D x H: 120 mm x 82 mm x 130 mm
