4 Interfacing ProtoNode to Host OEM Device

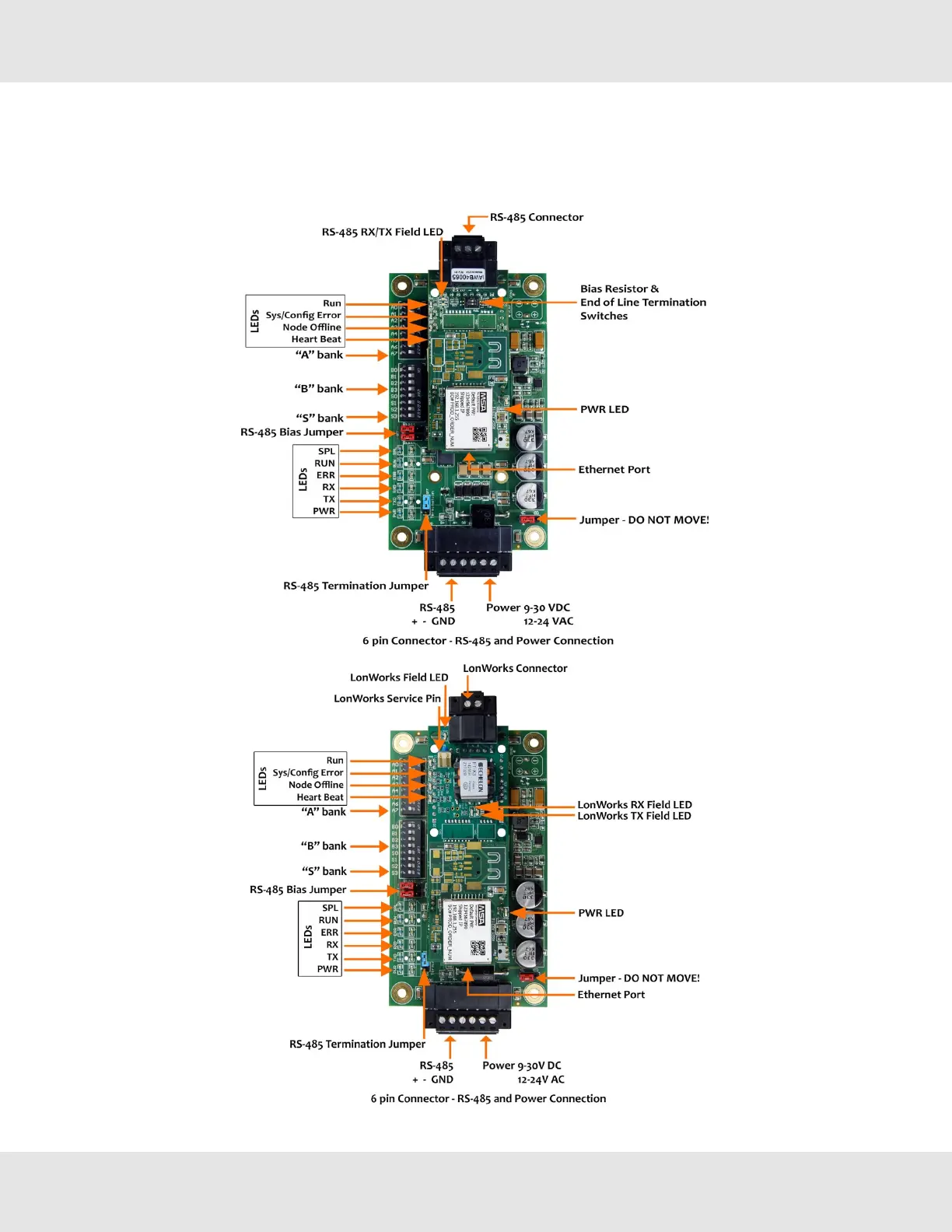

4.1 ProtoNode FPC-N34 and FPC-N35 Showing Connection Ports
NOTE: Other units have a similar layout, but the 6 pin port differs. See Section 3.1 Features for specifics.
ProtoNode Start-up Guide 12
