2. Tug on the shoulder
strap to test the attach-
m
ent.

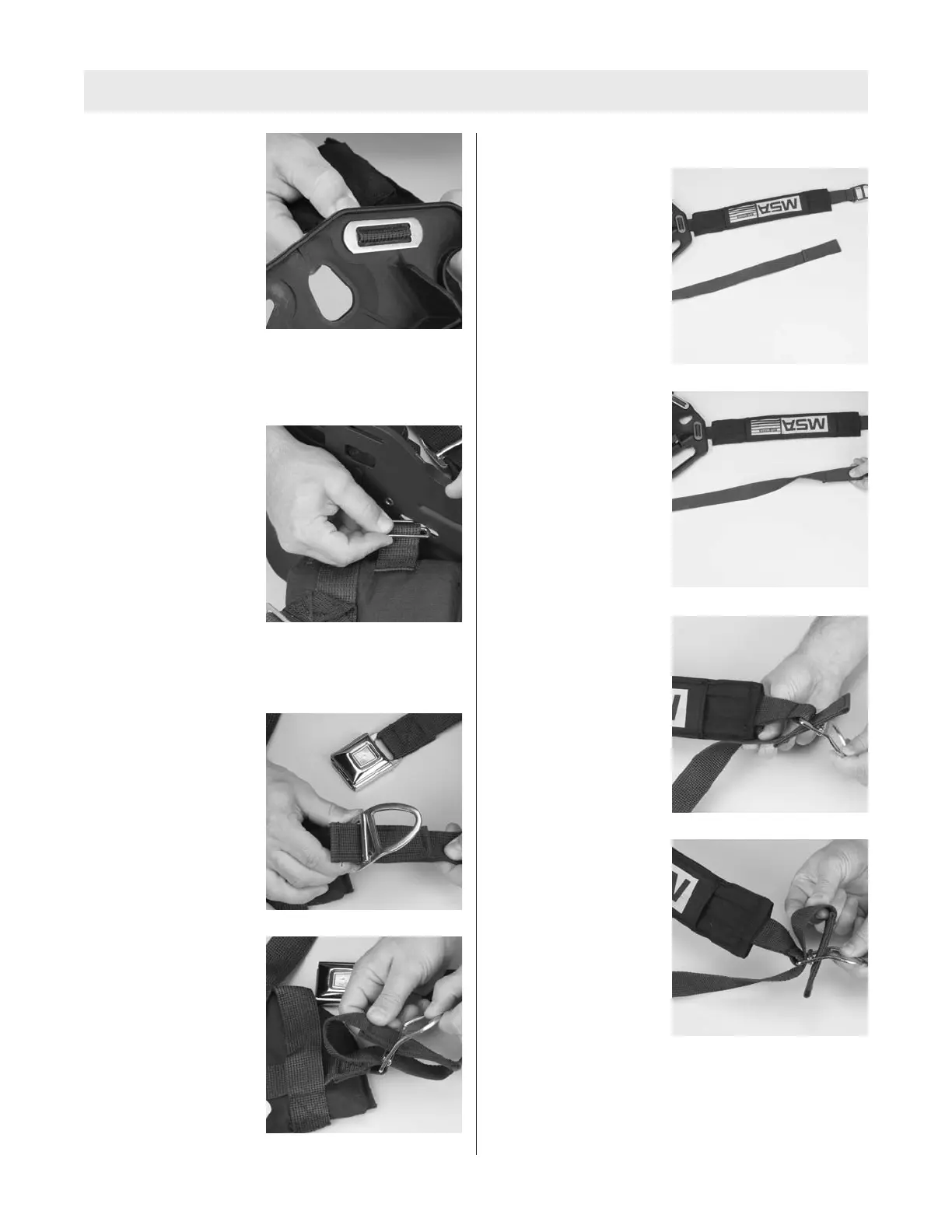

Attaching the waist belt to the Carrier
1. Install the tri-bars on the right and left pull straps of the
waist belt in to the lowest slots on the carrier.
Note: For Swiveling
Lumbar Pads or Rescue
Belts, the waist belt is part
of the lumbar pad assem-
bly. Attach the outer most
tri-bars to the lowest slots
on the carrier. Also attach
the tri-bars located in the
center of the lumbar pad
or rescue belt to two slots
located in the center of the
carrier.
Installing Double Pull Belts
1. Angle the tri-bar strap through the slot.
2. Tug on the belt to test the attachment.
3. From back to front, lace
the free end of the pull-
strap through the fric-
tion buckle.
4. Pass the strap over the
bar and back through
the buckle.
Attaching the waist belt pull straps to the shoulder
s
traps
1. Lace the free end of
t
he pull-strap through
the friction buckle.
a. Twist the strap clock-
wise one-half turn.
b. With the fold down,
pass the strap from
back to front through
the buckle.
c. Pass the strap over
the bar and back
through the buckle.
2. Repeat procedure for the other side.
Installing the Chest Strap (optional)
Connect male and female ends of chest strap.
TAL 808 (L) Rev. 1 - 10090073
14
