9
General Information
US
SM5000 Sampling Module - DC Pump Model

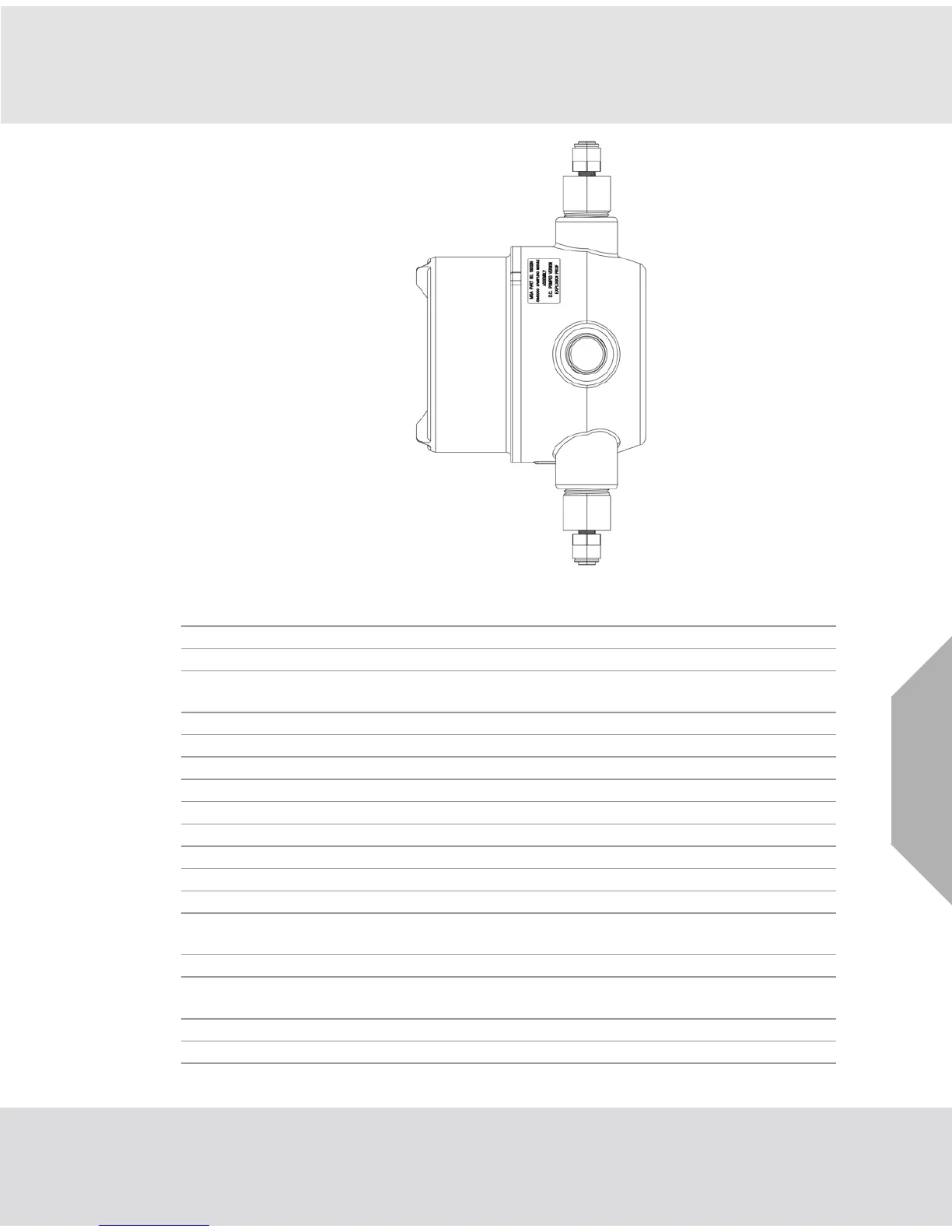

Fig. 3 Identification label
Tab. 1 Performance specifications for SM5000 Sampling Module - DC Pump Model
Maximum power consumption 8.5 watts at 9 to 30 VDC
Cable requirements Four-conductor, shielded, 18 AWG (typical)
Sample transport time
30 seconds at 0.5 LPM with 50 feet (15.25 meters) of
.180 (4.57 mm) ID sample tubing
Nominal sample flow rate 2 CFH (1 LPM)
Minimum sample flow rate 1 CFH (.500 LPM)
Maximum sample tubing length 100 feet (30 meters)
Maximum exhaust tubing length 20 feet (6 meters)
Inlet fitting 1/4" (6.35 mm) OD tube fitting
Exhaust fitting 1/4" (6.35 mm) OD tube fitting
Calibration fitting 1/4" (6.35 mm) OD barbed fitting
Overall dimensions 9" x 6" x 5" (228.5 cm x 152.4 cm x 127 cm)
Weight 4.5 lbs. (2 kg)
Rating
Explosion-proof enclosure, Class I, Groups A, B, C
and D, Division 1, Hazardous Locations
Electrical entry 3/4-14 NPT
Flow failure relay
SPDT at 0.6 Amps, 125 Volts AC or 110 Volts DC
at 2.0 Amps, 30 Volts DC
Temperature range -20°C to 55°C (-4 to 122°F)
Humidity 15 to 95% RH, non-condensing
