General Information
US
SM5000 Sampling Module - DC Pump Model

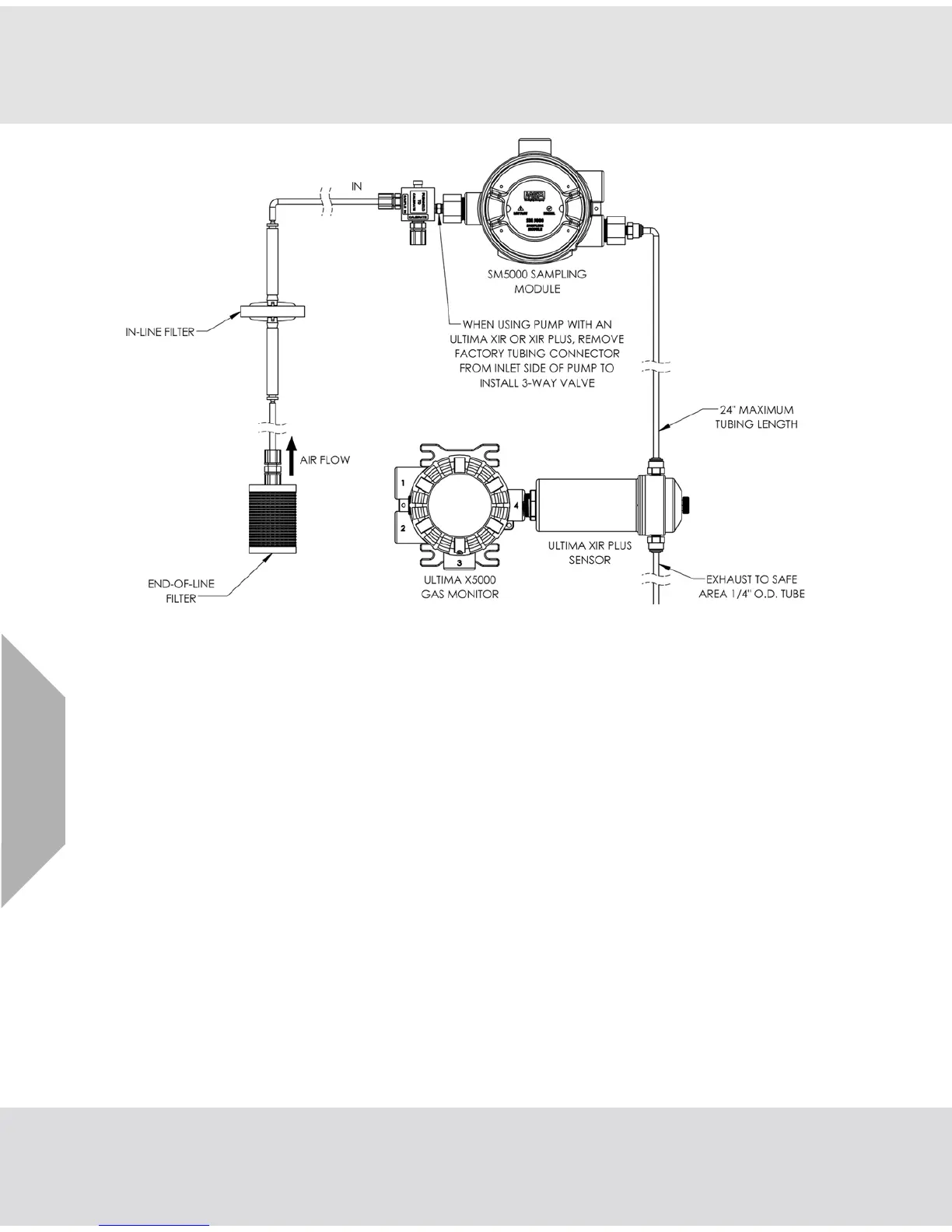

Fig. 2 Sampling module installation with Ultima XIR PLUS sensor
1.1.2 Unpacking Unit
Carefully unpack your Pump Sampling Module from shipping carton(s). Compare enclosed items with the
packing list to ensure all parts ordered were received; contact shipper or carrier if discrepancies exist.
Each Pump Sampling Module package contains:
• Pump Sampling Module
• Tubing and in-line filter
• End-of-line filter
• Instruction manual
1.1.3 Unit Identification
There is one possible Pump Sampling Module configuration:
• Explosion-proof (P/N 10043264) unit
Reference the identification label located on the side of the unit (see Fig. 3). See Tab. 1 for unit specifica-
tions.
