MSI 694 MASTER - Case Connector: JFP1

CHAPTER 2 HARDWARE INSTALLATION
2-8

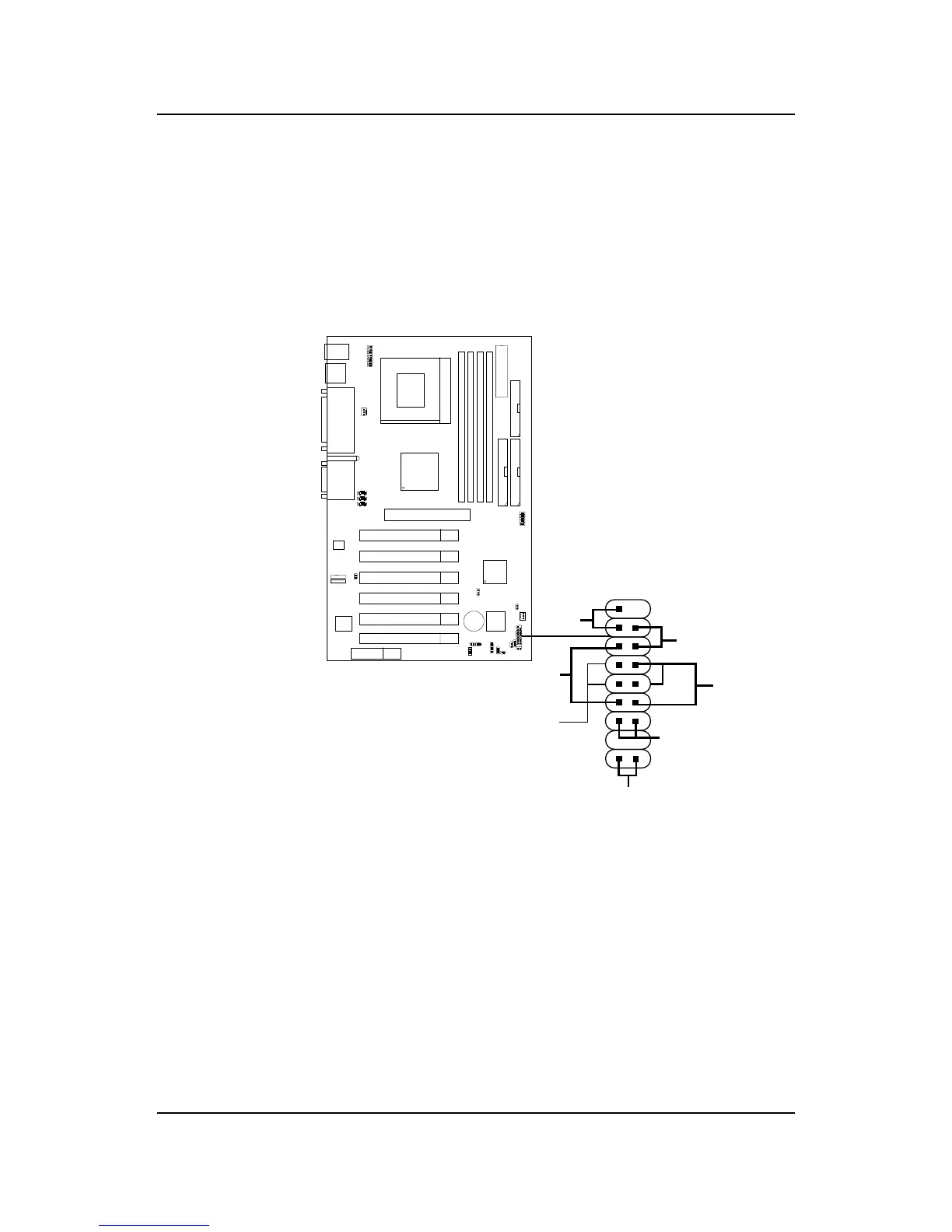

Case Connector: JFP1
The Keylock (reserved), Power Switch, Reset Switch, Power LED, Speaker,
and HDD LED are all connected to the JFP1 connector block.
JFP1
Power
Switch
Power LED
+
Reset
Switch
HDD
LED
+
Speaker
Buzzer
14
15
Keylock
Dual
Color
LED
Single
Color
LED
