CHAPTER 2 HARDWARE INSTALLATION
2-21

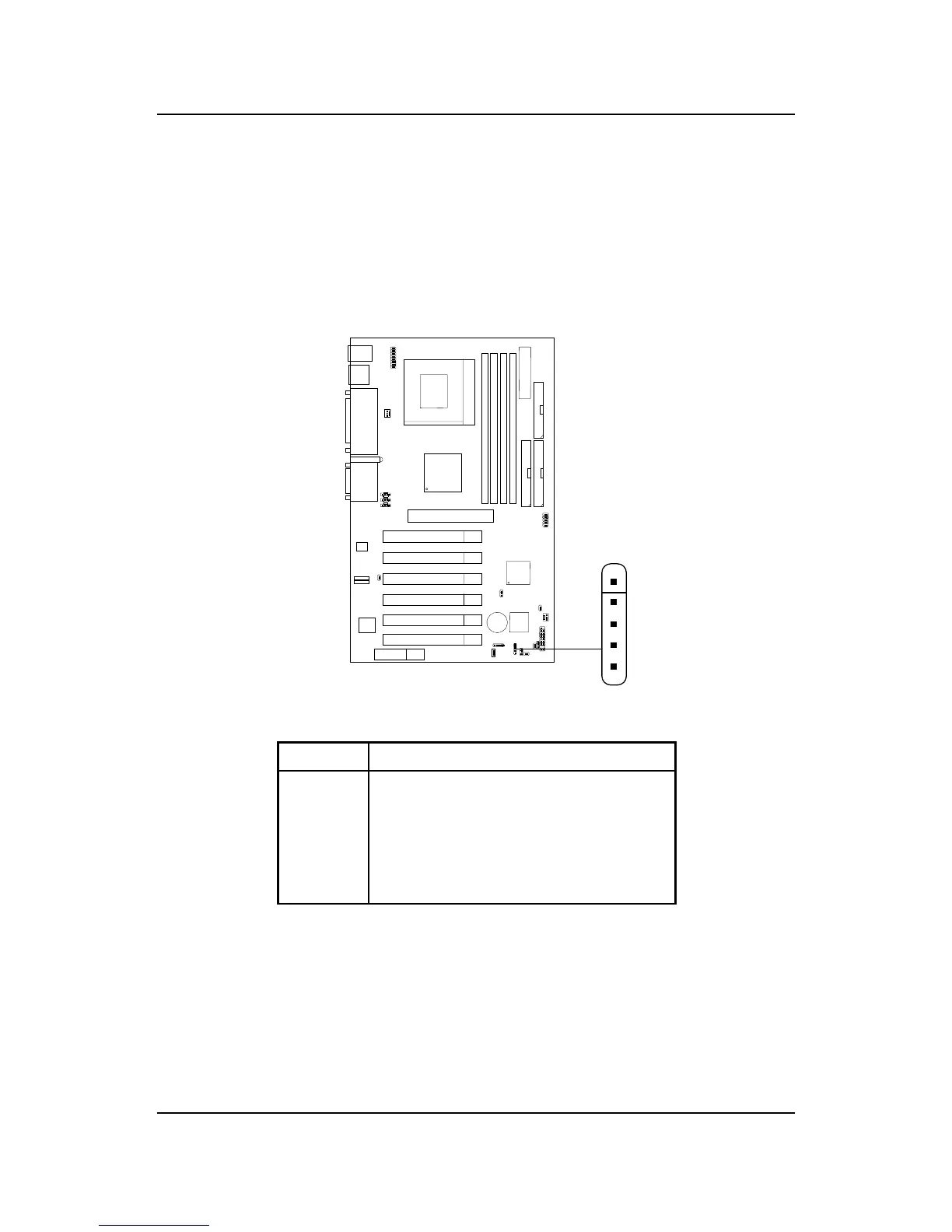

Modem Wake Up Connector: JMDM1
The JMDM1 connector is used for Modem add-on card that supports the
Modem Wake Up function.
Note: Modem wake-up signal is active “low”.
PIN SIGNAL
1NC
2 GND
3 MDM_WAKEUP
4NC
5 5VSB
Note: To be able to use this function, you need a power supply that
provide enough power for this feature.
(Power supply with 750mA 5V Stand-by)
JMDM1
1
5
