Wake-Up on LAN Connector: JWOL1
The JWOL1 connector is use with LAN add-on cards that supports Wake
Up on LAN function. To use this function, set the “Wake-Up on LAN” to
enable located at the BIOS Power Management Setup.
PIN SIGNAL
1 5VSB
2 GND
3 MP_WAKEUP
Note: LAN wake-up signal is active “high”.
Note: To be able to use this function, you need a power supply that
provide enough power for this feature.
(Power supply with 750mA 5V Stand-by)

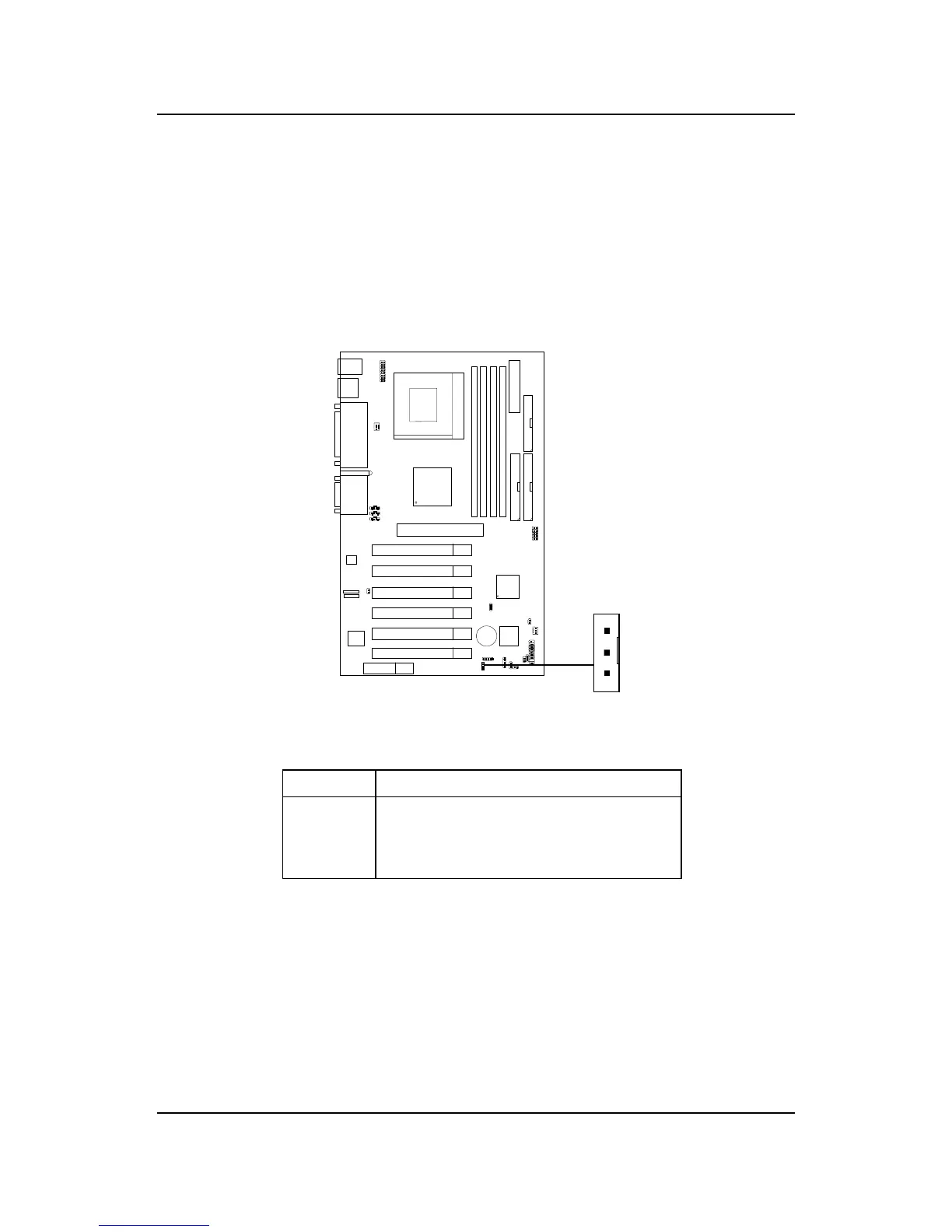

JWOL1
1
3
