MSI 694 MASTER - Parallel Port Connector: LPT1

CHAPTER 2 HARDWARE INSTALLATION
2-16

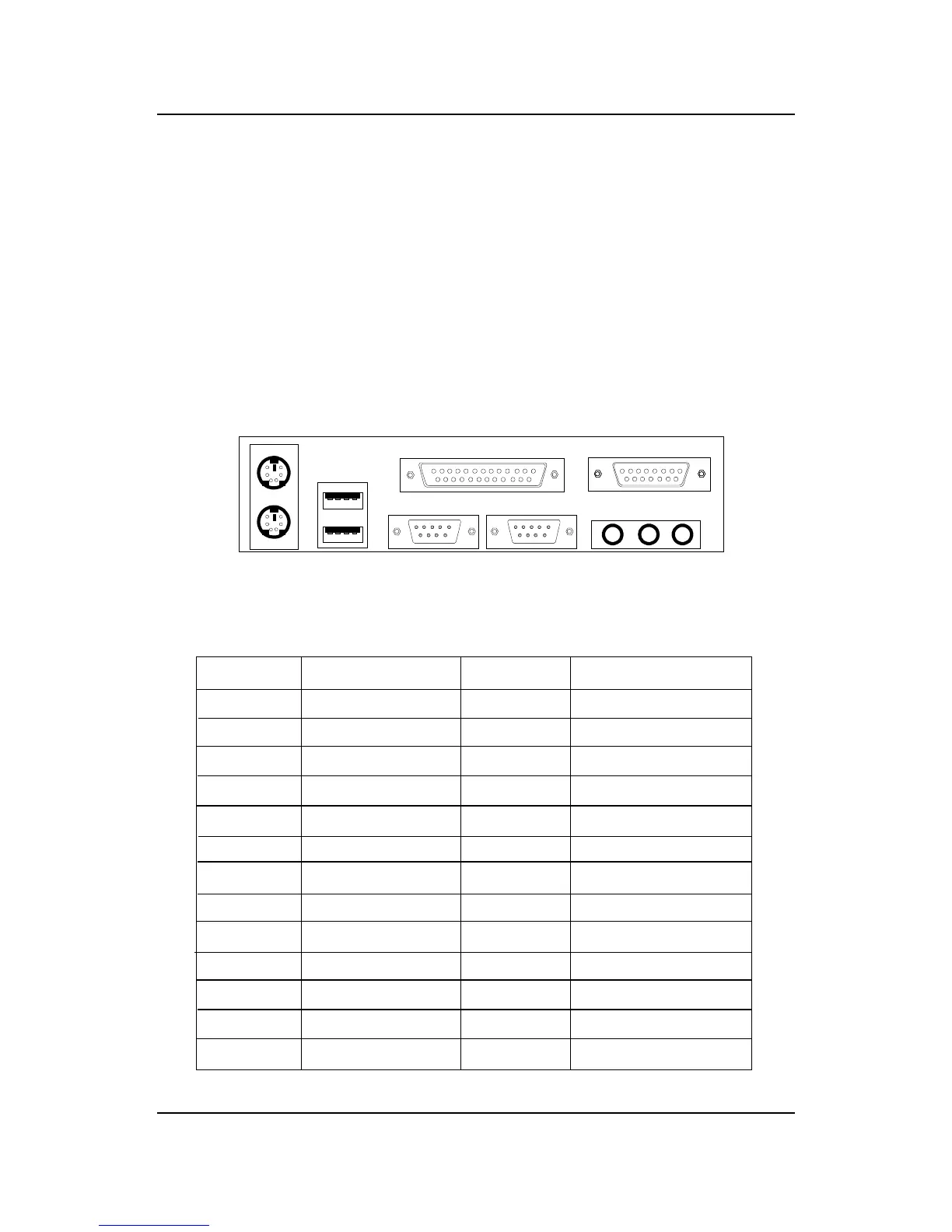

Parallel Port Connector: LPT1
The mainboard provides a 25 pin female centronic connector for LPT. A
parallel port is a standard printer port that also supports Enhanced Parallel
Port (EPP) and Extended capabilities Parallel Port (ECP). See connector and
pin definition below:
PIN SIGNAL PIN SIGNAL
1 STROBE 14 AUTO FEED#
2 DATA0 15 ERR#
3 DATA1 16 INIT#
4 DATA2 17 SLIN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SELECT
PIN DEFINITION
LPT 1
13
Parallel Port (25-pin Female)
1
25
14
