CHAPTER 2 HARDWARE INSTALLATION
2-35

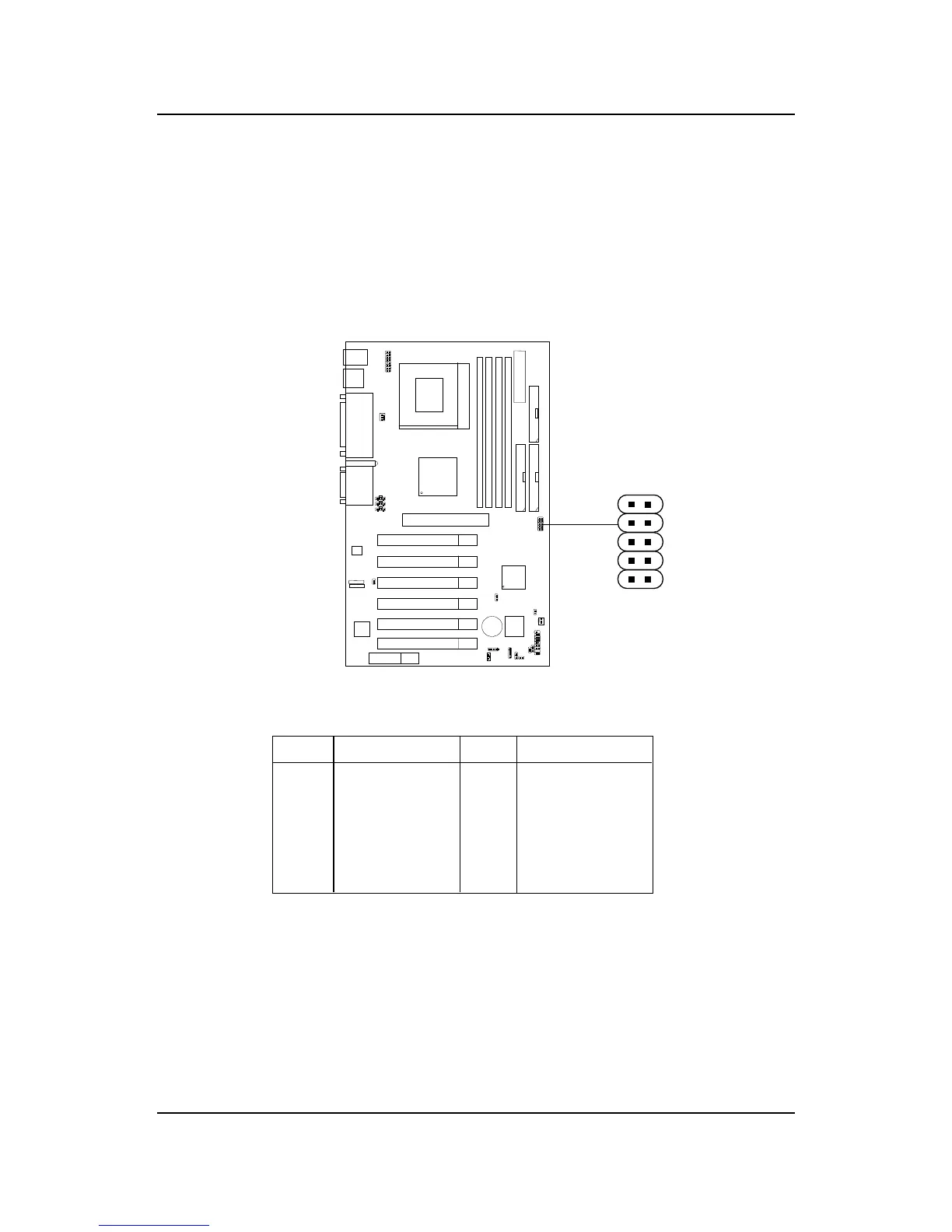

USB Front Connector: USB2
The mainboard provides a front Universal Serial Bus connector. This is an
optional USB connector for Front Panel.
USB2
Pin Description Pin Description
1 VCC 6 USBD2+
2 GND 7 GND
3 USBD3- 8 USBD2-
4 GND 9 GND
5 USBD3+ 10 VCC
1
2
9
10
