MSI H61MA-E35 (B3) - Hardware Audio Defaults; 2 and 4-Channel Speaker Layouts

Realtek Audo
MS-7740
Appendx A
A-5
Realtek Audo
MS-7740
Appendx A
Hardware Default Settng
The followng dagrams are audo back panel default settng.

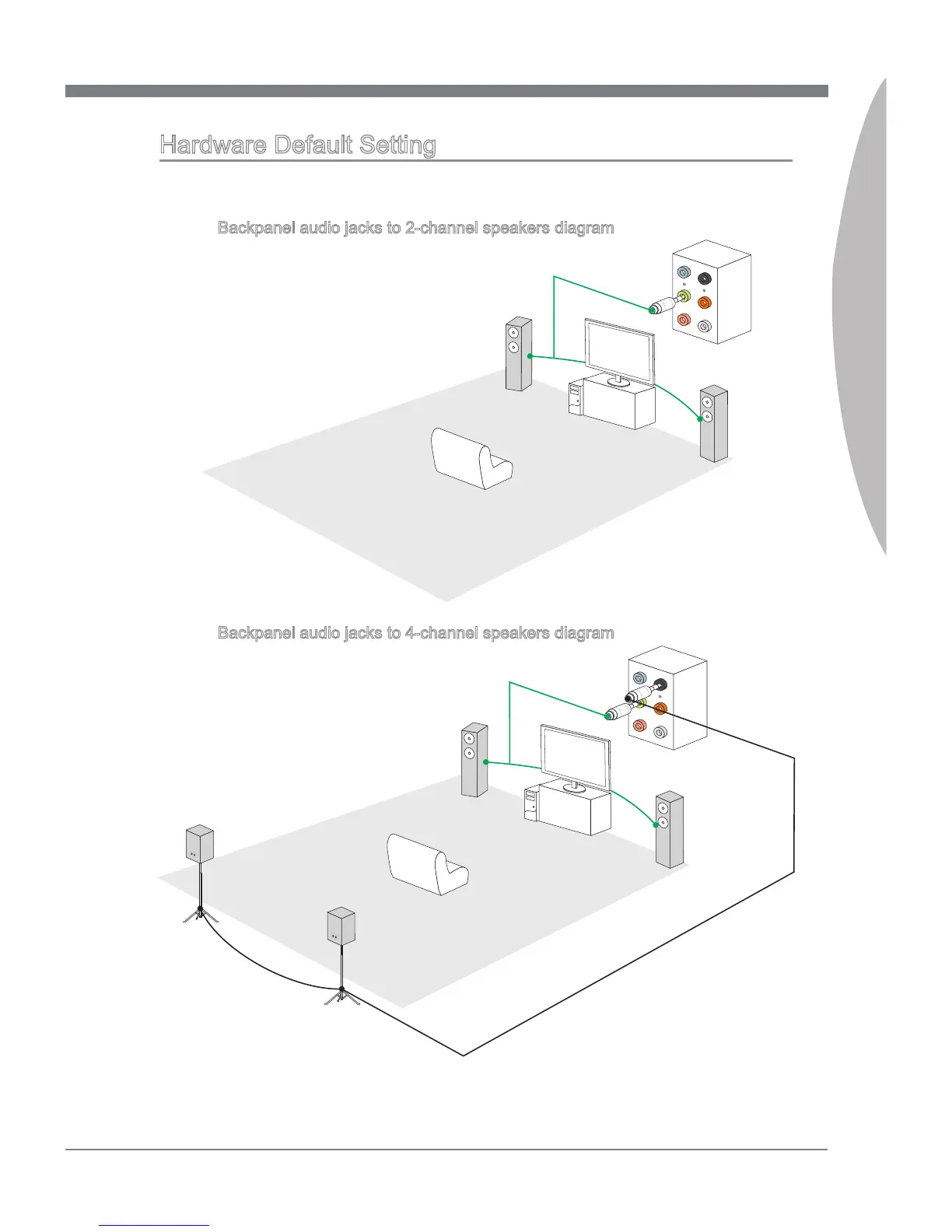

Backpanel audo jacks to 2-channel speakers dagram
Front
Backpanel audo jacks to 4-channel speakers dagram
Rear
Front
■
■
