MSI H67MS-E33 series - Quick Components Guide

2-2
Hardware Setup
MS-7680
Chapter 2
Hardware Setup
MS-7680
Chapter 2

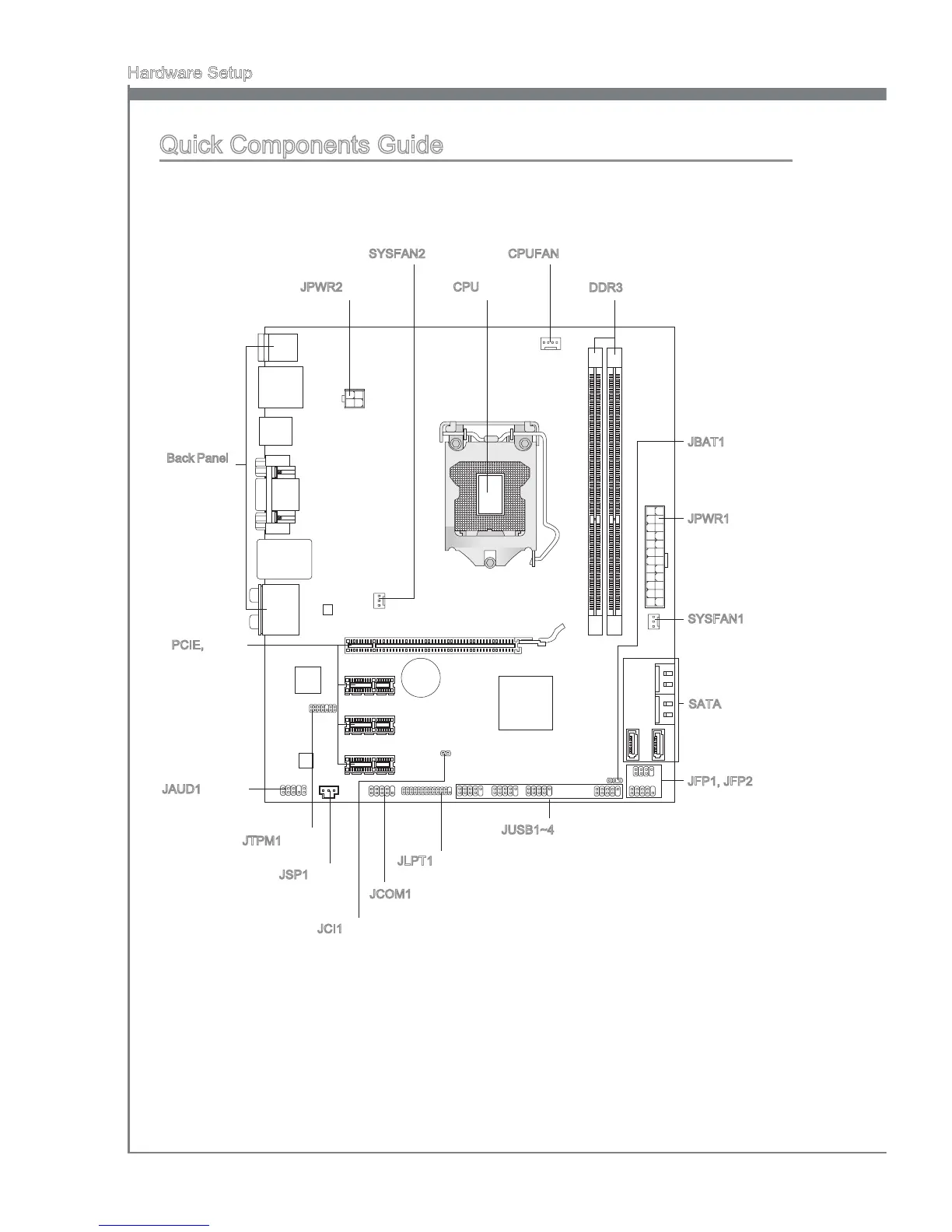

Quck Components Gude
Back Panel,
p.2-11
CPU, p.2-4
CPUFAN, p.2-14
DDR3, p.2-8
JPWR2, p.2-10
PCIE, p.2-20
SYSFAN1, p.2-14
SYSFAN2, p.2-14
JAUD1, p.2-15
JSP1, p.2-16
JTPM1, p.2-17
JCI1, p.2-18
JBAT1, p.2-19
JUSB1~4, p.2-15
JFP1, JFP2, p.2-14
SATA, p.2-13
JPWR1, p.2-10
JCOM1, p.2-16
JLPT1, p.2-18
