30
Vue d’ensemble des composants
Important
Le connecteur JRGB supporte des rubans LED RGB (12V / G / R / B) de type 5050
d’une longueur de 2 mètres maximum avec une puissance nominale maximale de 3A
(12V).
Avant d’installer ou de retirer le ruban LED RGB, veillez à toujours éteindre
l’alimentation et à débrancher le câble d’alimentation de la prise électrique.
Veuillez utiliser un logiciel MSI dédié pour contrôler le ruban d’extension LED.

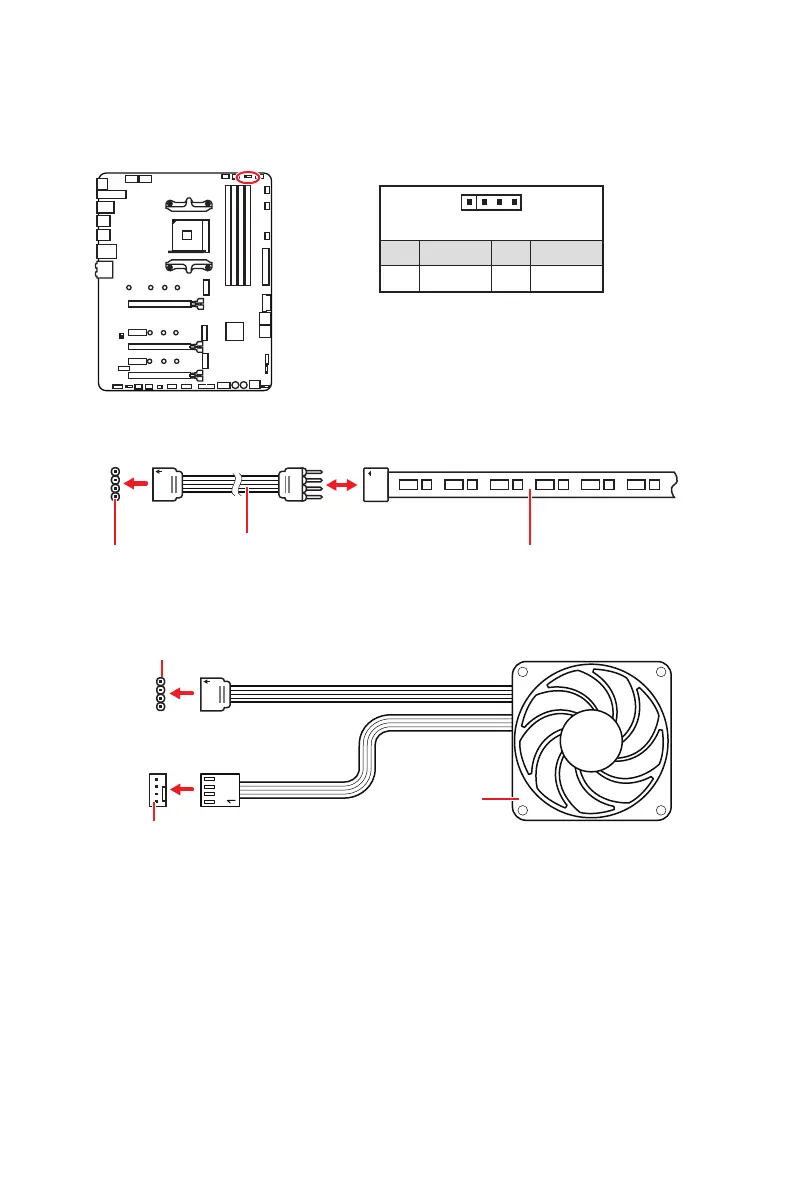

JRGB1 : Connecteur LED RGB
Le connecteur JRGB vous permet de connecter un ruban LED RGB de type 5050 12V.
1
G
R
B
Connecteur
JRGB
Câble d’extension
RGB
Ruban LED RGB de type
5050, sortie 12V
1
1 +12V 2 G
3 R 4 B
Connexion du ruban LED RGB
1
1
G
R
B
Connecteur JRGB
Connecteur de ventilateur système
Connexion du ventilateur LED RGB
Ventilateur LED
RGB
