Übersicht der Komponenten
JCORSAIR1: CORSAIR Anschluss
Mit dem JCORSAIR1 Anschluss können Sie CORSAIR einzeln adressierbare RGB-LED-
Strips (5 V) oder CORSAIR RGB LED Lüfter mit dem CORSAIR-Lüfter-Hub verbinden.
Nach ordnungsgemäßem Anschluss können Sie die MSI-Software zur Steuerung der
CORSAIR RGB LED-Streifen und Lüfter verwenden.
1
JCORSAIR1
1 +5V 2 Data
3 Ground
CORSAIR RGB Lüfteranschluss
Wichtig
Bitte verbinden Sie die Lüfter mit dem CORSAIR Lüfter-Hub in der Reihenfolge 1 >
2 > 3 > 4 > 5 > 6. Falls Sie den Lüfter in einer falschen Reihenfolge verbinden, wird die
Kommunikation gestört und die RGB-LEDs funktionieren nicht.
Die Anzahl der RGB-LED-Lüfter oder der RGB LED Lighting Node PRO Streifen kann
je nach Modell unterschiedlich sein. Um mehr Informationen zu erfahren, lesen Sie
bitte die Spezifikation des Motherboards.
CORSAIR RGB LED Lüfter und CORSAIR Lighting Node PRO Streifen können nicht
gleichzeitig genutzt werden.
JCORSAIR1 Anschluss
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
1
2
34
5
6

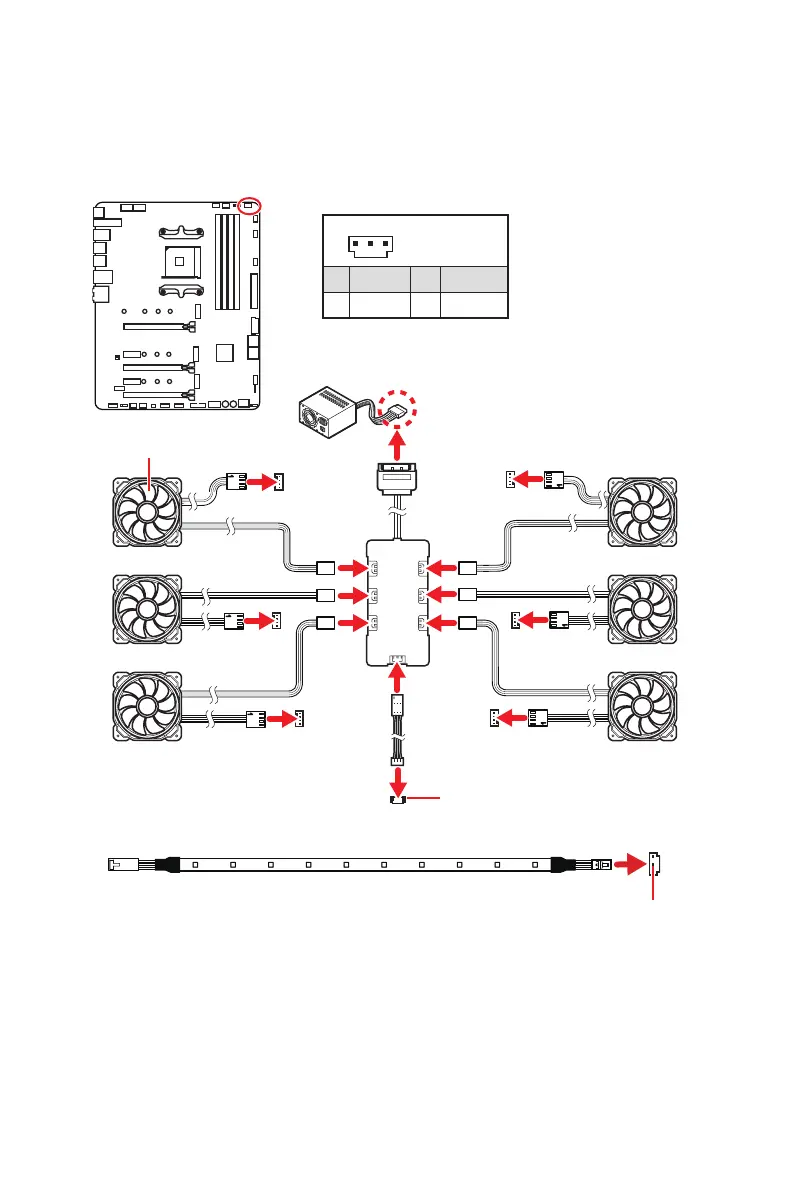

JCORSAIR1 Anschluss
SATA-Stromanschluss
CORSAIR Lighting Node PRO Streifen
CORSAIR RGB LED Lüfter
CORSAIR Lüfter-Hub
